A/T Fluid Temperature Sensor 2

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".

Check resistance between terminals.

CONNECTOR TERMINAL RESISTANCE SPECIFICATION

Name	Terminal	Temperature °C (°F)	Resistance (Approx.) (kΩ)
A/T fluid temperature sensor 2	1-2	0 (32)	10
		20 (68)	4
		80 (176)	0.5

If NG, replace the A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".

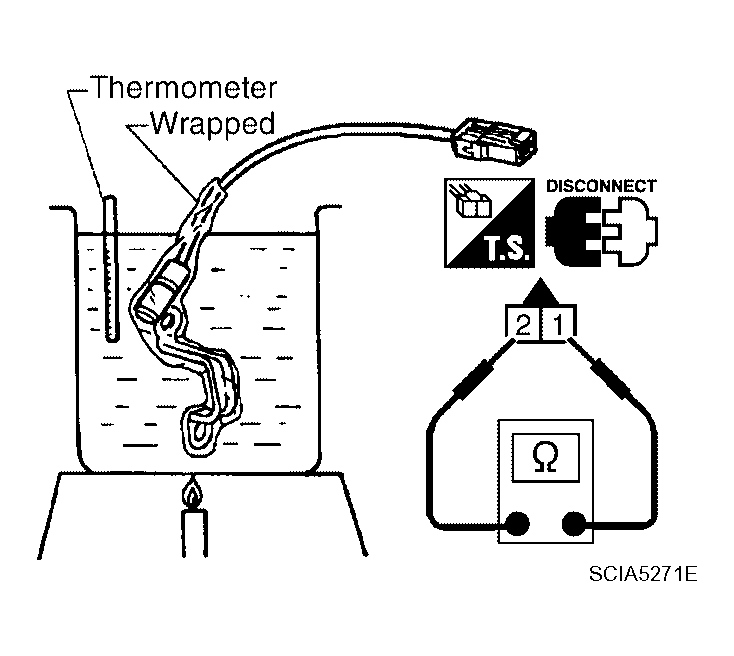

Fig 1: Identifying Resistance Between Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
