Drive Pinion Assembly

  1. Install pinion front and rear bearing outer races using drifts.

    Tool number A: ST37820000 ( - )

    CAUTION:
    • At first, using a hammer, tap bearing outer race until it becomes flat to gear carrier.
    • Do not reuse pinion front and rear bearing outer race.

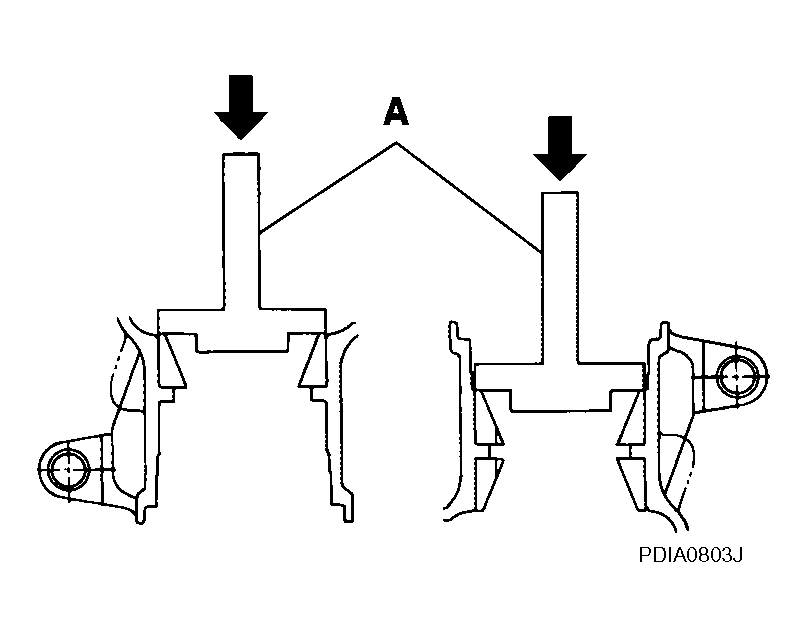

    Fig 1: Identifying Pinion Front And Rear Bearing Outer Races Using Drifts
    G04144438Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Temporarily install pinion height adjusting washer (1).

    When hypoid gear set has been replaced

    • Select pinion height adjusting washer. Refer to , "PINION GEAR HEIGHT ".

      When hypoid gear set has been reused

    • Temporarily install the removed pinion height adjusting washer or same thickness washer to drive pinion.

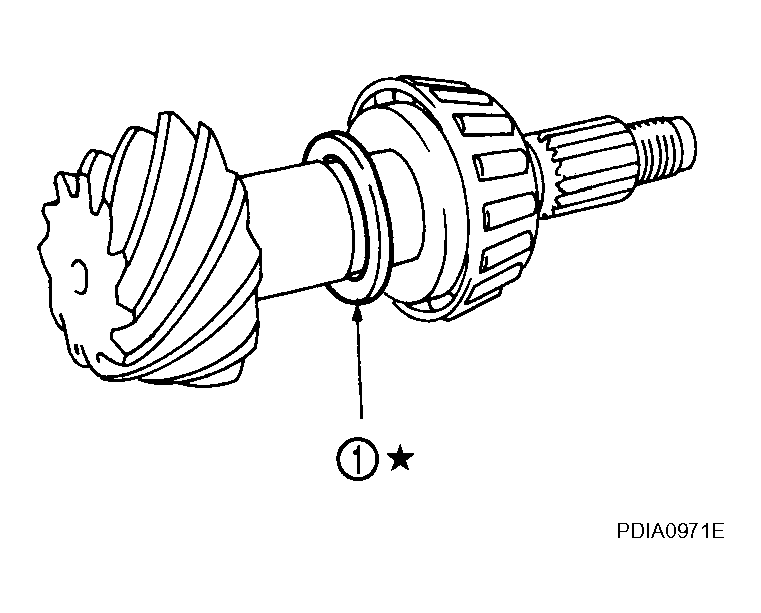

    Fig 2: Identifying Pinion Height Adjusting Washer
    G04144439Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install selected pinion height adjusting washer (2) to drive pinion. Press pinion rear bearing inner race (1) to it, using drift.

    Tool number A: ST30032000 (J-26010-01)

    CAUTION:
    • Pay attention to the direction of pinion height adjusting washer. (Assemble as shown in Fig 3 .)
    • Do not reuse pinion rear bearing inner race.

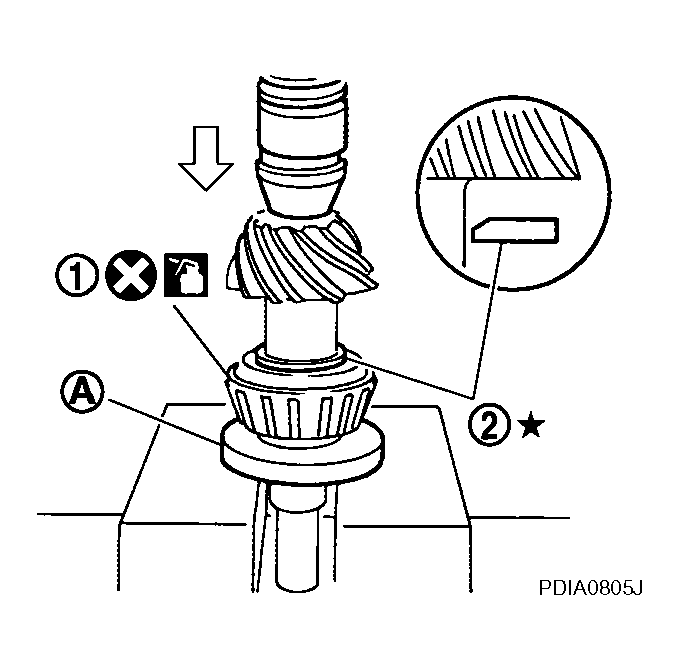

    Fig 3: Pressing Pinion Rear Bearing Inner Race
    G04144440Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Temporarily assemble removed drive pinion adjusting washer and drive pinion bearing adjusting washer or same thickness them to drive pinion.
  5. Apply gear oil to pinion rear bearing, and assemble drive pinion into gear carrier.
  6. Apply gear oil to pinion front bearing, and assemble pinion front bearing inner race to drive pinion assembly.
    CAUTION: Do not reuse pinion front bearing inner race.

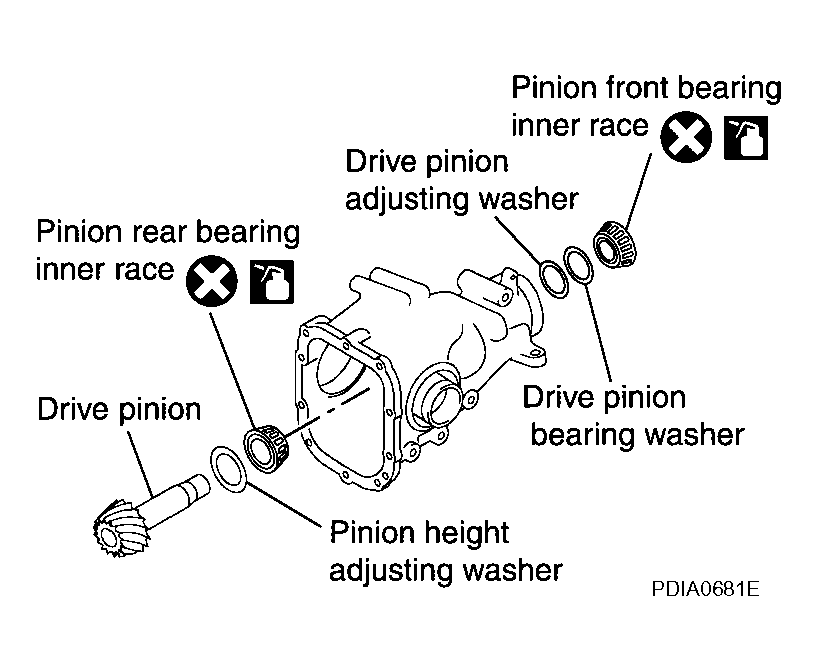

    Fig 4: Applying Gear Oil To Pinion Front Bearing And Rear Bearing
    G04144441Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Using suitable spacer (A), press the pinion front bearing inner race to drive pinion as far as drive pinion nut can be tightened.
  8. Adjust pinion bearing preload. If necessary, select the appropriate drive pinion adjusting washer and drive pinion bearing adjusting washer. Refer to , "PINION BEARING PRELOAD ".

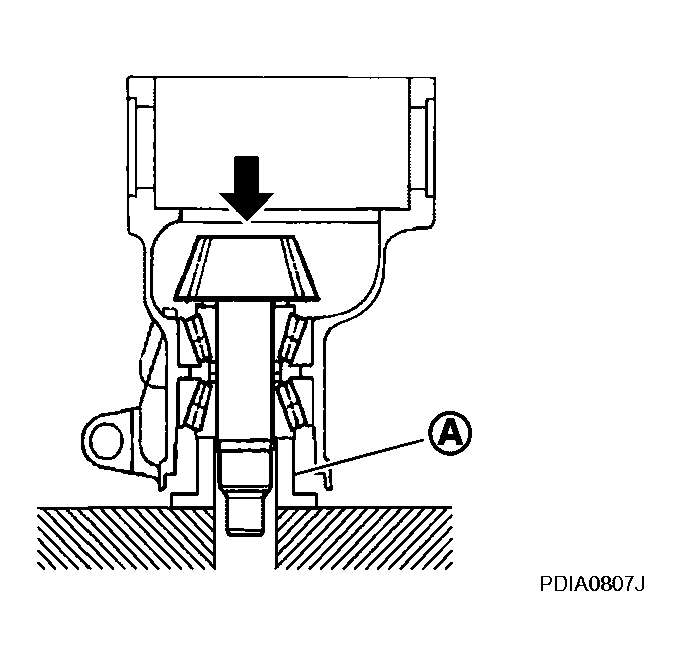

    Fig 5: Pressing Pinion Front Bearing Inner Race To Drive Pinion Using Suitable Spacer
    G04144442Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Using the drifts, install front oil seal as shown in Fig 6 .

    Tool number

    A: ST33400001 (J-26082)

    B: KV38102510 ( - )

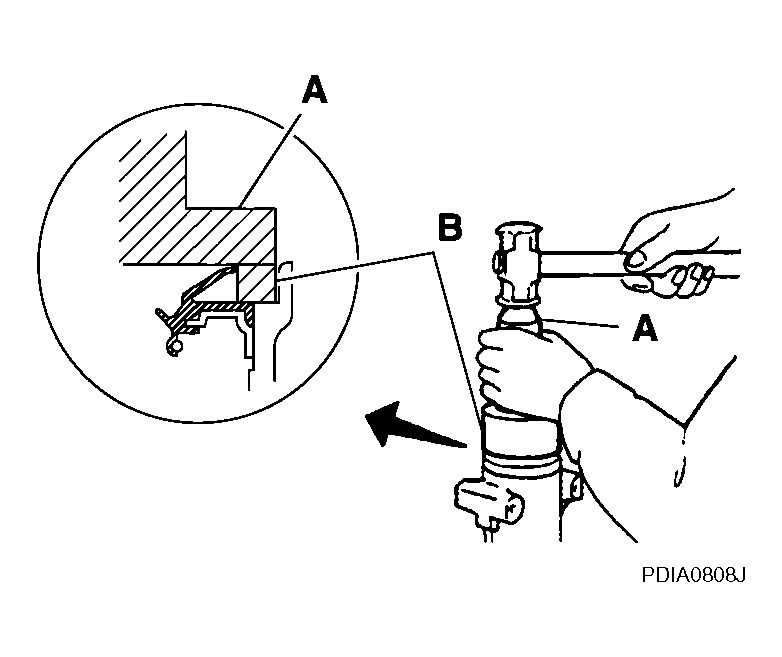

    Fig 6: Installing Front Oil Seal
    G04144443Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse oil seal.
    • When installing, do not incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
  10. Install companion flange (1).
    NOTE: When reusing drive pinion, align the matching mark (B) of drive pinion with the matching mark (A) of companion flange, and then install companion flange (1).

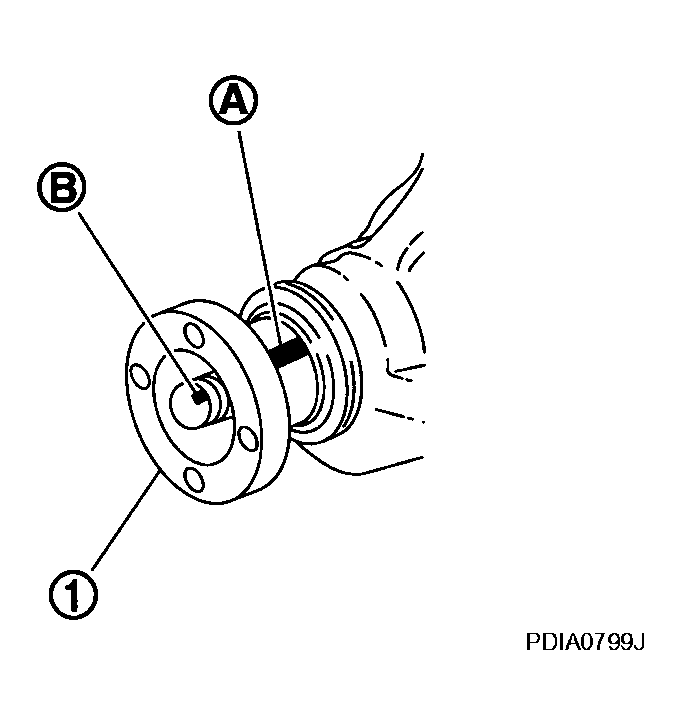

    Fig 7: Aligning Matching Mark Of Drive Pinion Of Companion Flange
    G04144444Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Apply anti-corrosion oil to the thread and seat of new drive pinion lock nut, and temporarily tighten drive pinion lock nut to drive pinion.
    CAUTION: Do not reuse drive pinion lock nut.
  12. Tighten to drive pinion lock nut, while adjust pinion bearing preload torque.

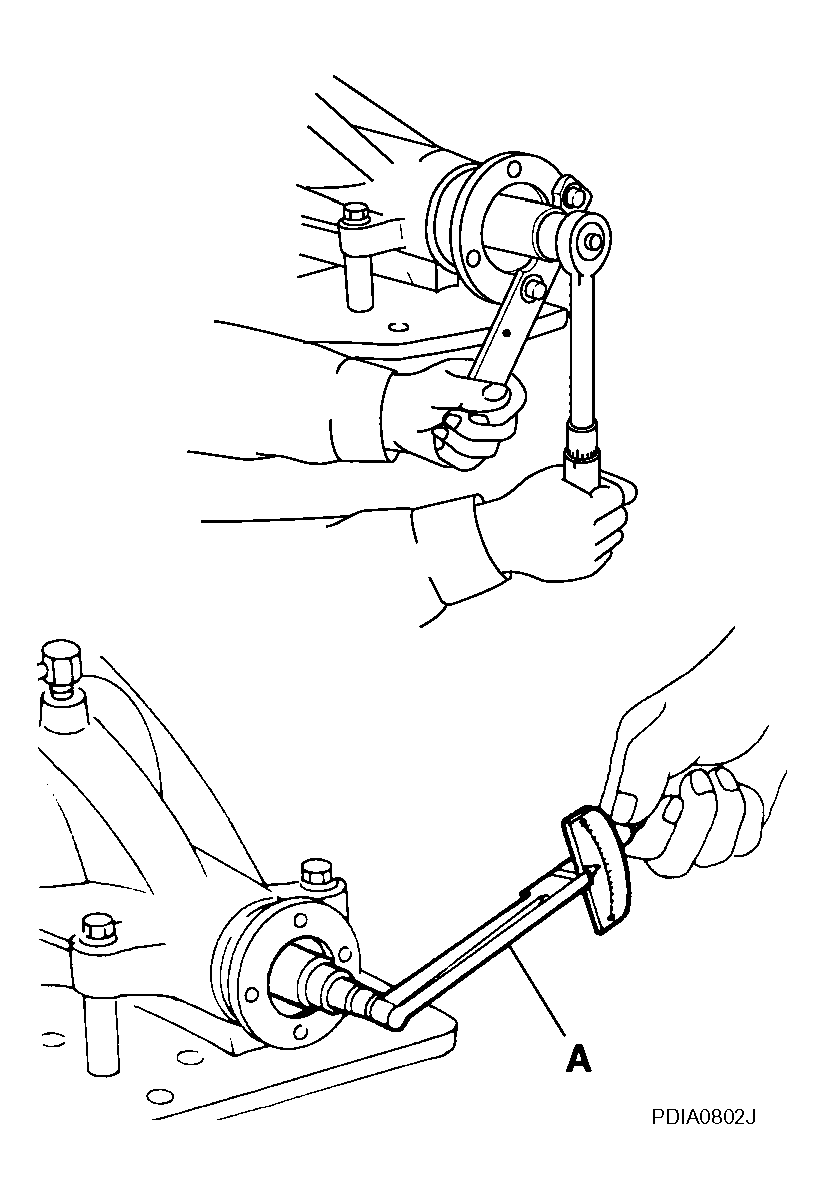

    Fig 8: Tightening Drive Pinion Lock Nut
    G04144445Courtesy of NISSAN MOTOR CO., U.S.A.

    Tool number A: ST3127S000 (J-25765-A)

    Drive pinion lock nut tightening torque: 127.4 - 245.0 N.m (13.0 - 25.0 kg-m, 94 - 181 ft-lb)

    Pinion bearing preload: 0.78 - 1.57 N.m (0.08 - 0.16 kg-m, 7 - 13 in-lb)

    CAUTION:
    • Adjust to the lower limit of the drive pinion lock nut tightening torque first.
    • After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.
  13. Install differential case assembly. Refer to , "DIFFERENTIAL ASSEMBLY ".
    CAUTION: Do not install carrier cover yet.
  14. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and companion flange runout. Refer to , "DRIVE GEAR RUNOUT ", , "TOOTH CONTACT ", , "BACKLASH ", , "COMPANION FLANGE RUNOUT ".

    Recheck above items. Readjust the above description, if necessary.

  15. Check total preload torque. Refer to , "TOTAL PRELOAD TORQUE ".
  16. Install carrier cover. Refer to , "DIFFERENTIAL ASSEMBLY ".
