Headlamp (For USA): Schematic

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

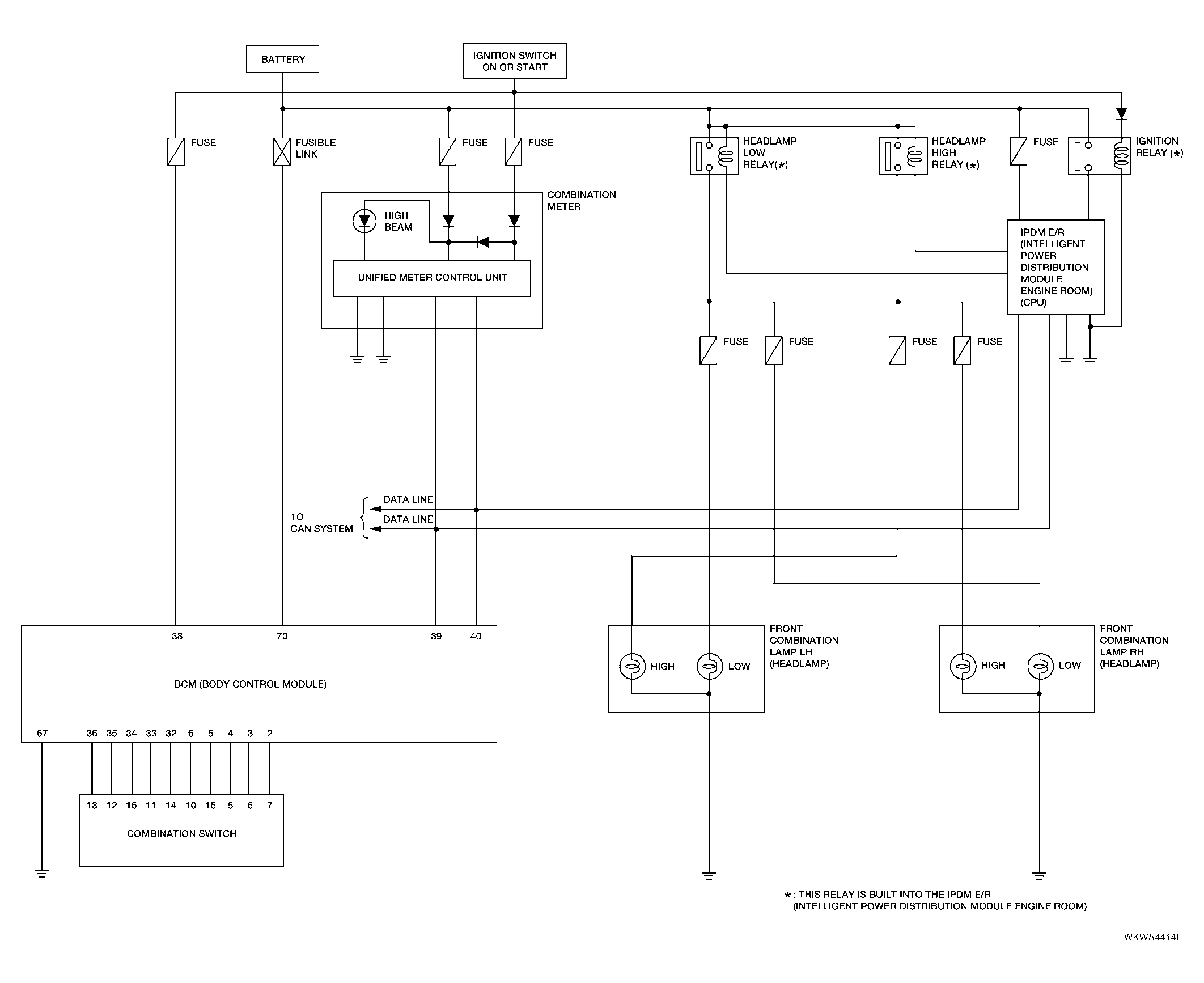

Fig 1: Schematic
G04206093Courtesy of NISSAN MOTOR CO., U.S.A.
