Disassembly and Assembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

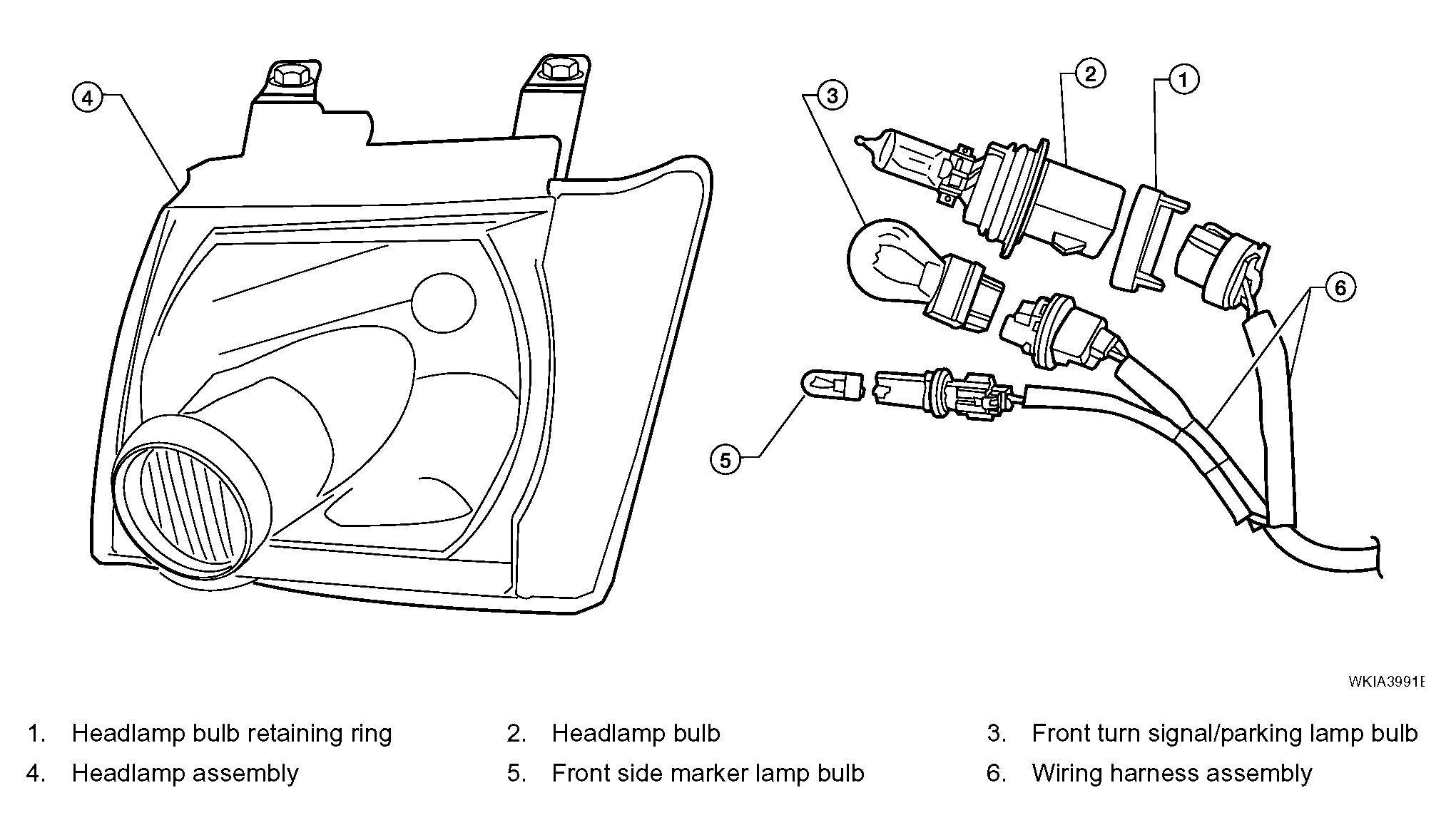

Fig 1: Disassembling/Assembling head lamp (For U.S.A.)
G04206129Courtesy of NISSAN MOTOR CO., U.S.A.
