System - Engine Mechanical & Other

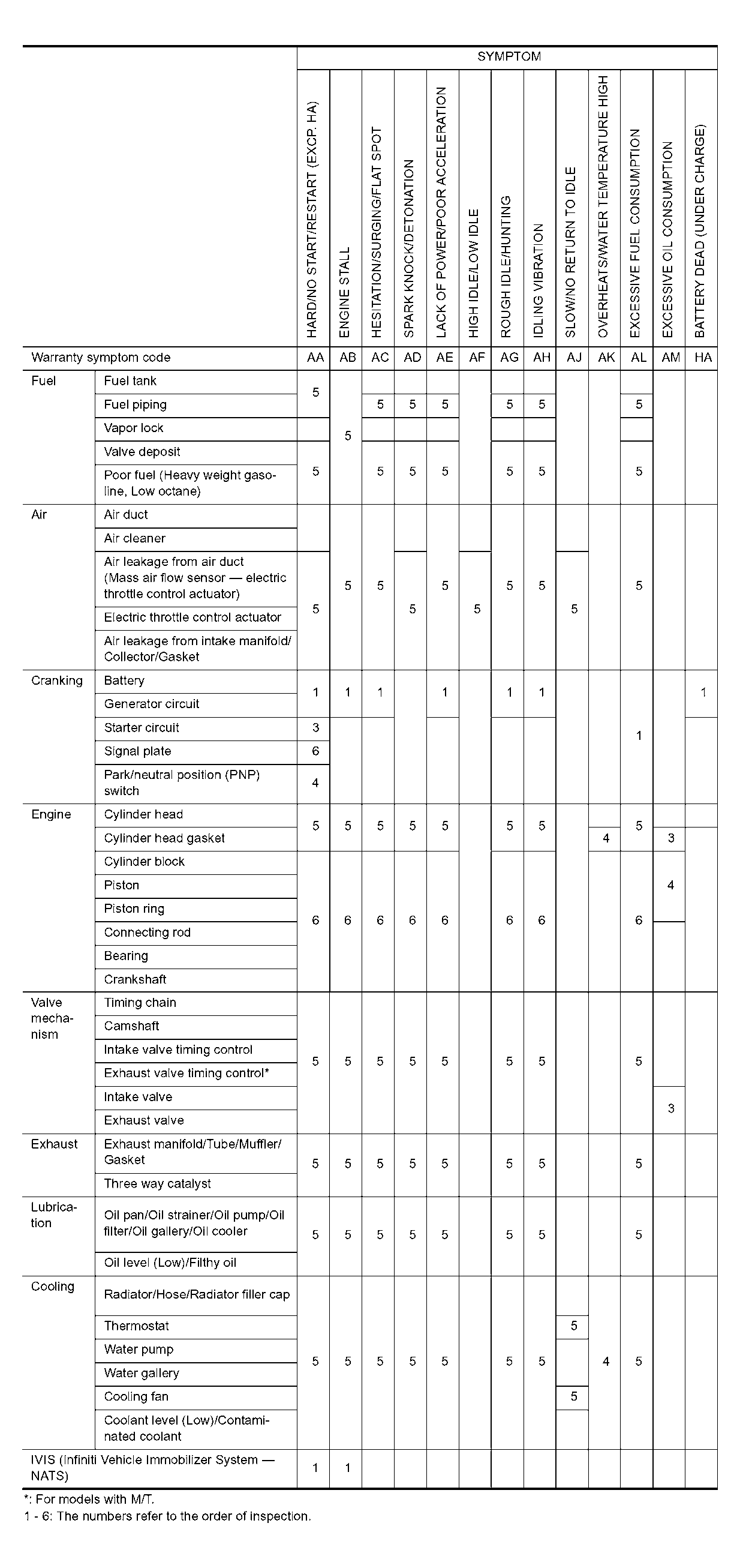

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other

G04119577

Courtesy of NISSAN MOTOR CO., U.S.A.
