DTC P2138 App Sensor: Wiring Diagram

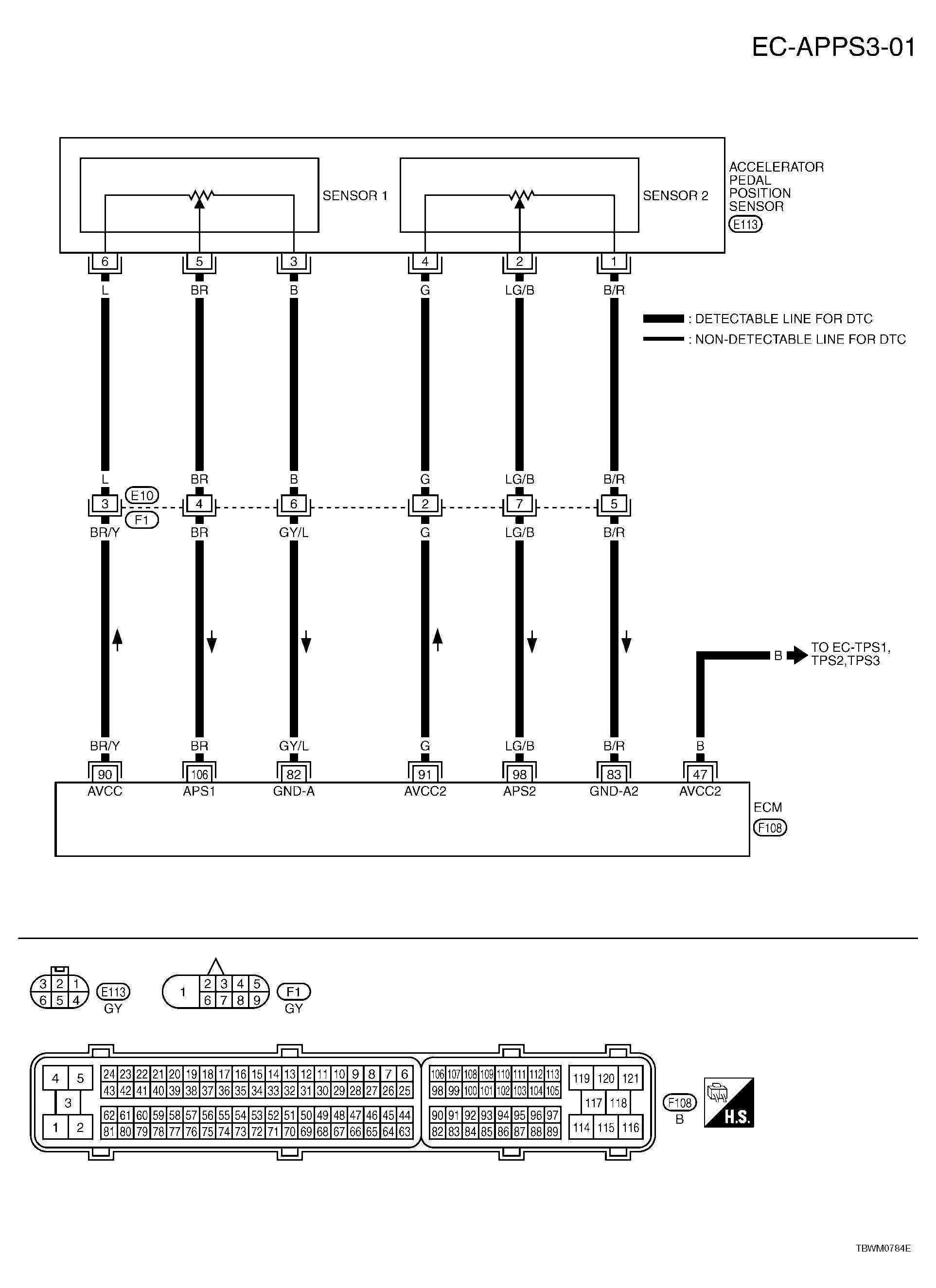

Fig 1: EC-APPS3-01 - Wiring Diagram
G04120246Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINALS INPUT/OUTPUT VOLTAGE REFERENCE

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
47 B Sensor power supply
(Throttle position sensor)		 [Ignition switch: ON]  Approximately 5V
82 GY/L Sensor ground
(Accelerator pedal position sensor 1)		 [Engine is running]
  • Warm-up condition
  • Idle speed
 Approximately 0V
83 B/R Sensor ground
(Accelerator pedal position sensor 2)		 [Engine is running]
  • Warm-up condition
  • Idle speed
 Approximately 0V
90 BR/Y Sensor power supply
(Accelerator pedal position sensor 1)		 [Ignition switch: ON]  Approximately 5V
91 G Sensor power supply
(Accelerator pedal position sensor 2)		 [Ignition switch: ON]  Approximately 5V
98 LG/B Accelerator pedal position sensor 2 [Ignition switch: ON]
  • Engine stopped
  • Accelerator pedal: Fully released
 0.15 - 0.60V
[Ignition switch: ON]
  • Engine stopped
  • Accelerator pedal: Fully depressed
 1.95 - 2.40V
106 BR Accelerator pedal position sensor 1 [Ignition switch: ON]
  • Engine stopped
  • Accelerator pedal: Fully released
 0.5 - 1.0V
[Ignition switch: ON]
  • Engine stopped
  • Accelerator pedal: Fully depressed
 3.9 - 4.7V
