Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two ground screws on the body. Refer to "GROUND INSPECTION ".

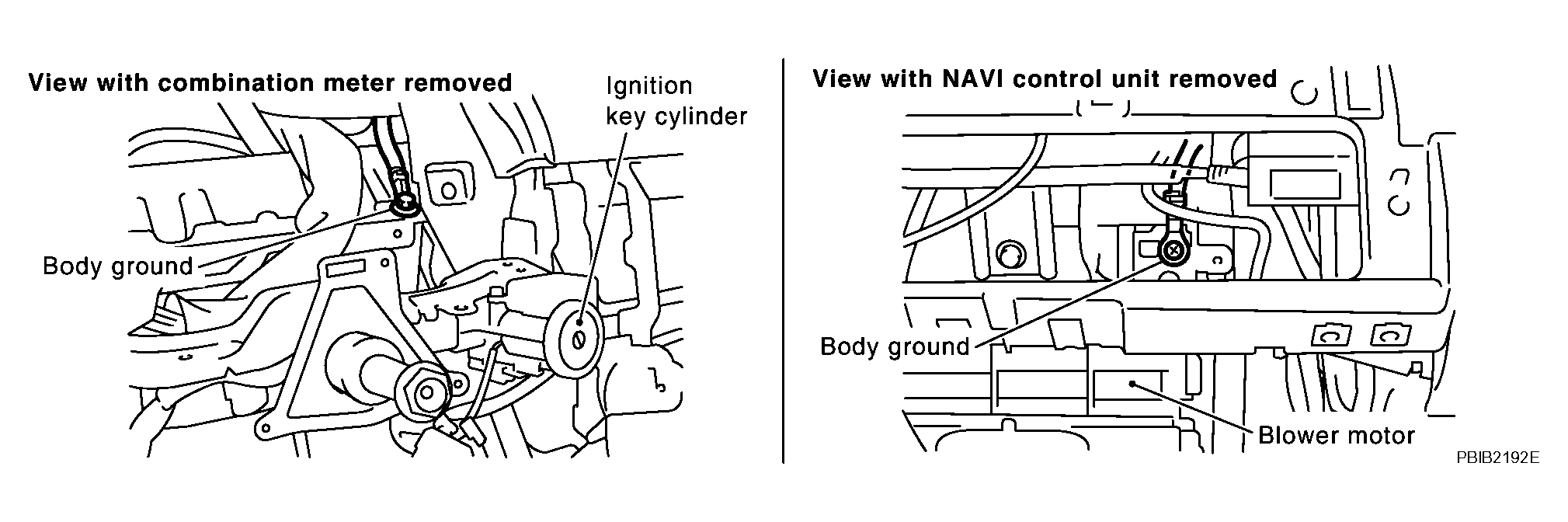

      Fig 1: Loosening Ground Screws On Body
      G04120112Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I
    1. Disconnect accelerator pedal position (APP) sensor harness connector.
    2. Turn ignition switch ON.

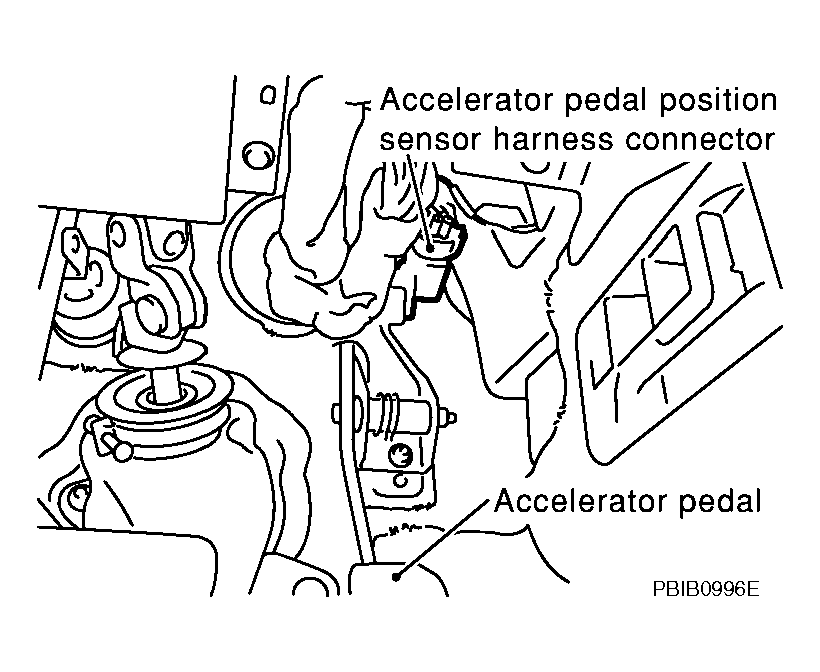

      Fig 2: Identifying Accelerator Pedal Position (APP) Sensor Harness Connector
      G04120113Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

      Fig 3: Identifying Voltage Between APP Sensor Terminal 6 And Ground
      G04120114Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  7.
    2. NG: GO TO 3.
  3. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between APP sensor terminal 6 and ECM terminal 90. Refer to WIRING DIAGRAM .

      Continuity should exist.

    OK or NG

    1. OK: GO TO 7.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E11, F2
    • Harness for open between ECM and APP sensor

      Repair open circuit.

  5. CHECK SENSOR POWER SUPPLY CIRCUITS

    Check harness for short to power and short to ground, between the following terminals.

    WIRING DIAGRAM INDEX

    ECM terminal Sensor terminal Reference Wiring Diagram
    48 EVAP control system pressure sensor terminal 3 WIRING DIAGRAM
    49 Refrigerant pressure sensor terminal 1 WIRING DIAGRAM
    68 PSP sensor terminal 1 WIRING DIAGRAM
    90 APP sensor terminal 6 WIRING DIAGRAM

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair short to ground or short to power in harness or connectors.
  6. CHECK COMPONENTS

    Check the following.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Replace malfunctioning component.
  7. CHECK APP SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO  9.
    2. NG: GO TO 8.
  8. REPLACE ACCELERATOR PEDAL ASSEMBLY
    1. Replace accelerator pedal assembly.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
    3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
    4. Perform "IDLE AIR VOLUME LEARNING ".

      INSPECTION END

  9. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    INSPECTION END
