Overall Sequence

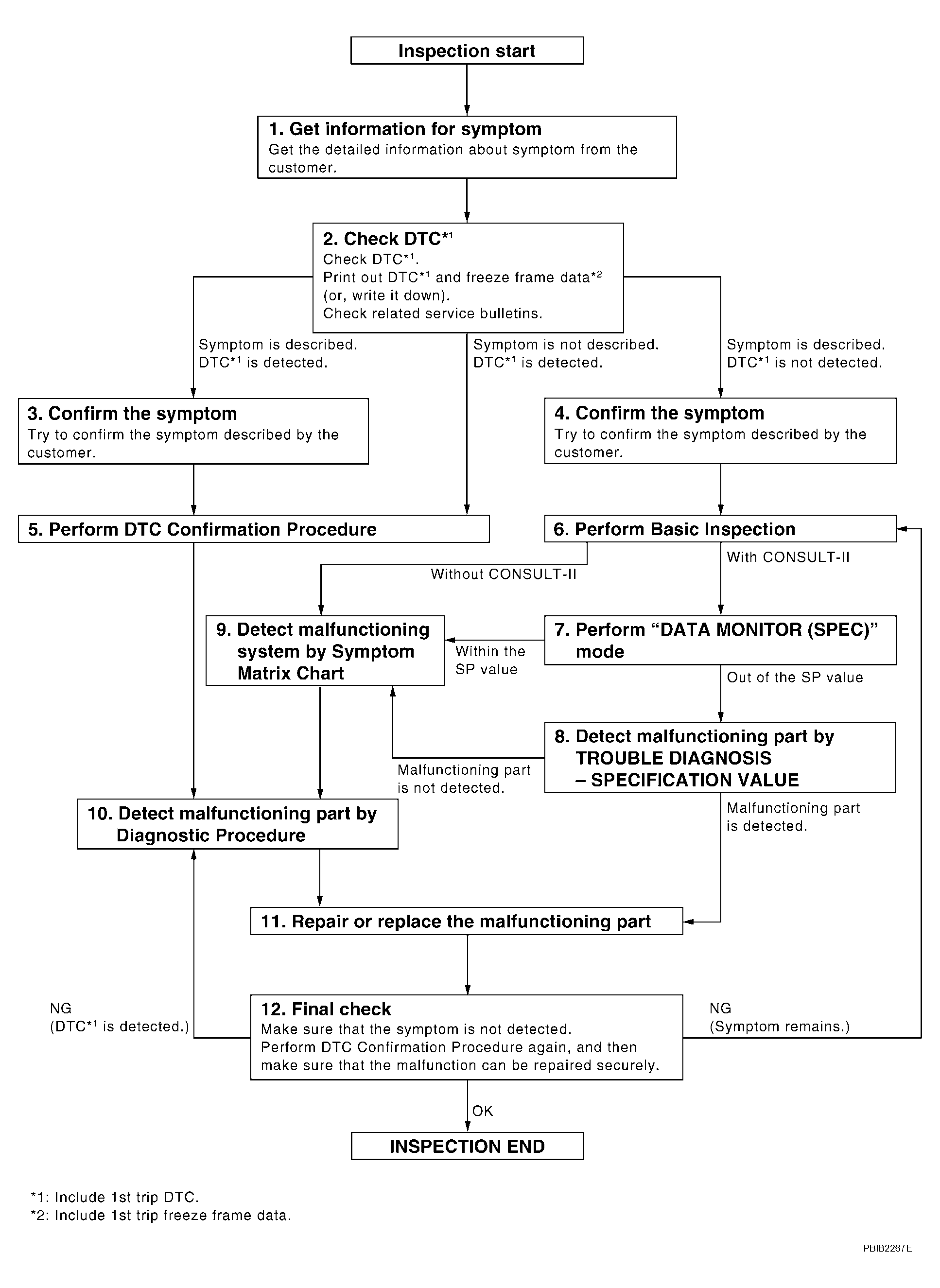

Fig 1: Overall Sequence Work Flow Chart

G04073714

Courtesy of NISSAN MOTOR CO., U.S.A.
