Home >> Infiniti >> 2006 >> FX35 AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction (VQ35DE) >> Trouble Diagnosis >> Circuit Diagram

Circuit Diagram

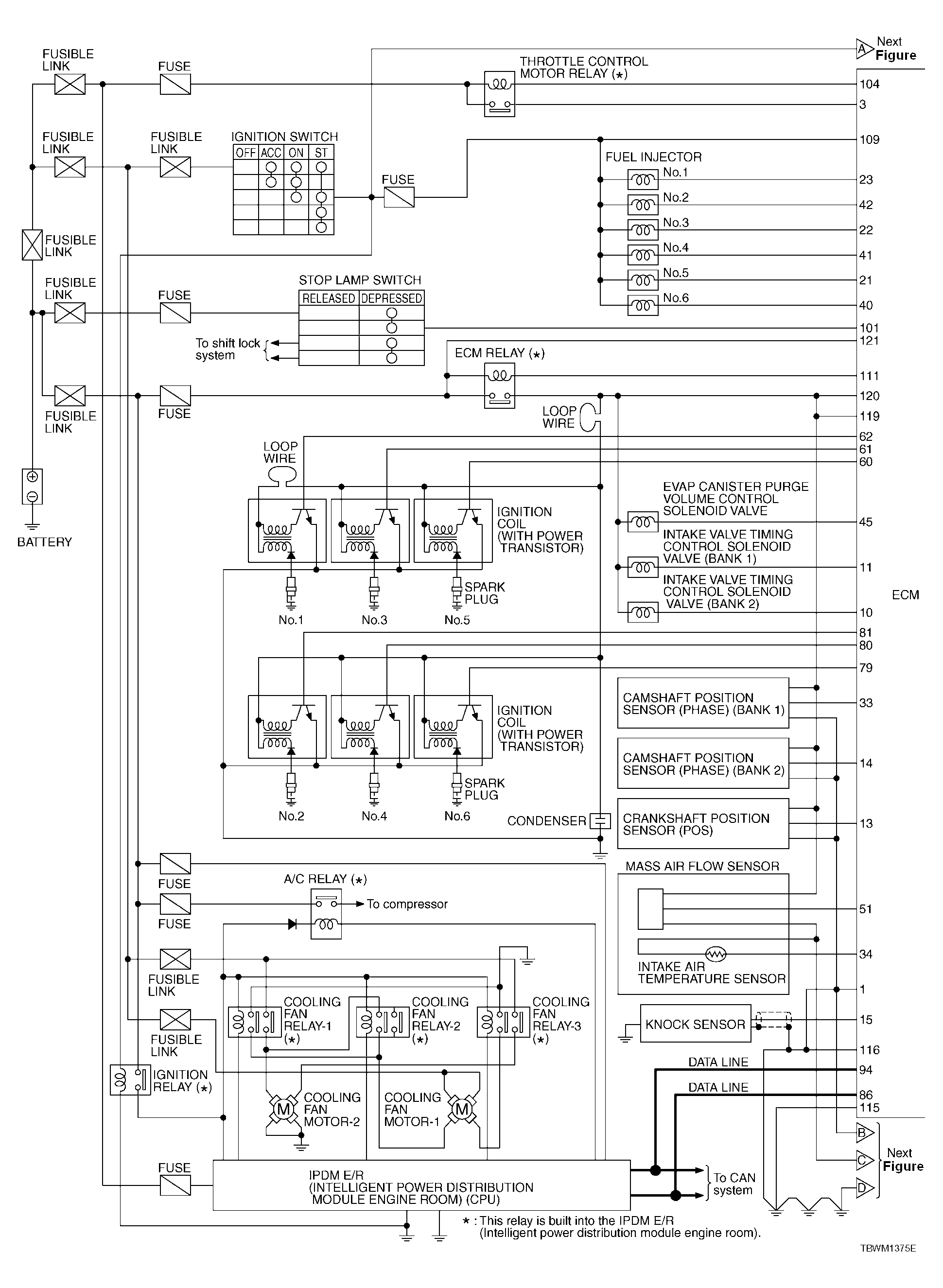

Fig 1: Circuit Diagram (1 Of 2)

G04073729

Courtesy of NISSAN MOTOR CO., U.S.A.

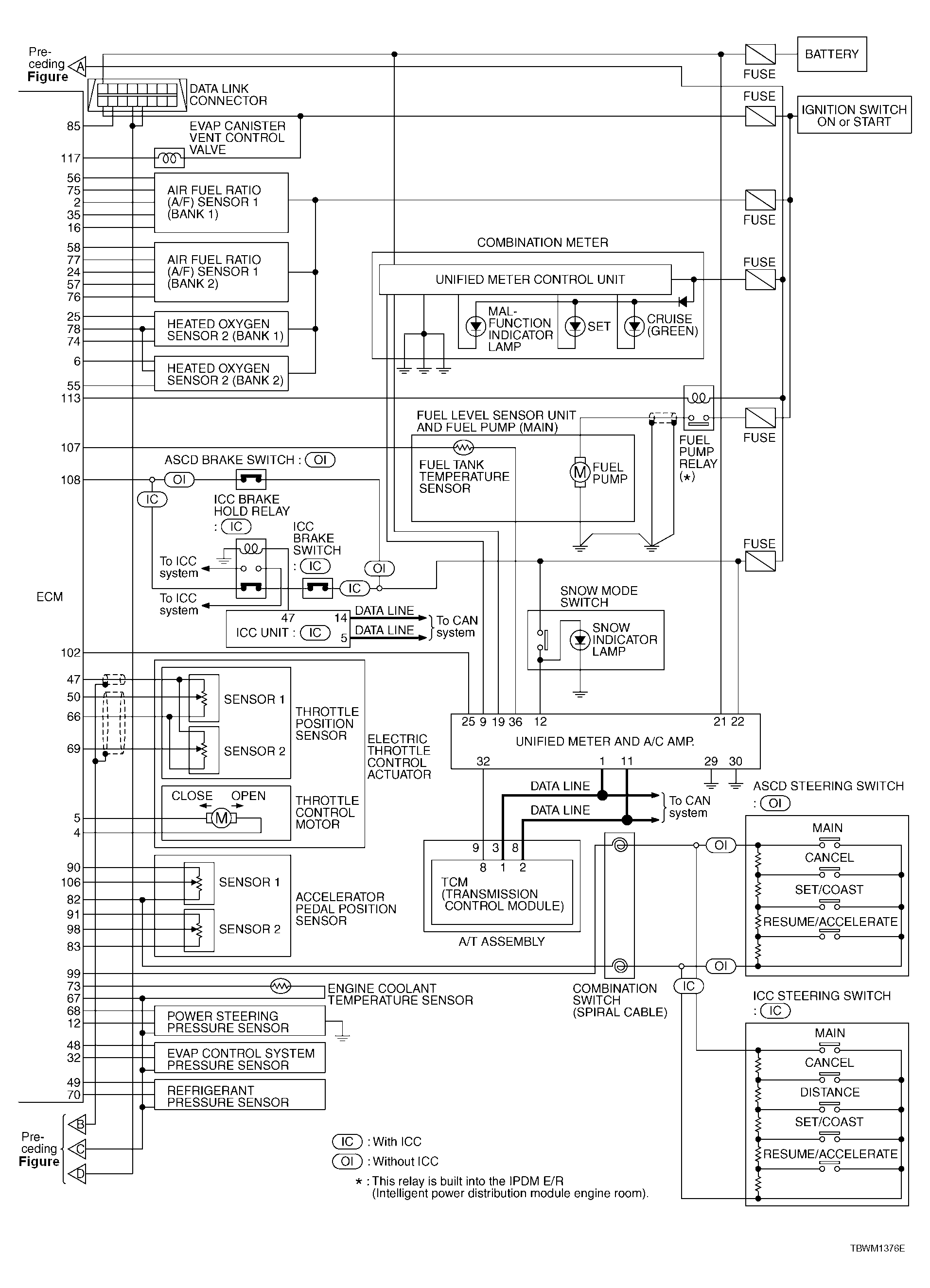

Fig 2: Circuit Diagram (2 Of 2)

G04073730

Courtesy of NISSAN MOTOR CO., U.S.A.
