How To Perform Trouble Diagnosis For Quick and Accurate Repair
>>
Work Flow
>>
Work Flow Chart
Work Flow Chart

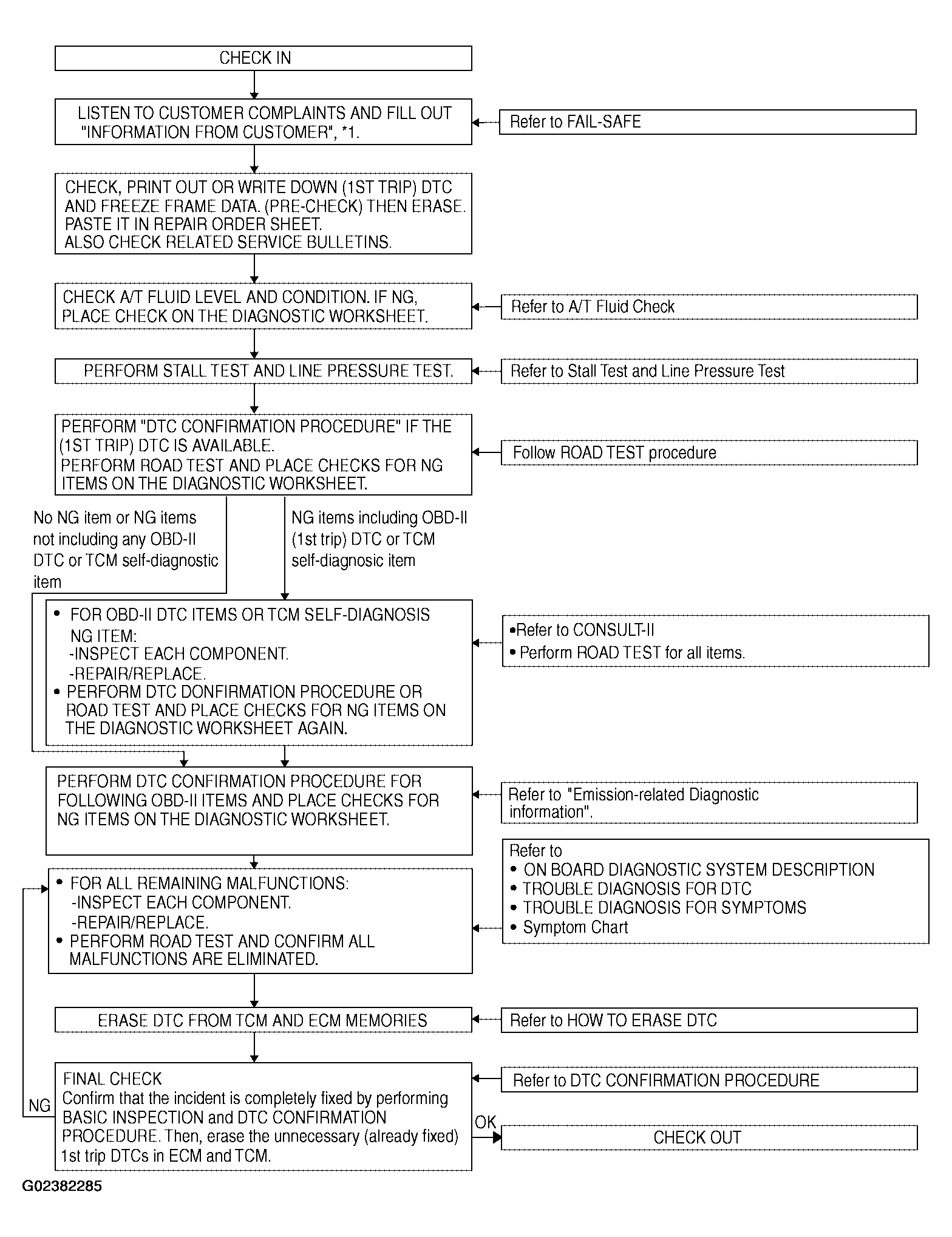

Fig 1: Troubleshooting Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
