Control Valve And TCM Removal And Installation: Installation

CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to "CHANGING A/T FLUID ", "CHECKING A/T FLUID ".

Connect TCM connector and park/neutral position switch connector.

Fig 1: Connecting TCM Connector & Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector to control valve with TCM.

Fig 2: Installing A/T Assembly Harness Connector To Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connector.

Fig 3: Connecting TCM Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring in A/T assembly harness connector.
NOTE:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 4: Installing New O-Ring In A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 to bracket.

Fig 5: Installing A/T Fluid Temperature Sensor 2 To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.

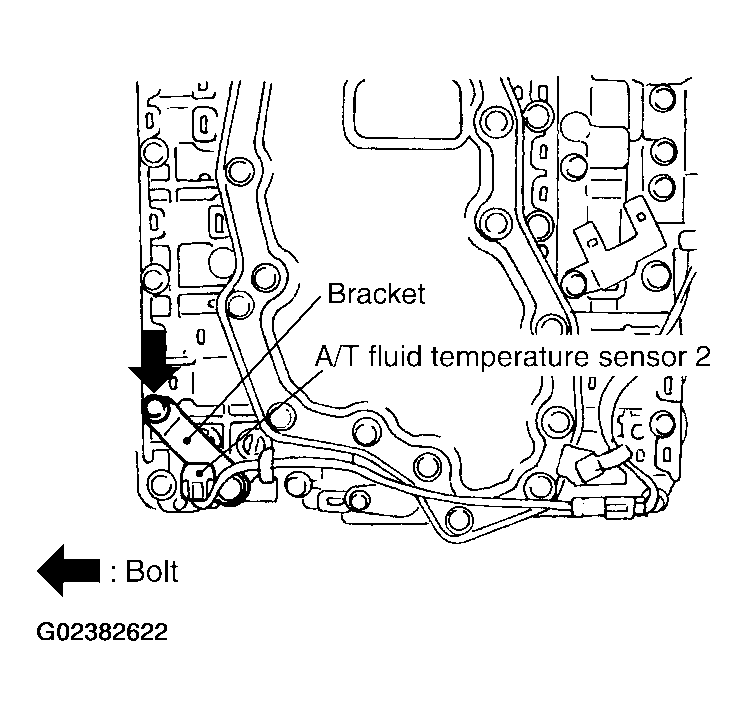

Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque. Refer to "COMPONENTS ".
CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.

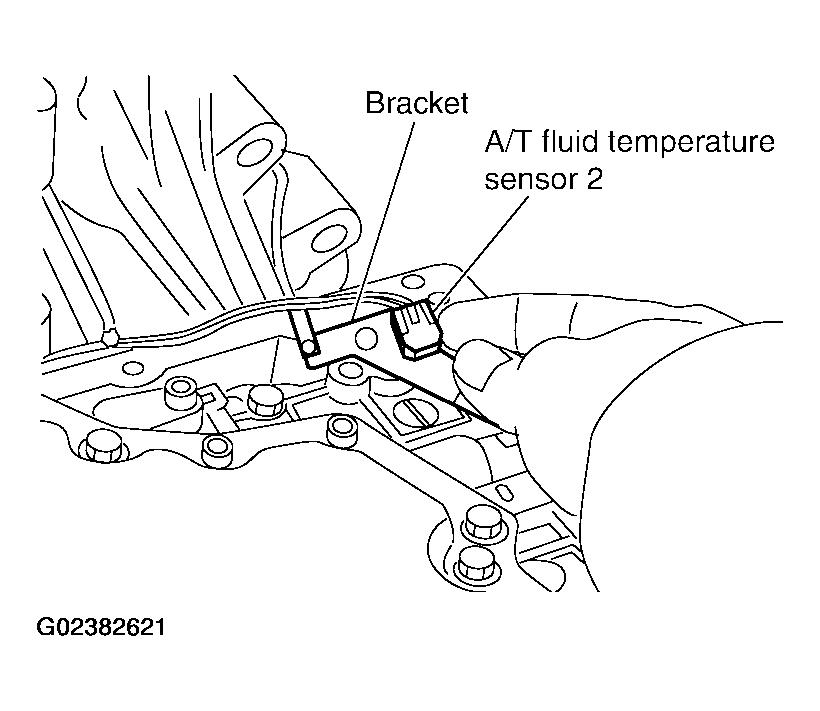

Fig 6: Installing A/T Fluid Temperature Sensor 2 In Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve with TCM in transmission case.
CAUTION:
- Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

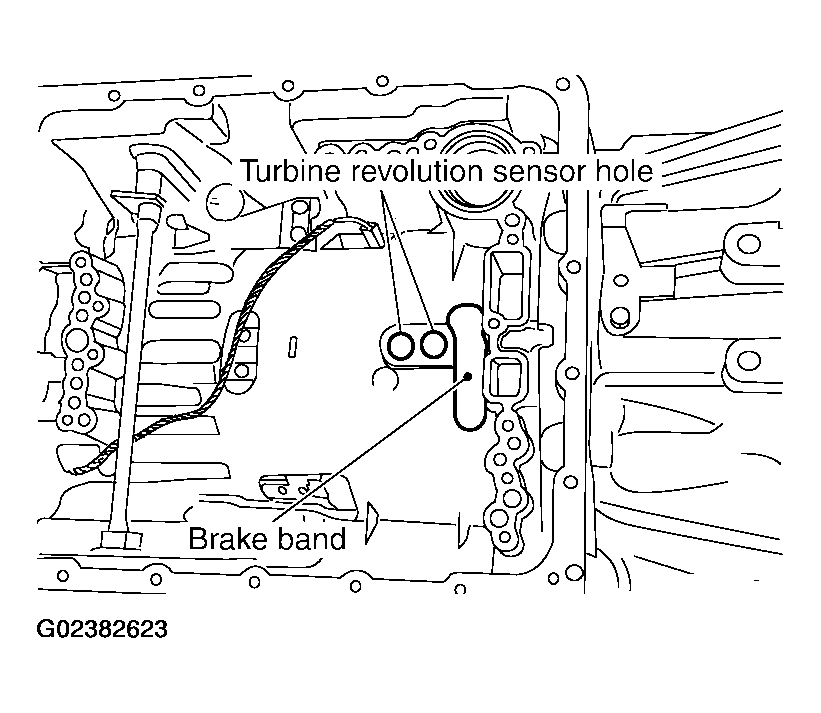

  Fig 7: Installing Control Valve With TCM In Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

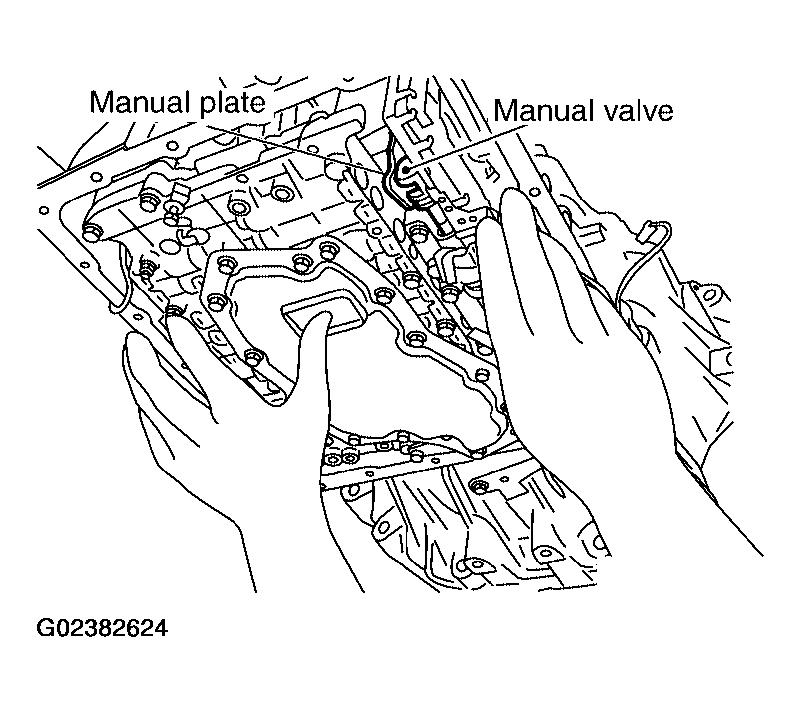

- Assemble it so that manual valve cutout is engaged with manual plate projection.

  Fig 8: Engaging Manual Valve Cutout With Manual Plate Projection
  Courtesy of NISSAN MOTOR CO., U.S.A.

Install bolts A, B and C in control valve with TCM.

CONTROL VALVE WITH TCM BOLTS SPECIFICATIONS TABLE

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

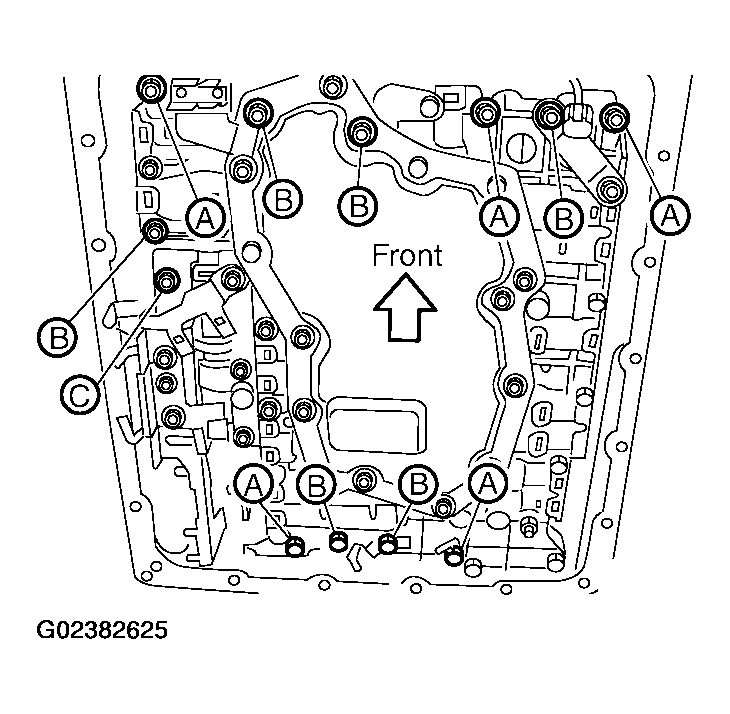

Fig 9: Identifying Control Valve & TCM Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 2 3), and then tighten other bolts.
Tighten control valve with TCM bolts to the specified torque. Refer to "COMPONENTS ".

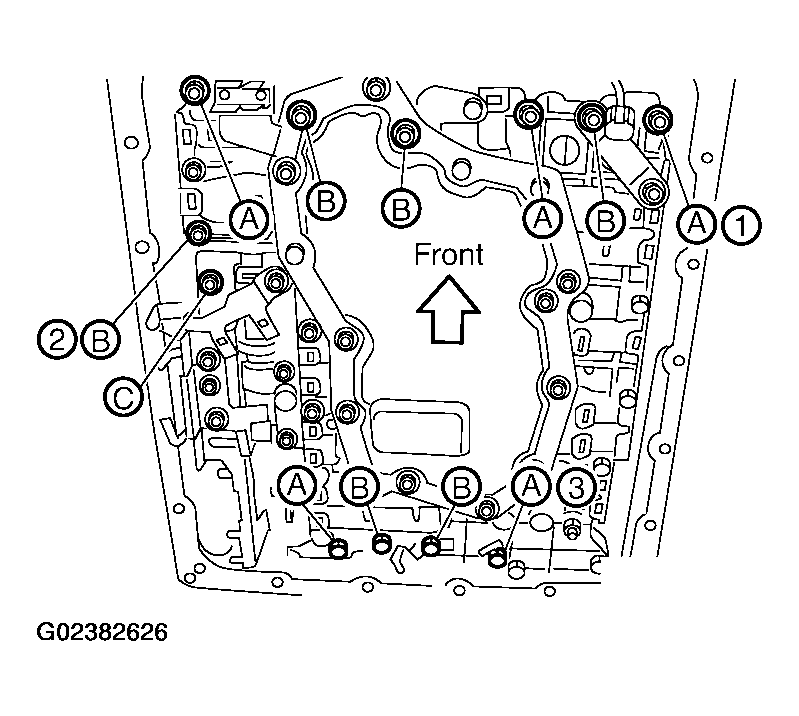

Fig 10: Tightening Sequence Of Control Valve & TCM Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect A/T fluid temperature sensor 2 connector.

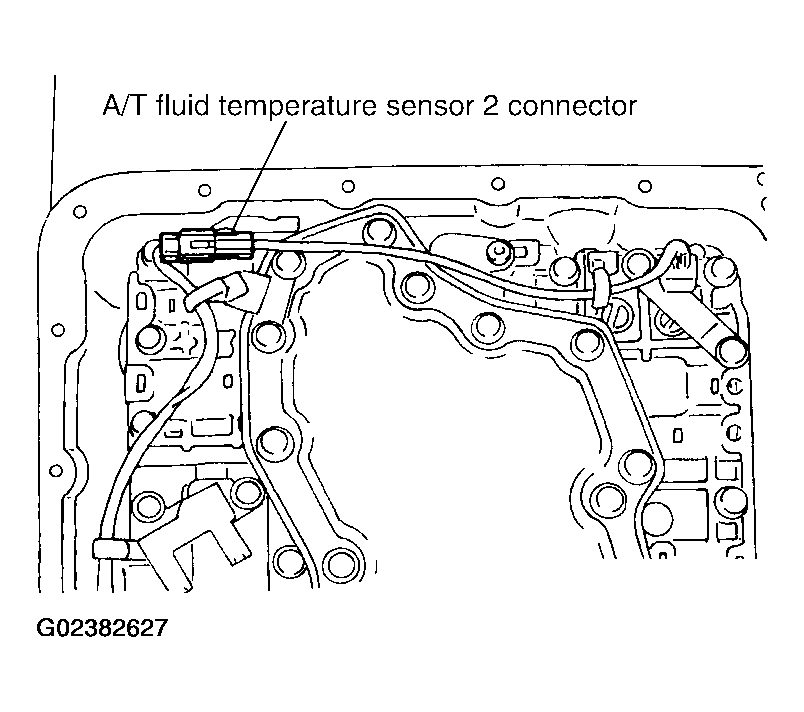

Fig 11: Connecting A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.

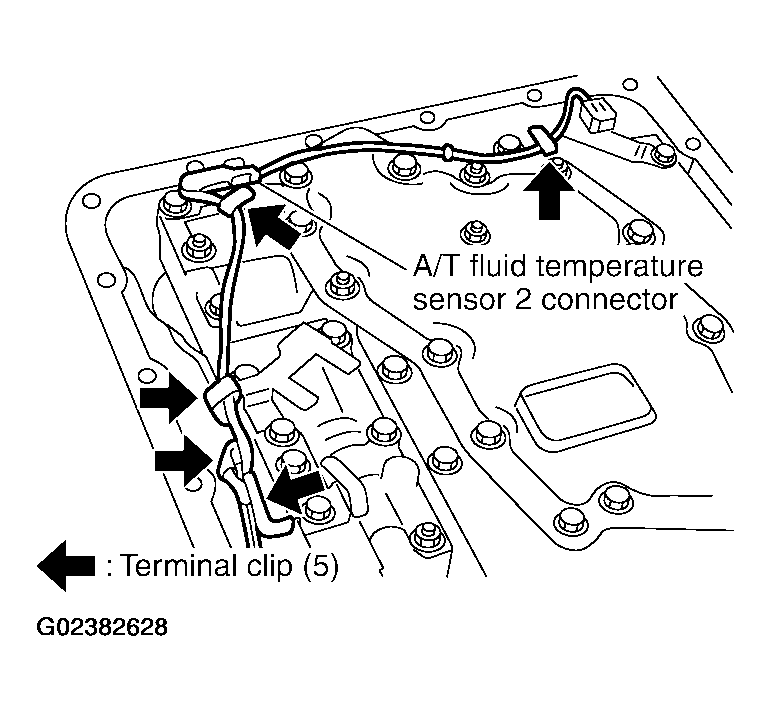

Fig 12: Fastening Terminal Cord Assembly And A/T Fluid Temperature Sensor 2 Harness With Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector.

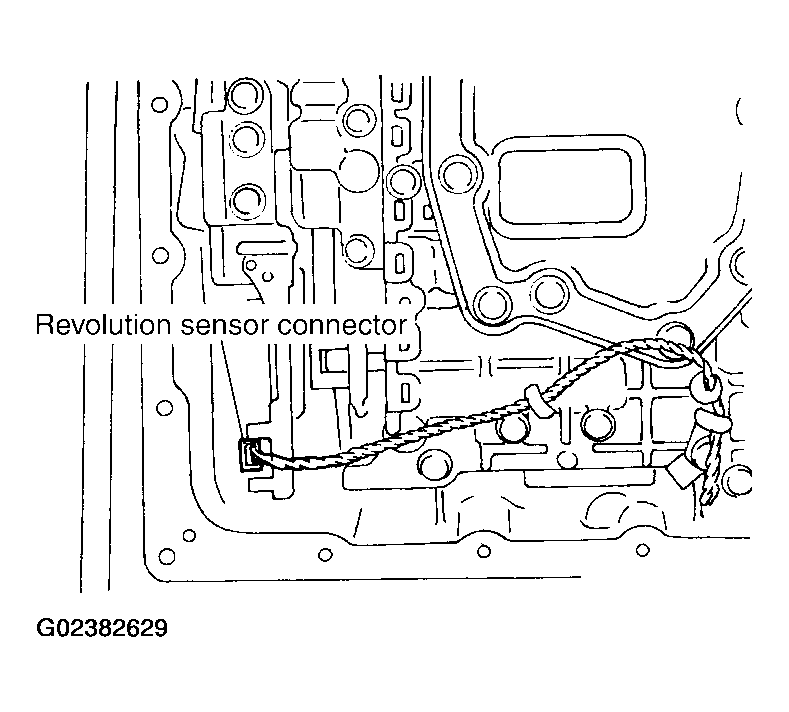

Fig 13: Connecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

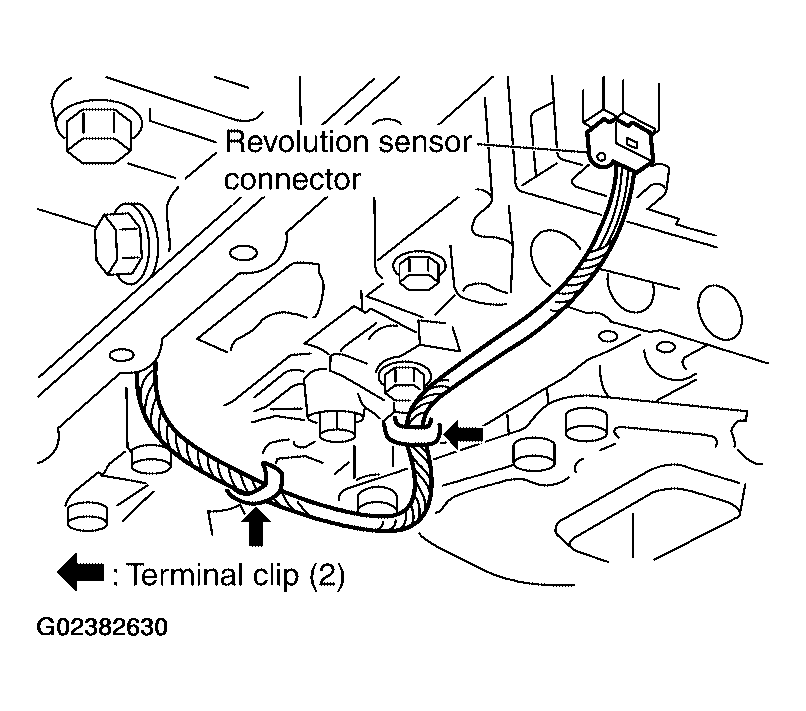

Securely fasten revolution sensor harness with terminal clips.

Fig 14: Fastening Revolution Sensor Harness With Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case, refer to "INSTALLATION "
Pull up A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 15: Pulling Up A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.
Connect A/T assembly harness connector.
Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".
Connect the negative battery terminal

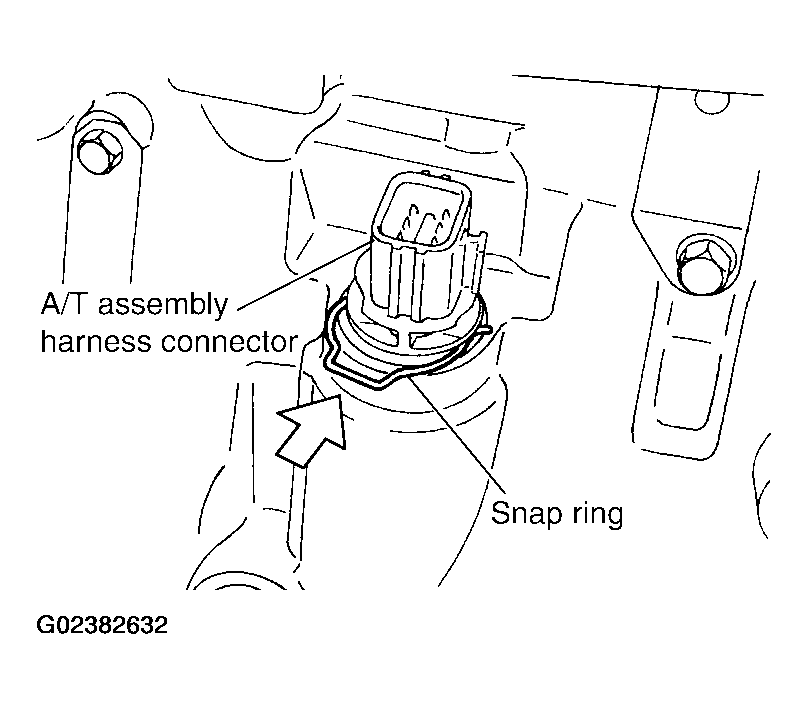

Fig 16: Installing Snap Ring To A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
