With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

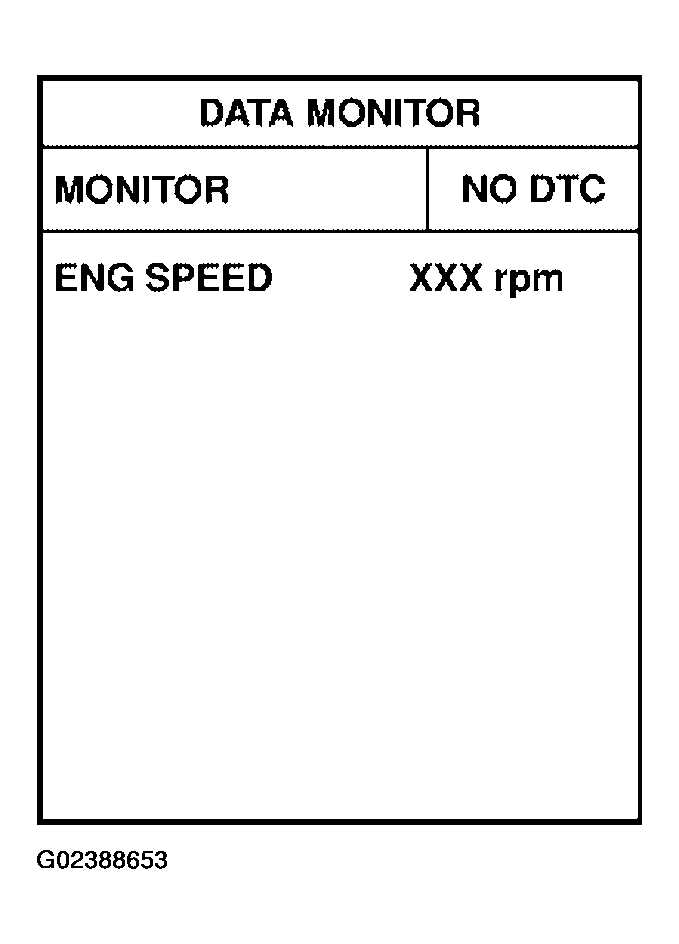

    Fig 1: CONSULT-II Display - "DATA MONITOR" Mode For DTC P0102
    G02388653Courtesy of NISSAN MOTOR CO., U.S.A.
