Terminal and Reference Value for Power Window and Door Lock/Unlock Switch RH

Fig 1: Power Window And Door Lock/Unlock Switch (RH) Voltage Reference (1 Of 2)
G02383803Courtesy of NISSAN MOTOR CO., U.S.A.

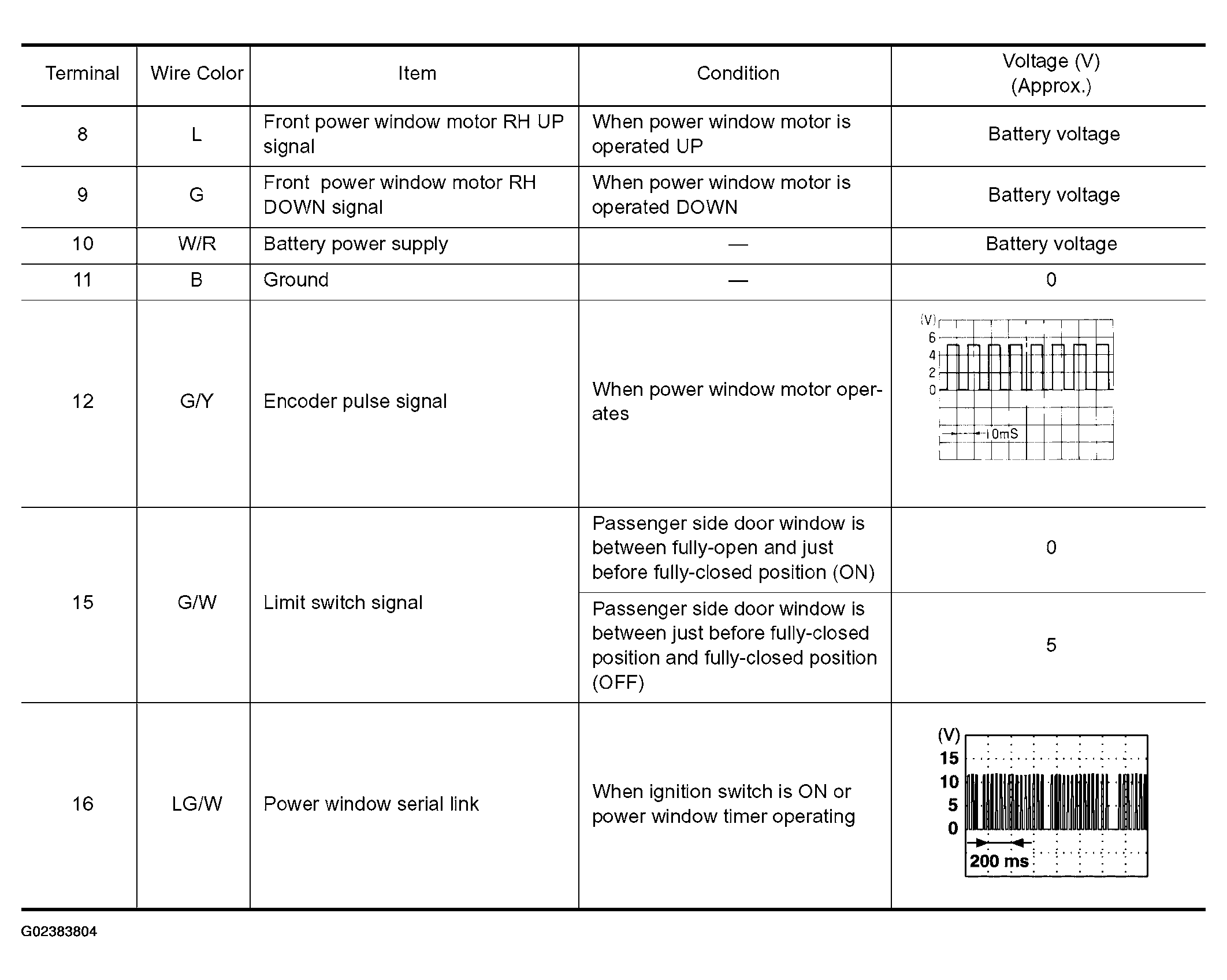

Fig 2: Power Window And Door Lock/Unlock Switch (RH) Voltage Reference (1 Of 2)
G02383804Courtesy of NISSAN MOTOR CO., U.S.A.
