Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch

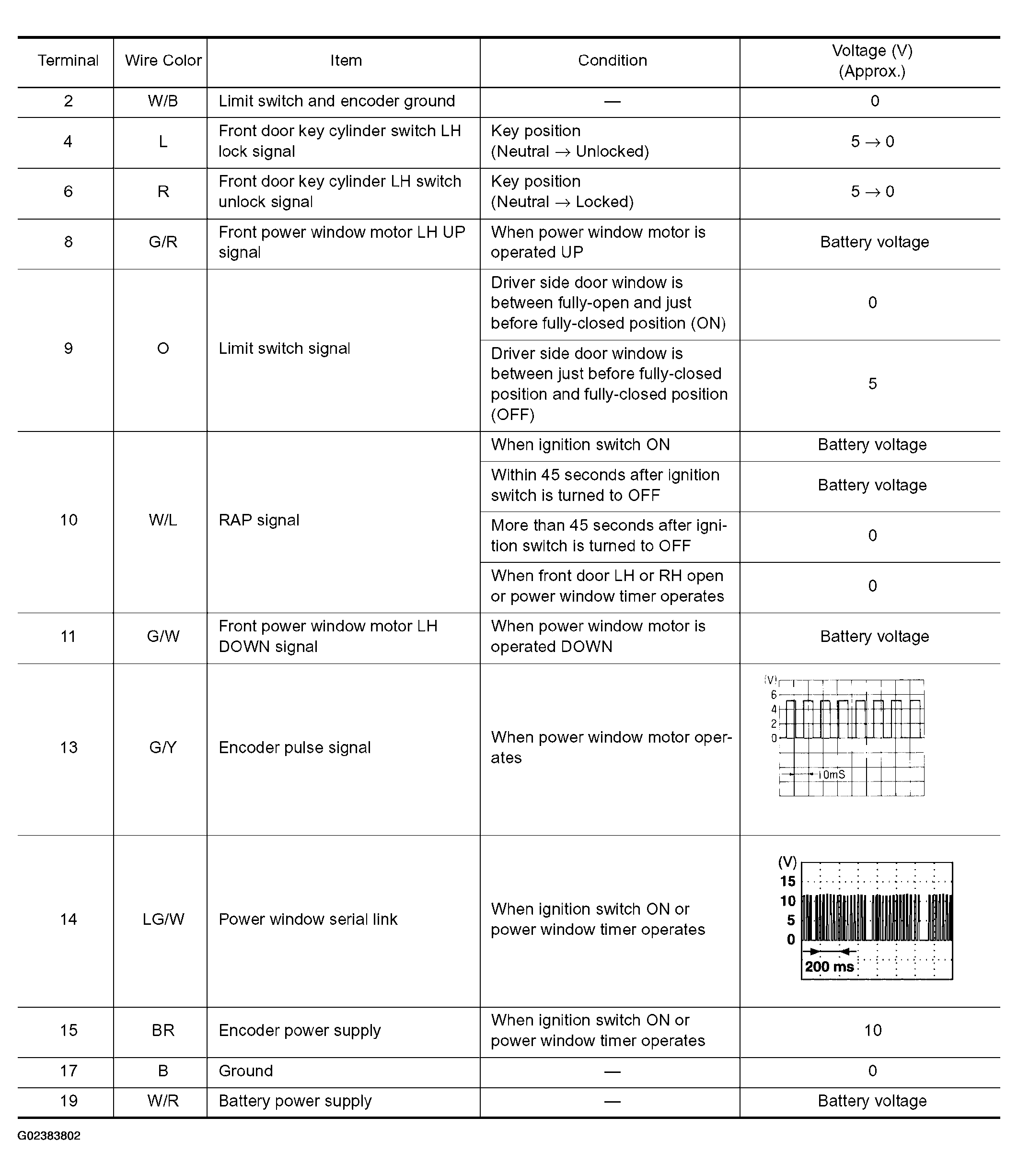

Fig 1: Main Power Window And Door Lock/Unlock Switch Voltage Reference

G02383802

Courtesy of NISSAN MOTOR CO., U.S.A.
