Terminal and Reference Value for BCM

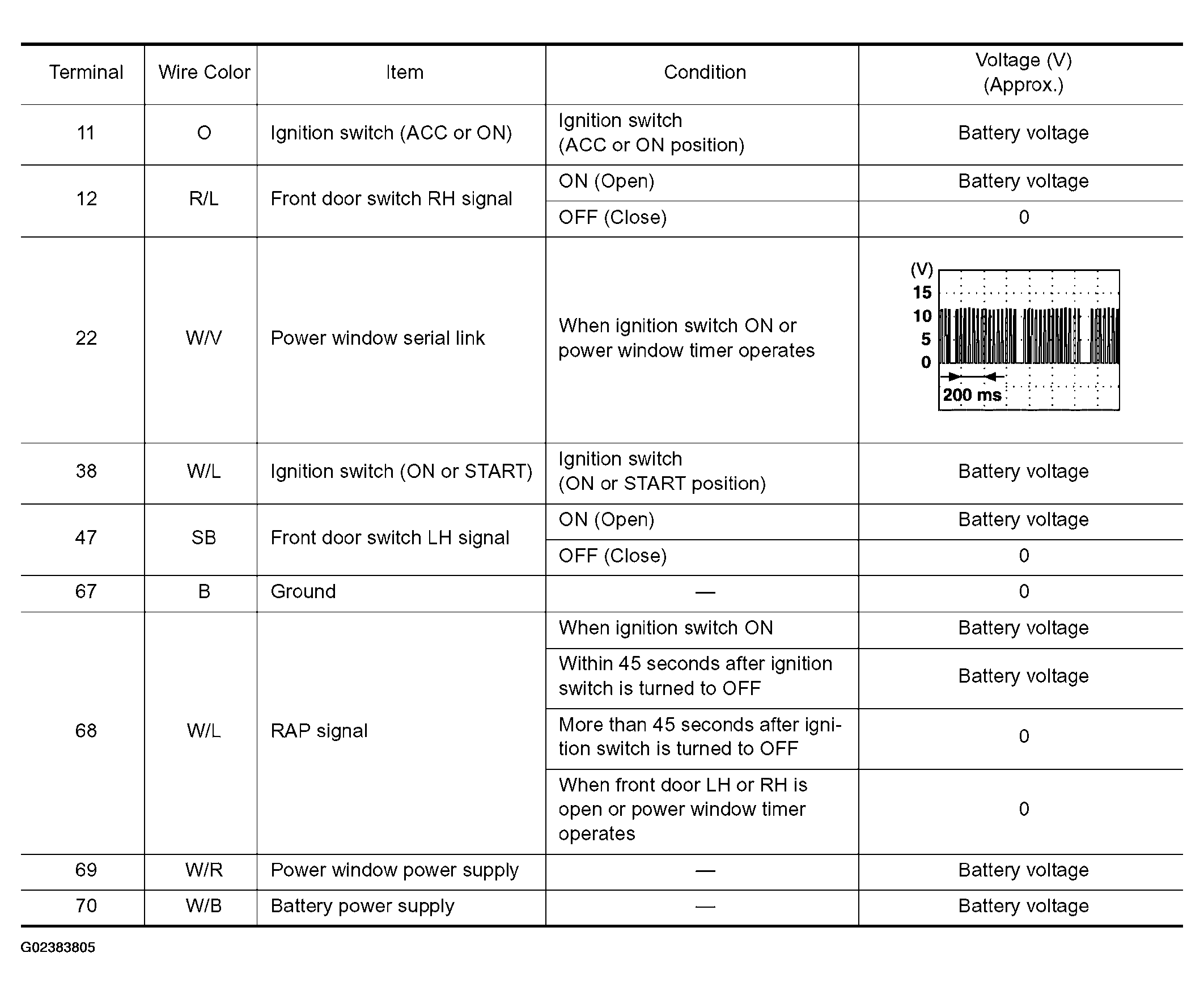

Fig 1: Terminal and Reference Value for BCM

G02383805

Courtesy of NISSAN MOTOR CO., U.S.A.
