Rear Power Window Motor RH Circuit Check

CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window switch RH connector D303 terminals 4, 5 and ground.

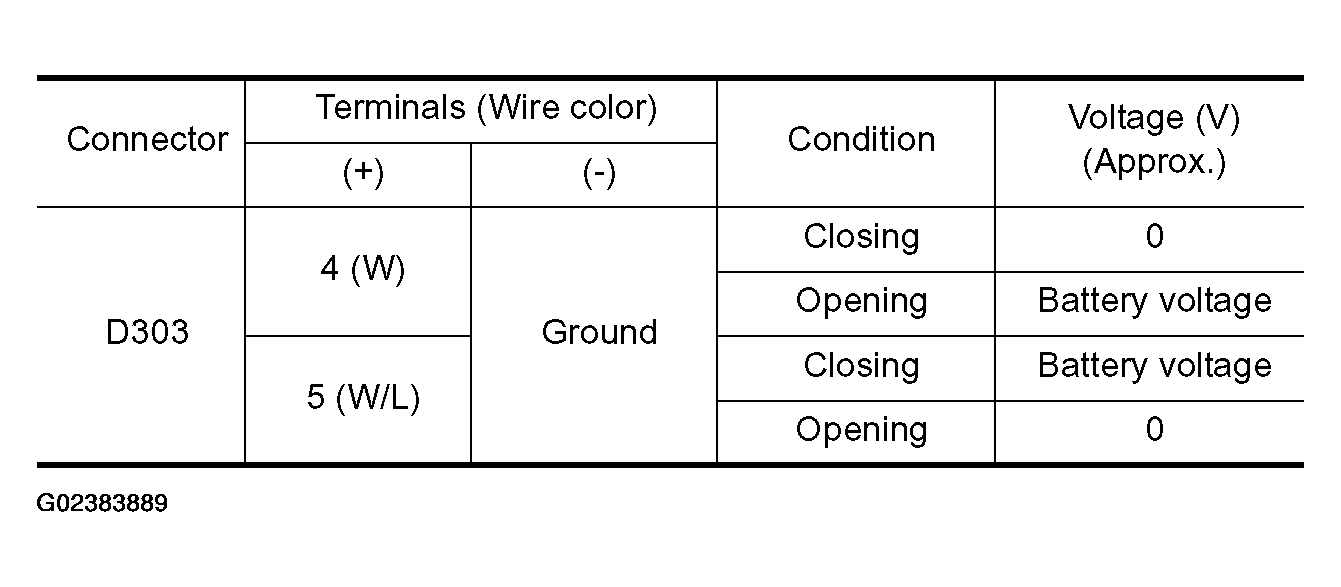

  Fig 1: Rear Power Window Motor RH Circuit Connector Terminal Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace rear power window switch RH.
2. NG: GO TO 2.

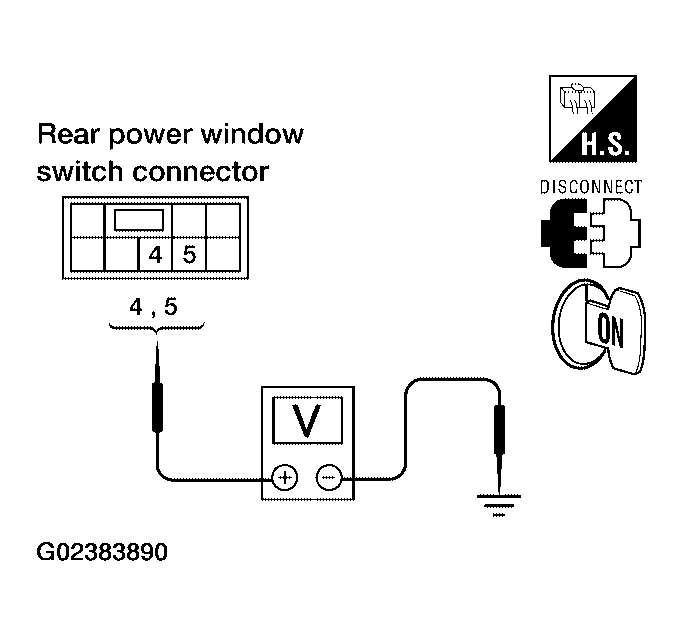

Fig 2: Checking Voltage Between Rear Power Window Switch RH Connector D303 Terminals 4, 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR POWER WINDOW SWITCH RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH and rear power window control unit RH.
3. Check continuity between rear power window switch RH connector D303 terminals 4, 5 and rear power window control unit RH connector D309 terminals 9, 10.
  1. 4 (W) - 9 (W): Continuity should exist.
  2. 5 (W/L) - 10 (W/L): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness.

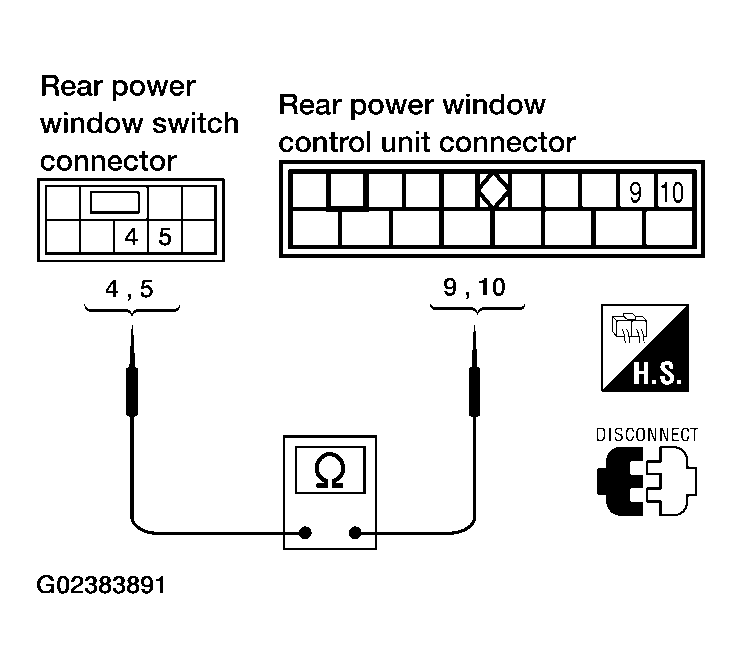

Fig 3: Checking Continuity Between Rear Power Window Switch RH Connector D303 Terminals 4, 5 And Rear Power Window Control Unit RH Connector D309 Terminals 9 And 10
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window control unit RH and rear power window motor RH.
3. Check continuity between rear power window control unit RH connector D309 terminals 11, 12 and rear power window motor RH connector D304 terminals 1, 2.
  1. 11 (O) - 2 (O): Continuity should exist.
  2. 12 (BR) - 1 (BR): Continuity should exist.
OK or NG
1. OK: Replace rear power window motor RH.
2. NG: Repair or replace harness.

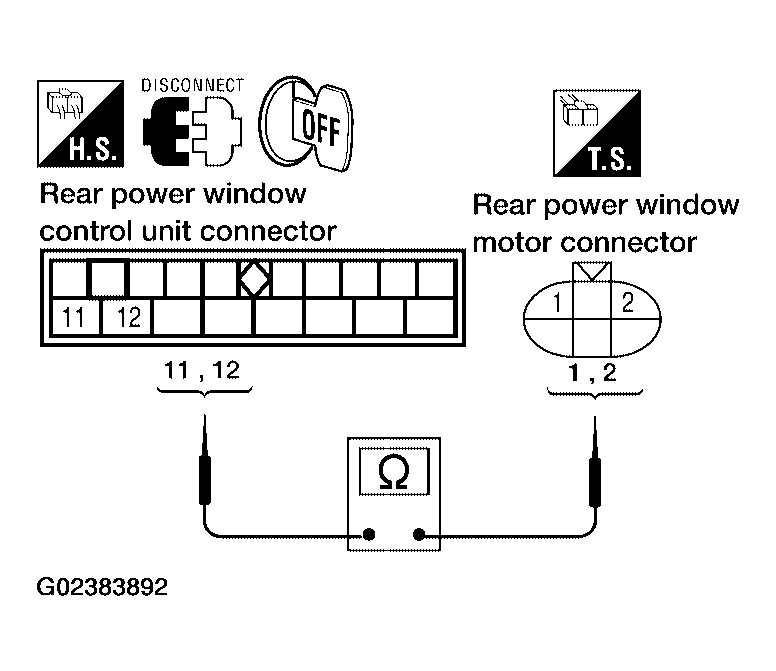

Fig 4: Checking Continuity Between Rear Power Window Control Unit RH Connector D309 Terminals 11, 12 And Rear Power Window Motor RH Connector D304 Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.
