Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Infiniti
>>
2005
>>
Q45
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Trouble Diagnosis
>>
How To Perform Trouble Diagnosis For Quick and Accurate Repair
>>
Work Flow
>>
Work Flow Chart
Work Flow Chart

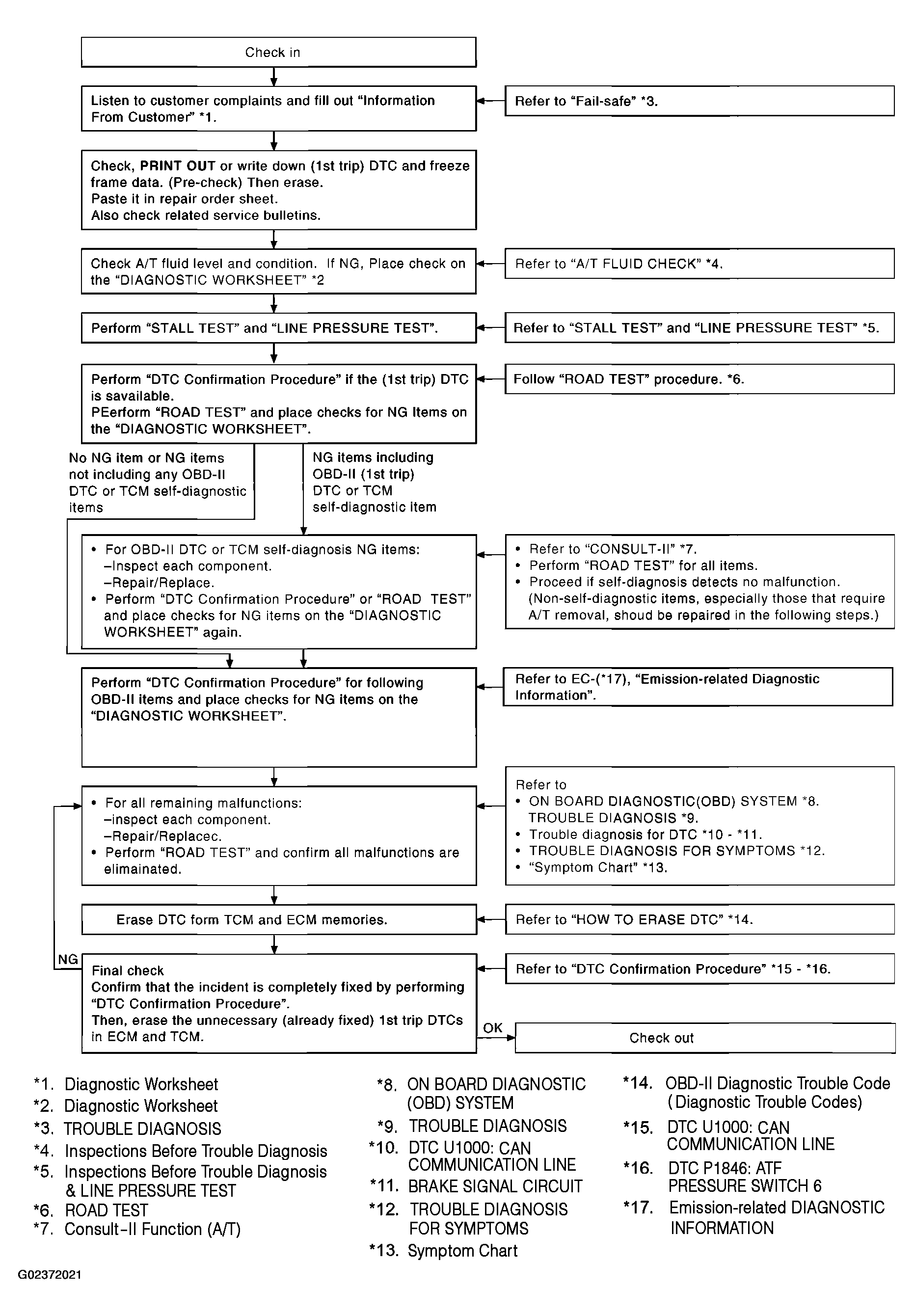

Fig 1: Troubleshooting Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
