Freeze Frame Data and 1st Trip Freeze Frame Data

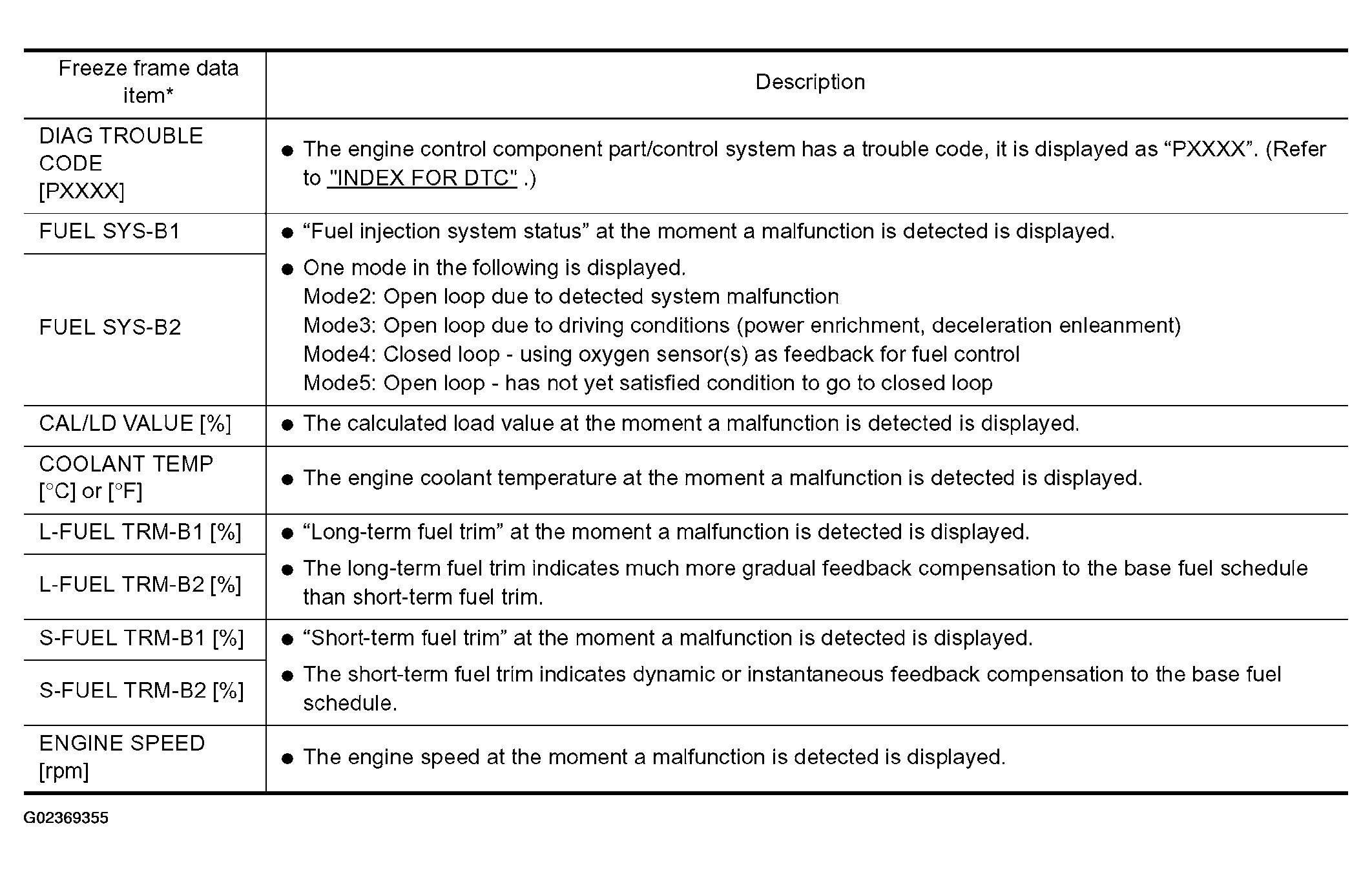

Fig 1: Freeze Frame Data Chart

G02369355

Courtesy of NISSAN MOTOR CO., U.S.A.

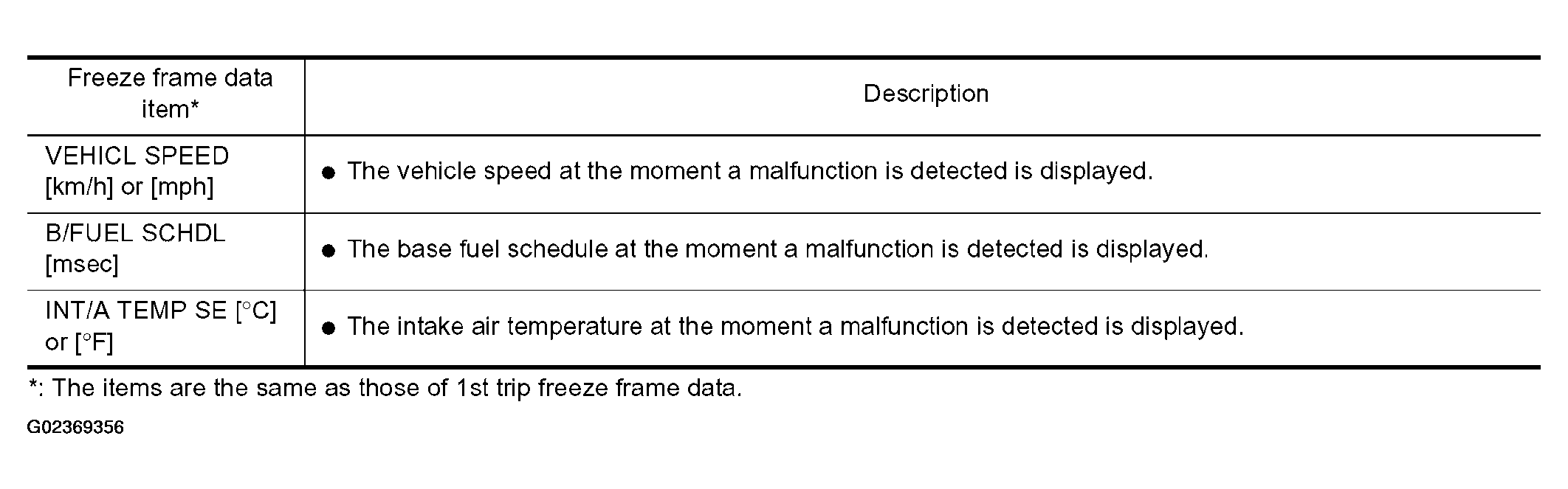

Fig 2: Monitored Item Description (1 Of 6)

G02369356

Courtesy of NISSAN MOTOR CO., U.S.A.
