SRT Item

The Fig 1 below shows required self-diagnostic items to set the SRT to "CMPLT".

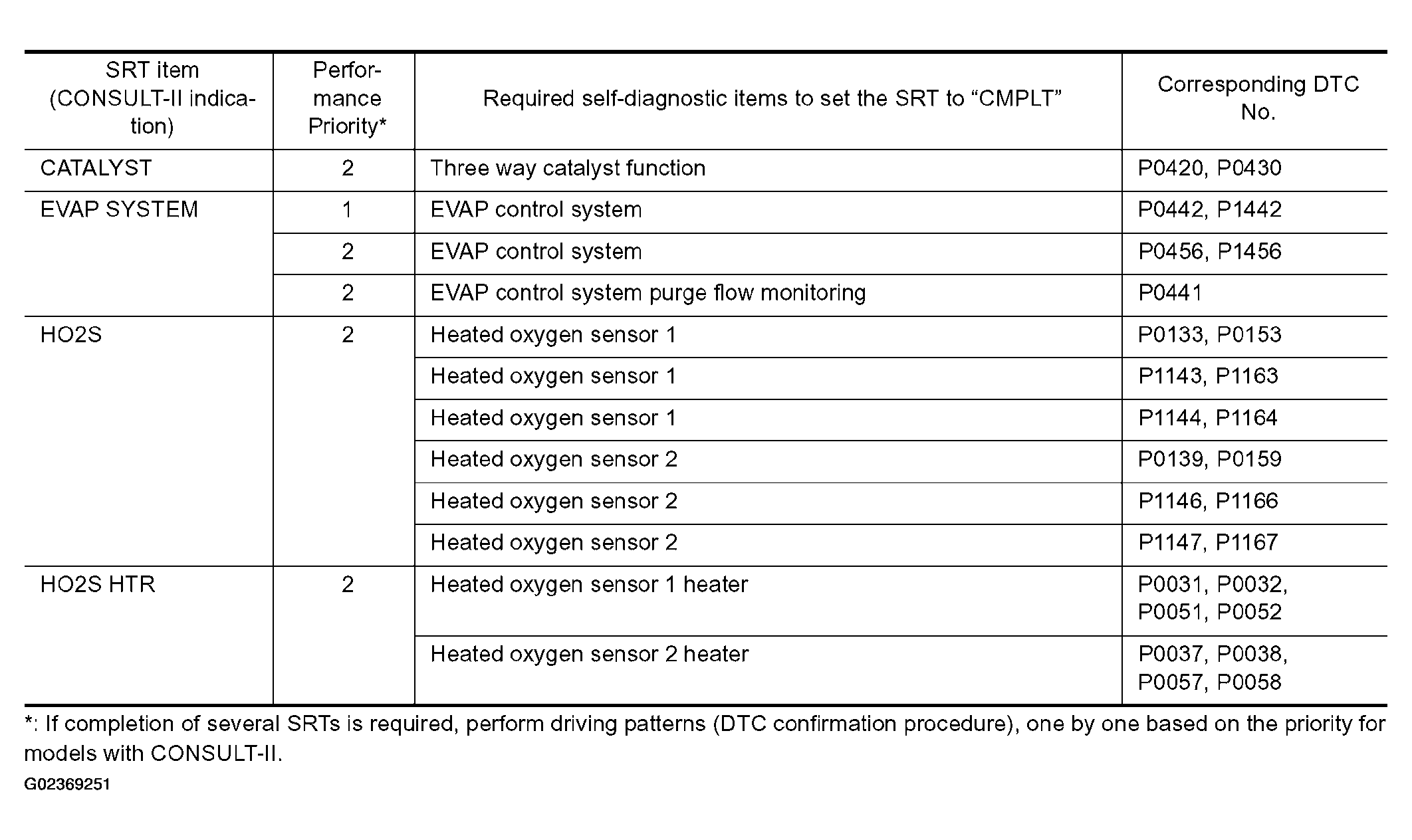

Fig 1: Self-Diagnostic Items Chart

G02369251

Courtesy of NISSAN MOTOR CO., U.S.A.
