On Board Diagnosis Logic

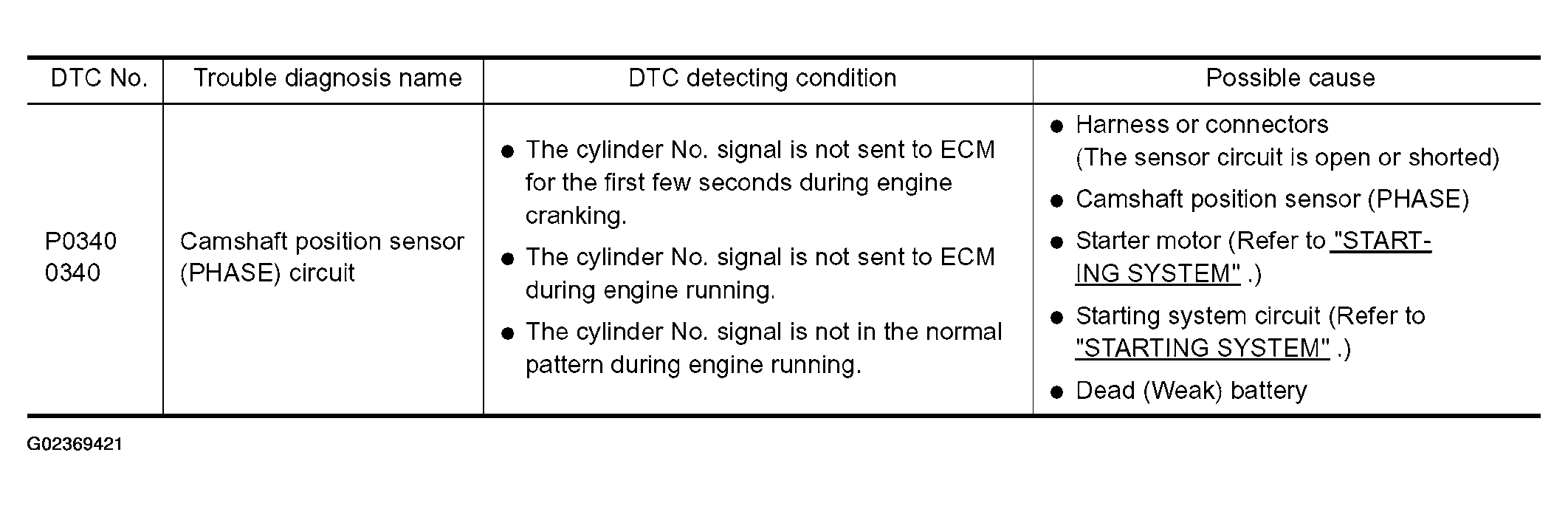

Fig 1: DTC Detection Condition Diagnosis Logic

G02369421

Courtesy of NISSAN MOTOR CO., U.S.A.
