Camshaft Position Sensor (Phase)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

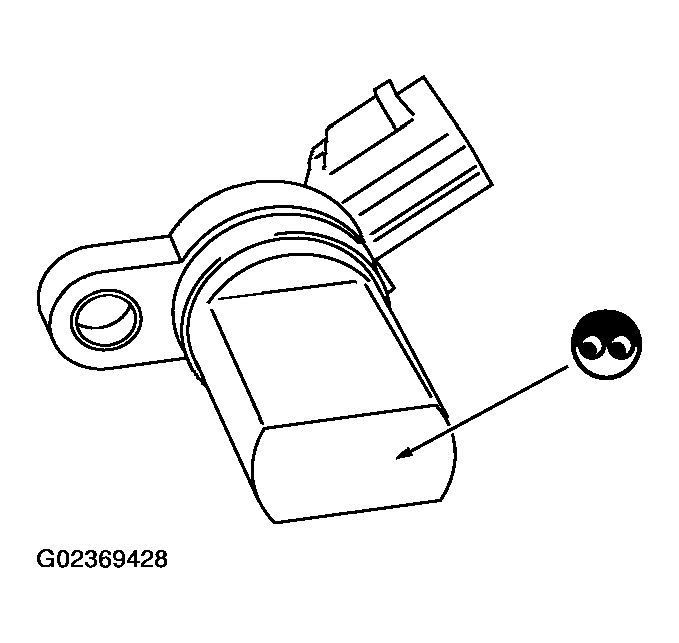

    Fig 1: Identifying Camshaft Position Sensor (PHASE)
    G02369428Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.

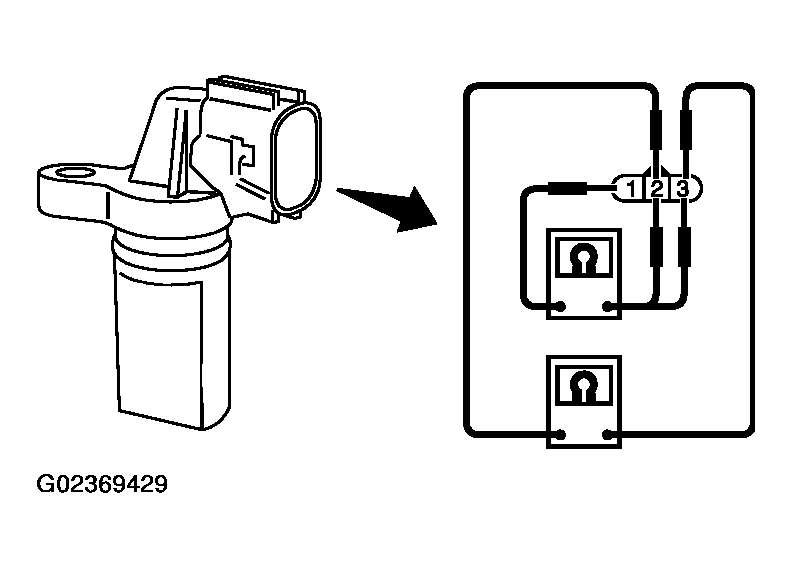

    Fig 2: Checking Resistance
    G02369429Courtesy of NISSAN MOTOR CO., U.S.A.

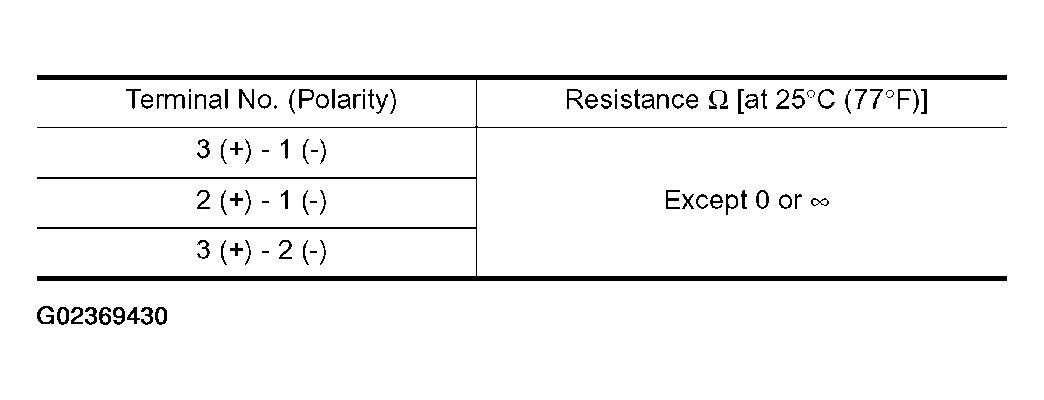

    Fig 3: Resistance Specification
    G02369430Courtesy of NISSAN MOTOR CO., U.S.A.
