Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

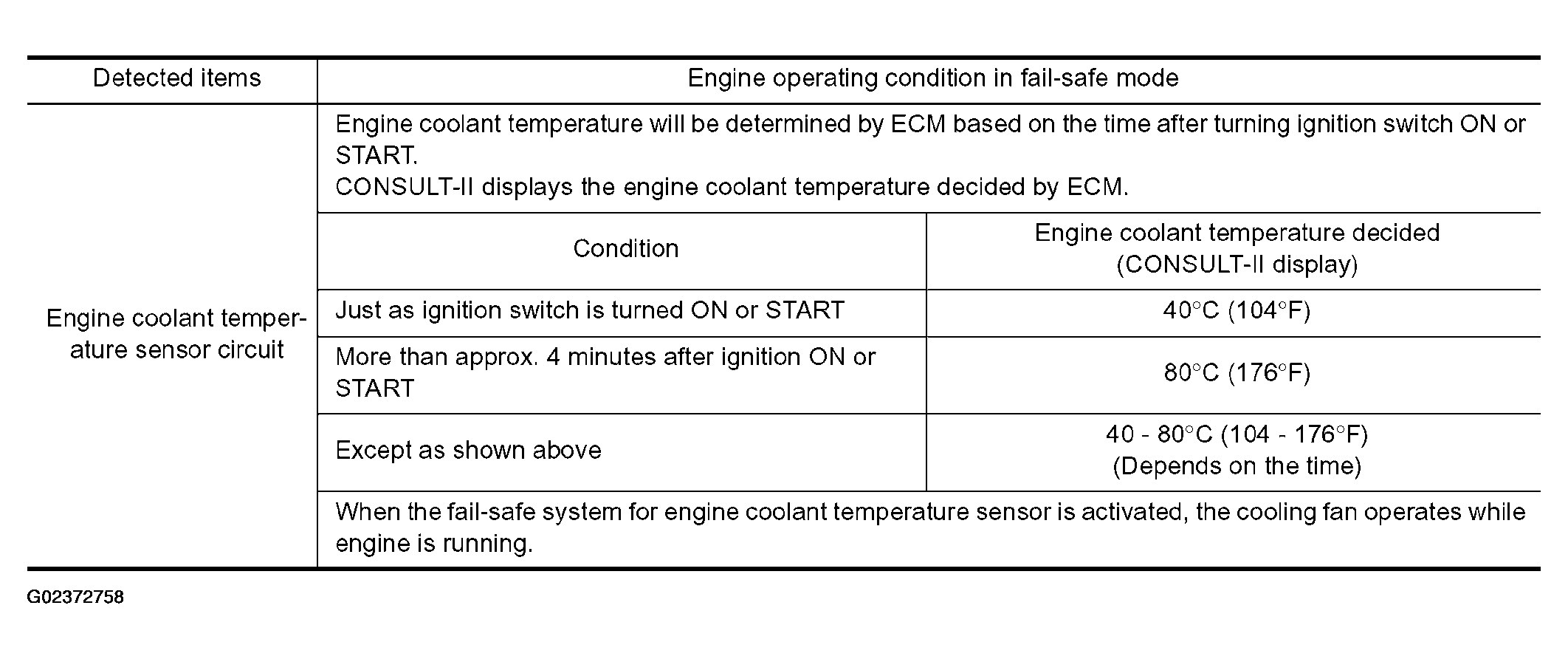

Fig 1: Engine Operating Condition In Fail-Safe Mode Reference

G02372758

Courtesy of NISSAN MOTOR CO., U.S.A.
