On Board Diagnosis Logic: Notes

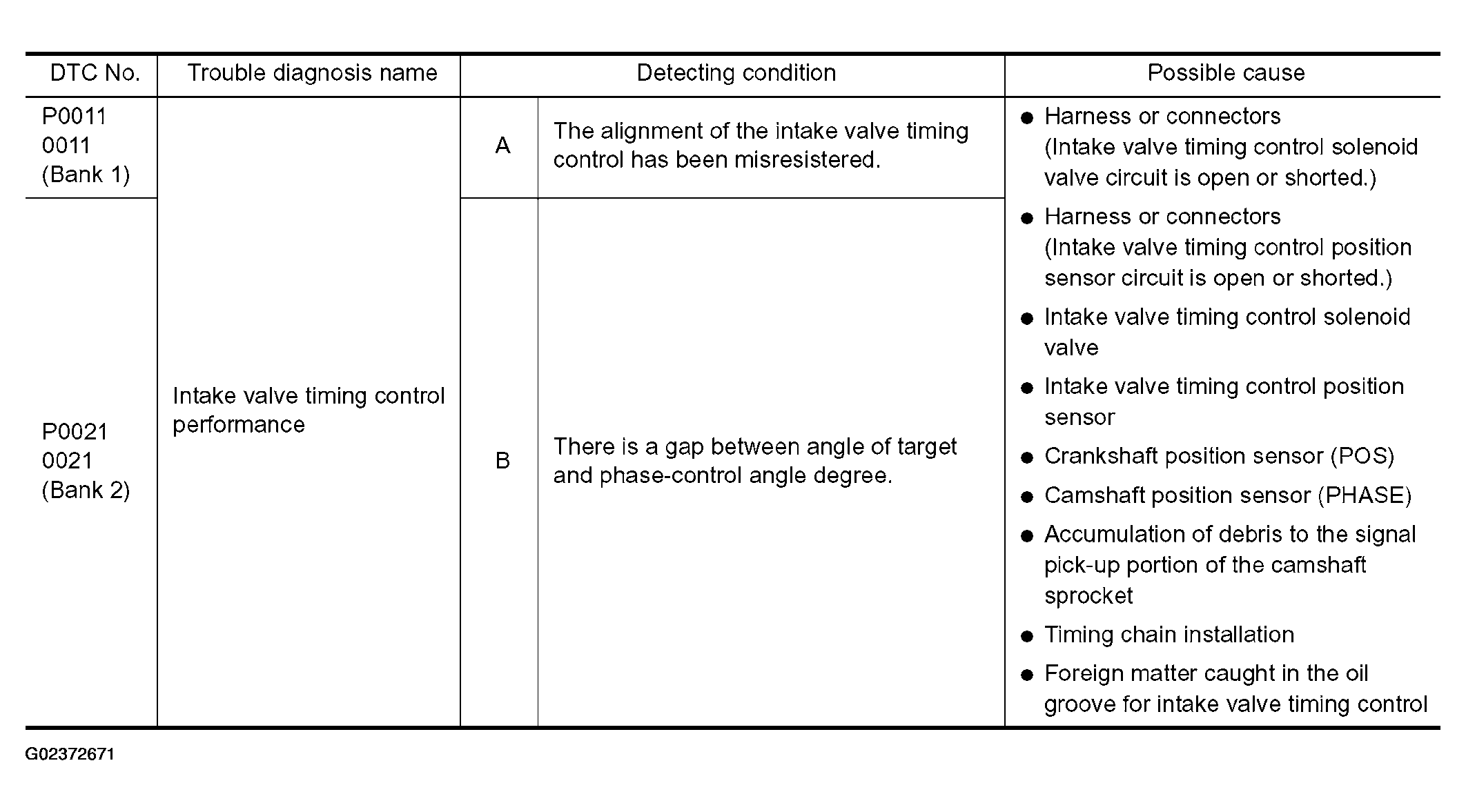

Fig 1: Troubleshooting Diagnosis Logic Detection Condition

G02372671

Courtesy of NISSAN MOTOR CO., U.S.A.
