On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE: If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .

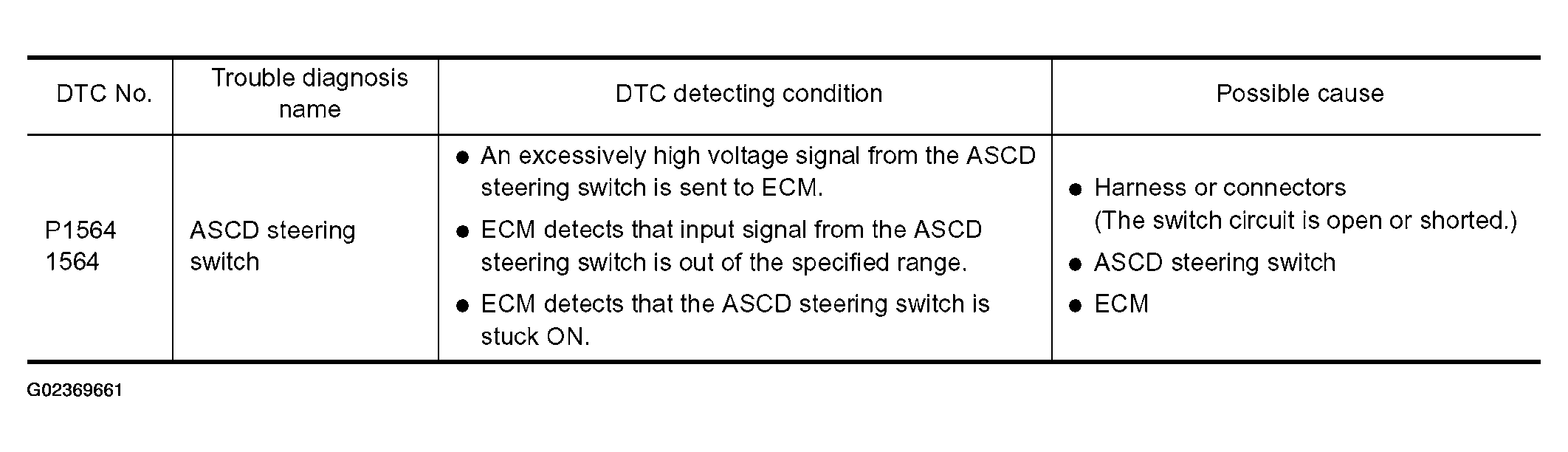

Fig 1: DTC - P1564 Trouble Detection Chart
G02369661Courtesy of NISSAN MOTOR CO., U.S.A.
