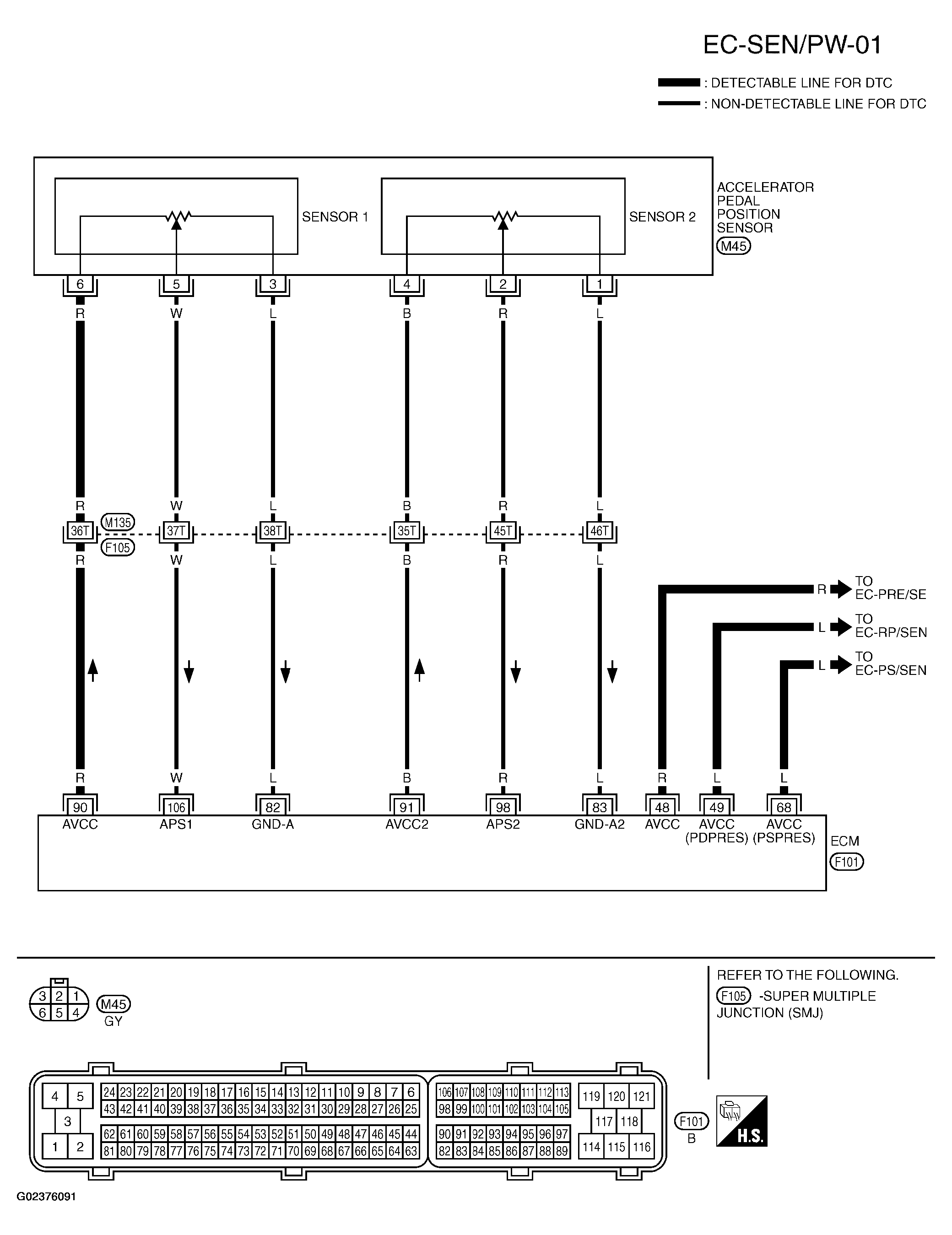

DTC P1229: Sensor Power Supply: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SENSOR POWER SUPPLY TERMINALS VOLTAGE SPECIFICATIONS
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 48 | R | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 49 | L | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 68 | L | Sensor power supply (Power steering pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 90 | R | Sensor power supply (APP sensor 1) | [Ignition switch: ON] | Approximately 5V |
