Cooling Fan Relay Operation

The ECM controls cooling fan relays as follows.

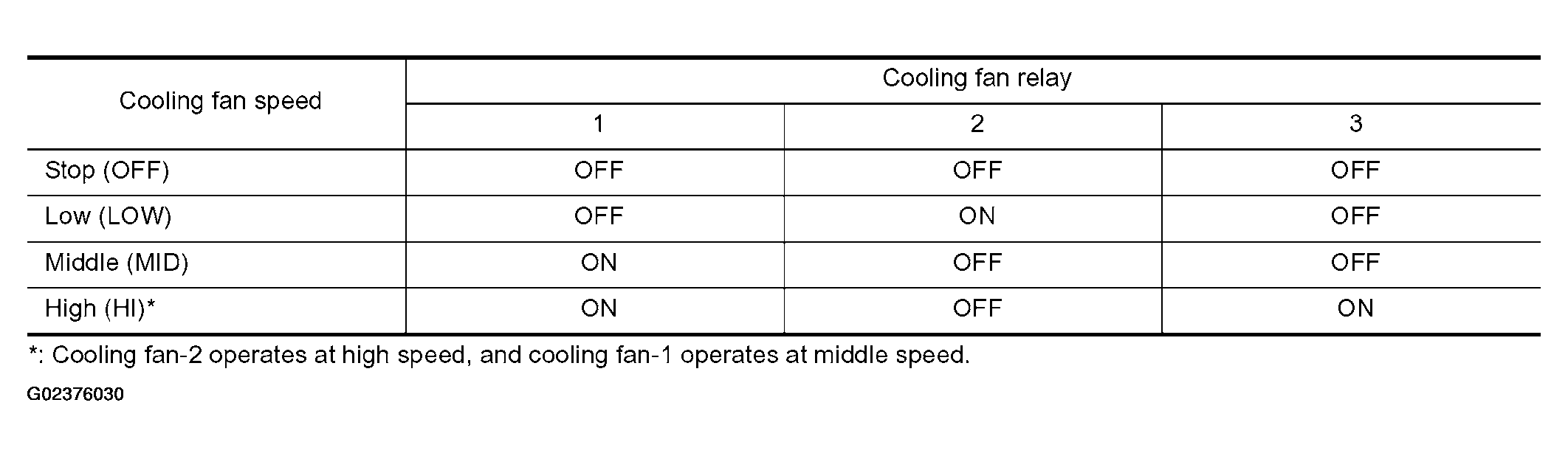

Fig 1: Cooling Fan Relay Operation Chart

G02376030

Courtesy of NISSAN MOTOR CO., U.S.A.
