On Board Diagnosis Logic

These self-diagnoses have the one trip detection logic.

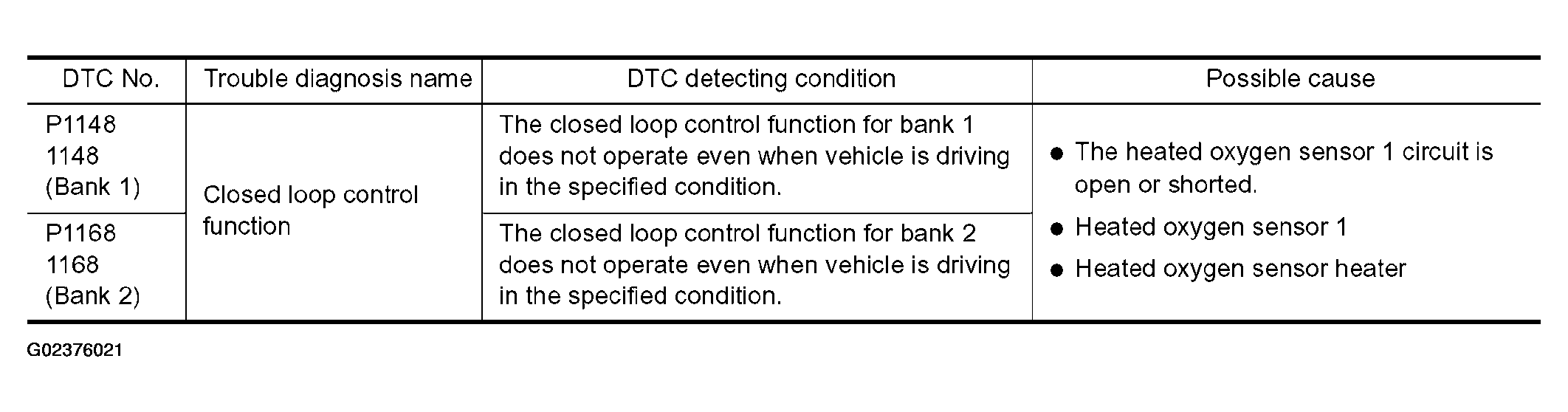

Fig 1: DTC - Trouble Detection Chart

G02376021

Courtesy of NISSAN MOTOR CO., U.S.A.
