On Board Diagnosis Logic

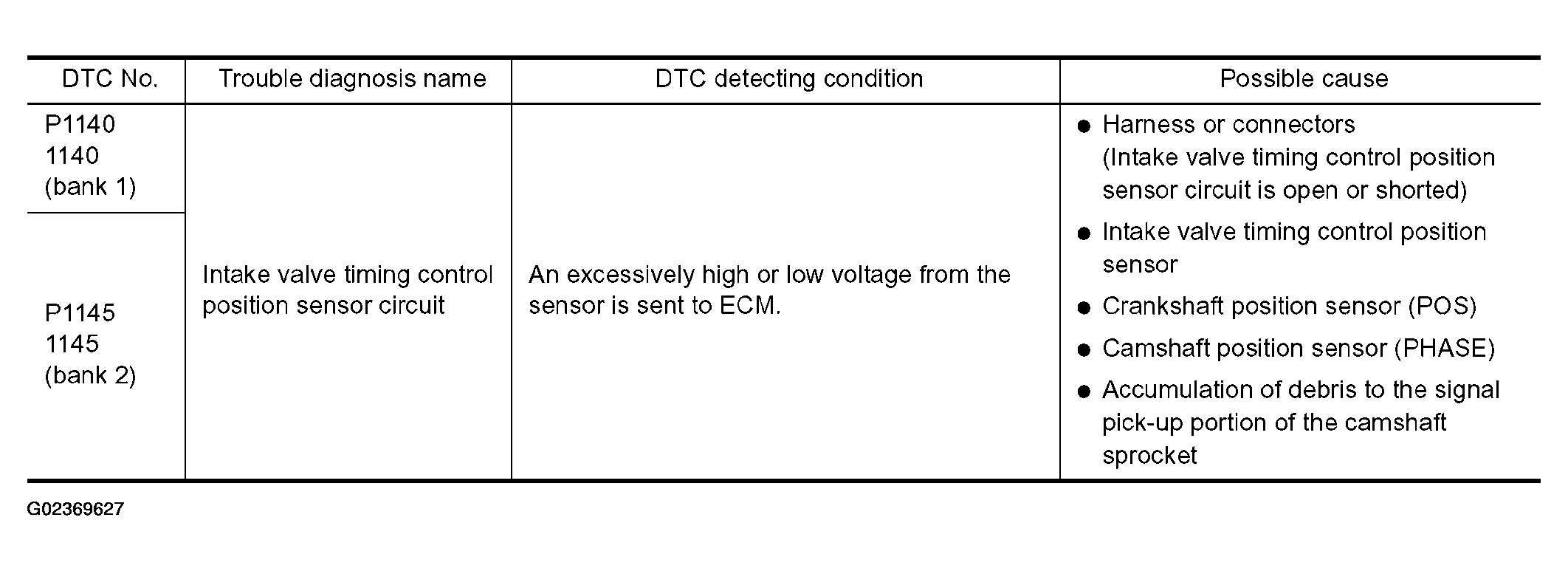

Fig 1: DTC - Trouble Detection Chart

G02369627

Courtesy of NISSAN MOTOR CO., U.S.A.
