On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

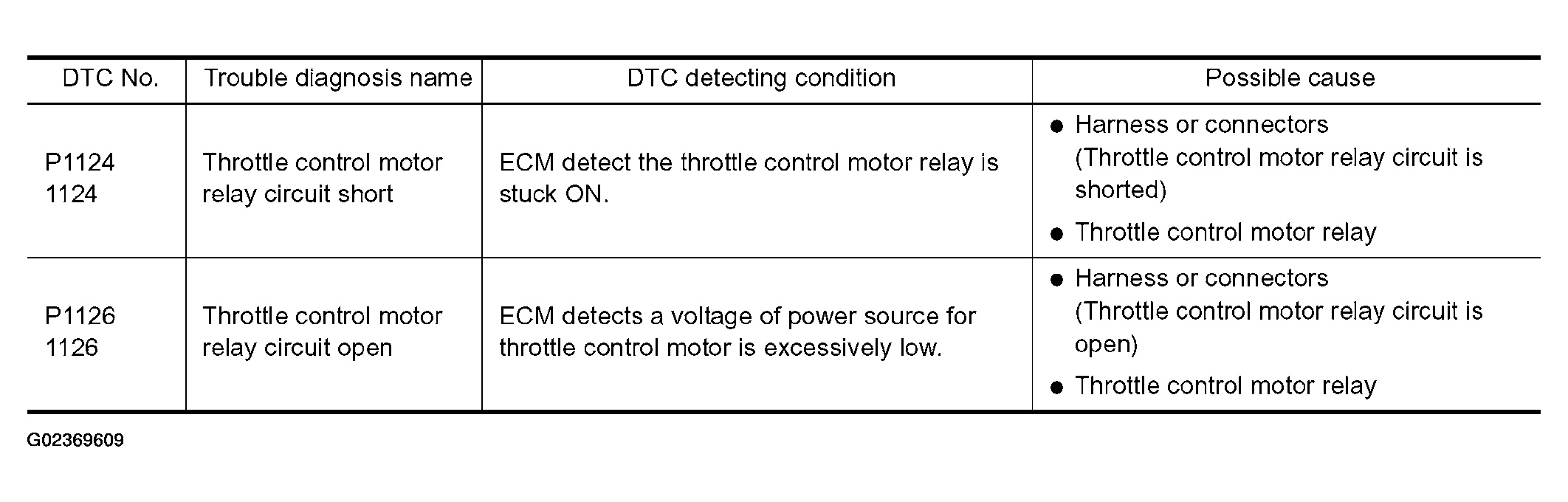

Fig 1: DTC Detecting Condition
G02369609Courtesy of NISSAN MOTOR CO., U.S.A.
