Terminals and Reference Values for Rear Power Seat Control Unit

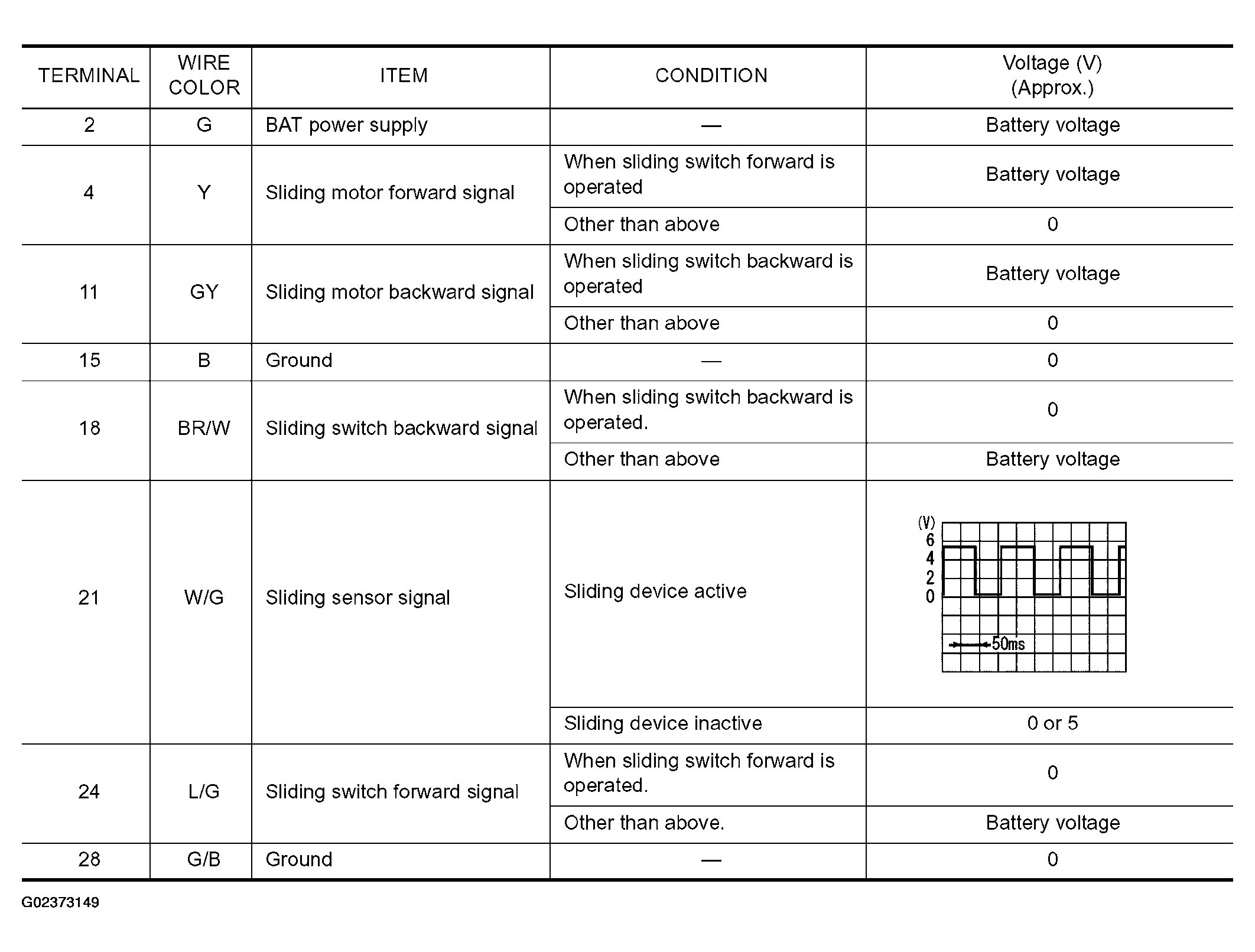

Fig 1: Terminals And Reference Values Chart For Rear Power Seat Control Unit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

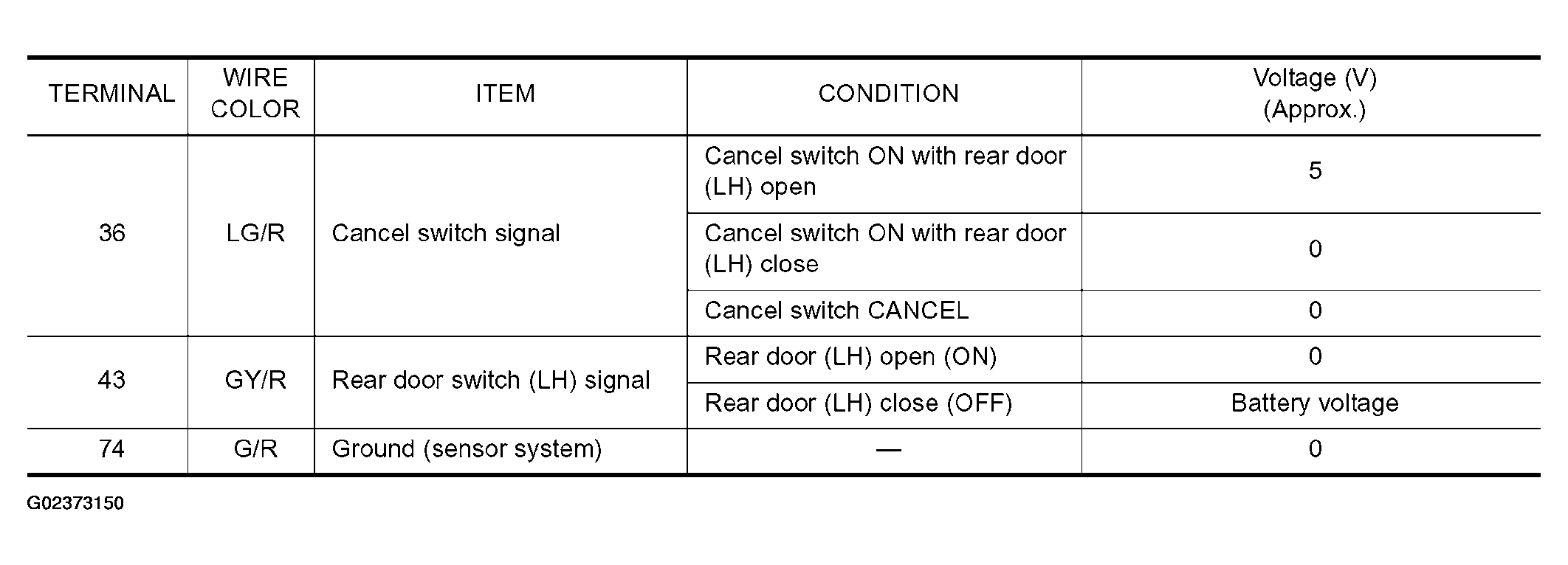

Fig 2: Terminals And Reference Values Chart For Rear Power Seat Control Unit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
