Active Test: Notes

CAUTION:
  • Do not perform the active test while driving.
  • Active test cannot be started while ICC system warning indicator illuminates.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen. Refer to "CONSULT-II BASIC OPERATION "
  2. Touch any of "ICC BUZZER 1", "METER LAMP", "STOP LAMP" and "BOOSTER SOL/V 3" on selection screen.
  3. Touch necessary item and "START".
  4. Active test screen will be shown.

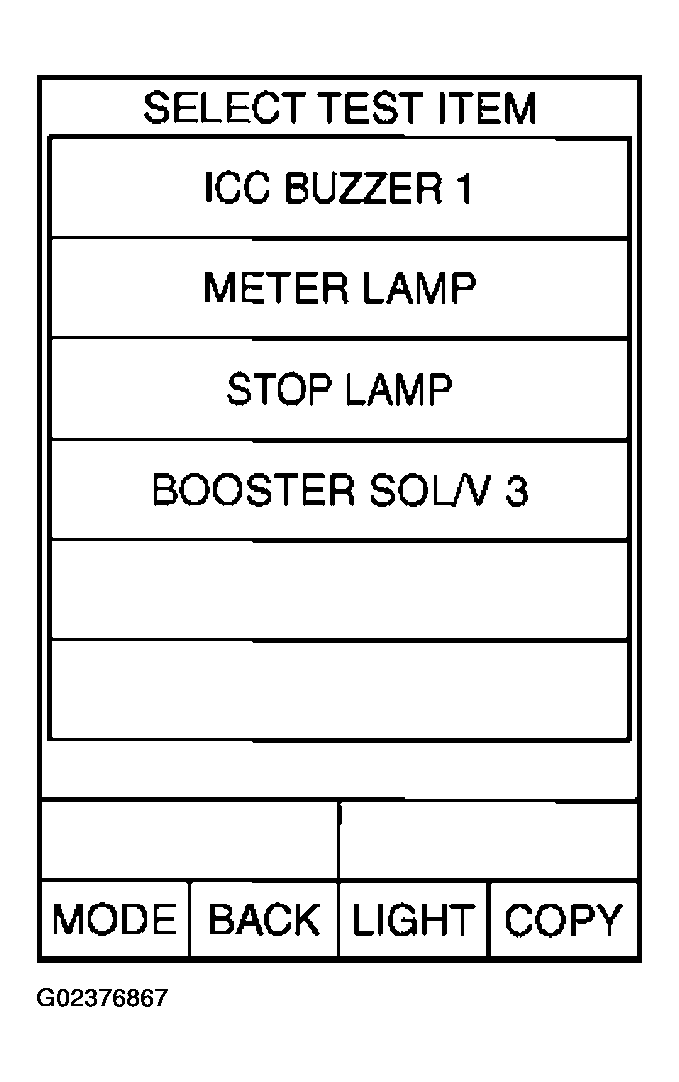

    Fig 1: CONSULT-II Diagnosis Function Display (6 Of 10)
    G02376867Courtesy of NISSAN MOTOR CO., U.S.A.
