Terminals and Reference Value for Driver Door Control Unit

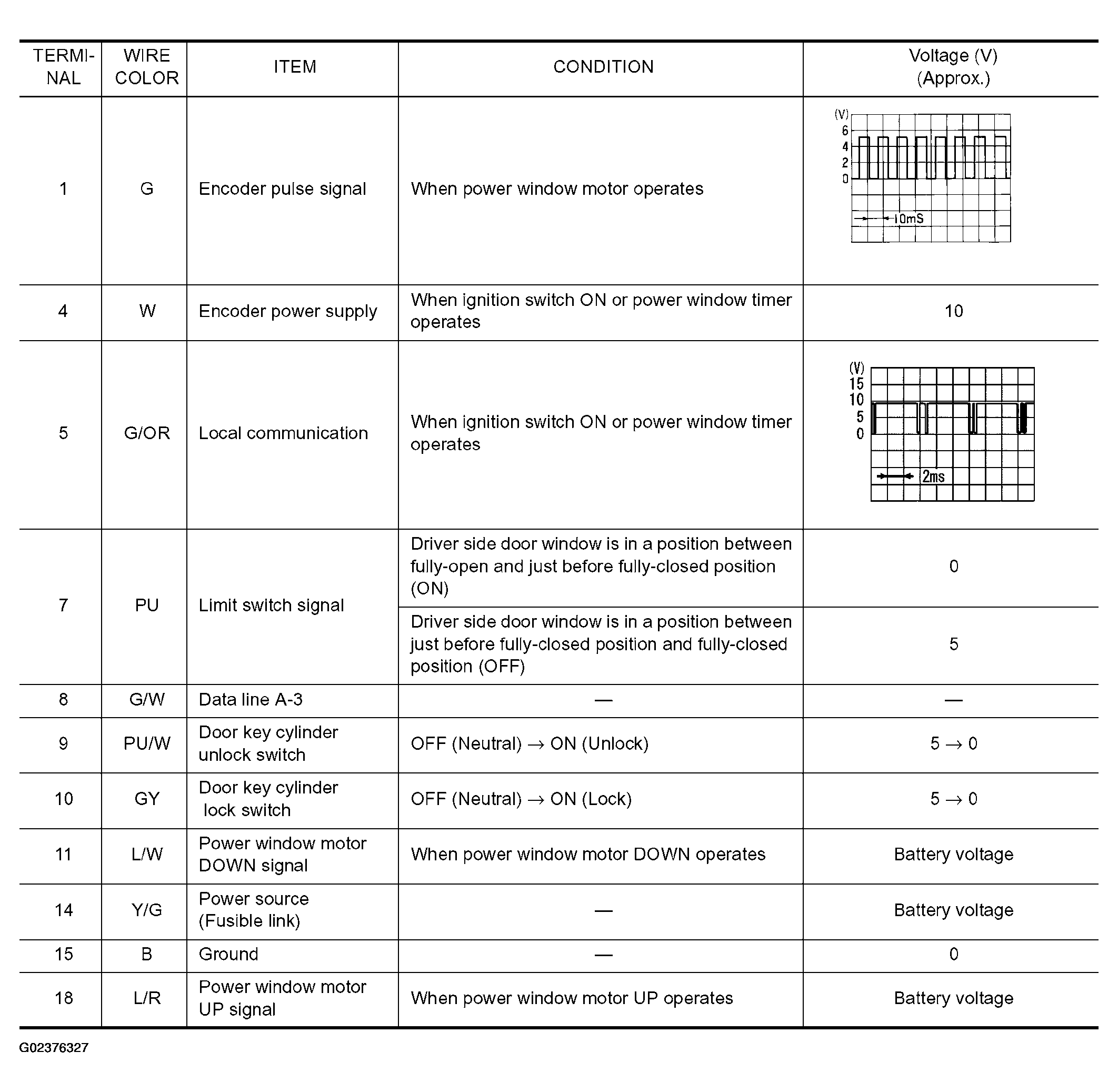

Fig 1: Driver Door Control Unit And Terminals Reference Value Chart

G02376327

Courtesy of NISSAN MOTOR CO., U.S.A.
