Monitored Item

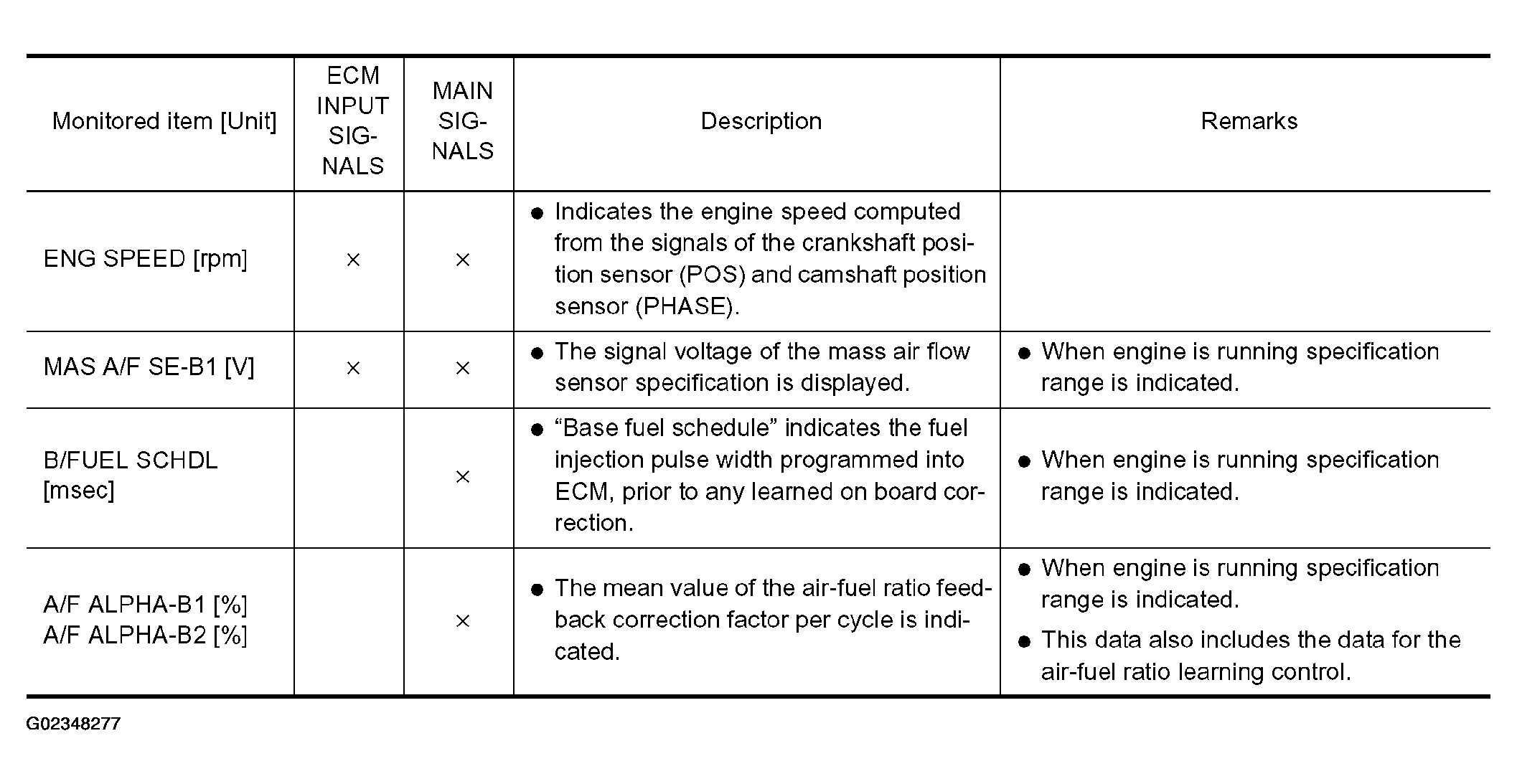

Fig 1: Data Monitor (SPEC) Mode Monitored Item

G02348277

Courtesy of NISSAN MOTOR CO., U.S.A.
