DTC WORK SUPPORT Mode

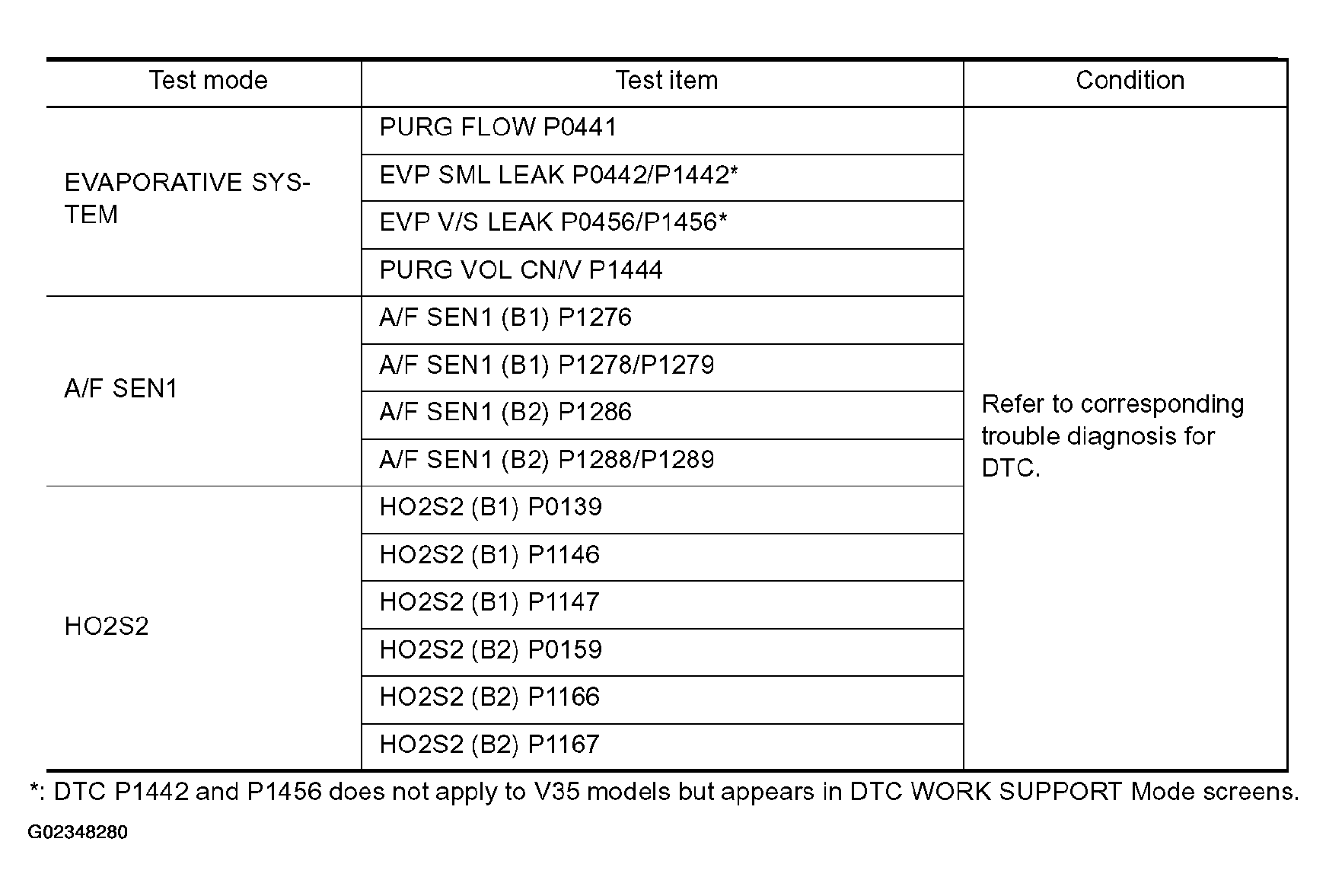

Fig 1: DTC WORK SUPPORT Mode Table

G02348280

Courtesy of NISSAN MOTOR CO., U.S.A.
