DTC P0181: FTT Sensor: Wiring Diagram

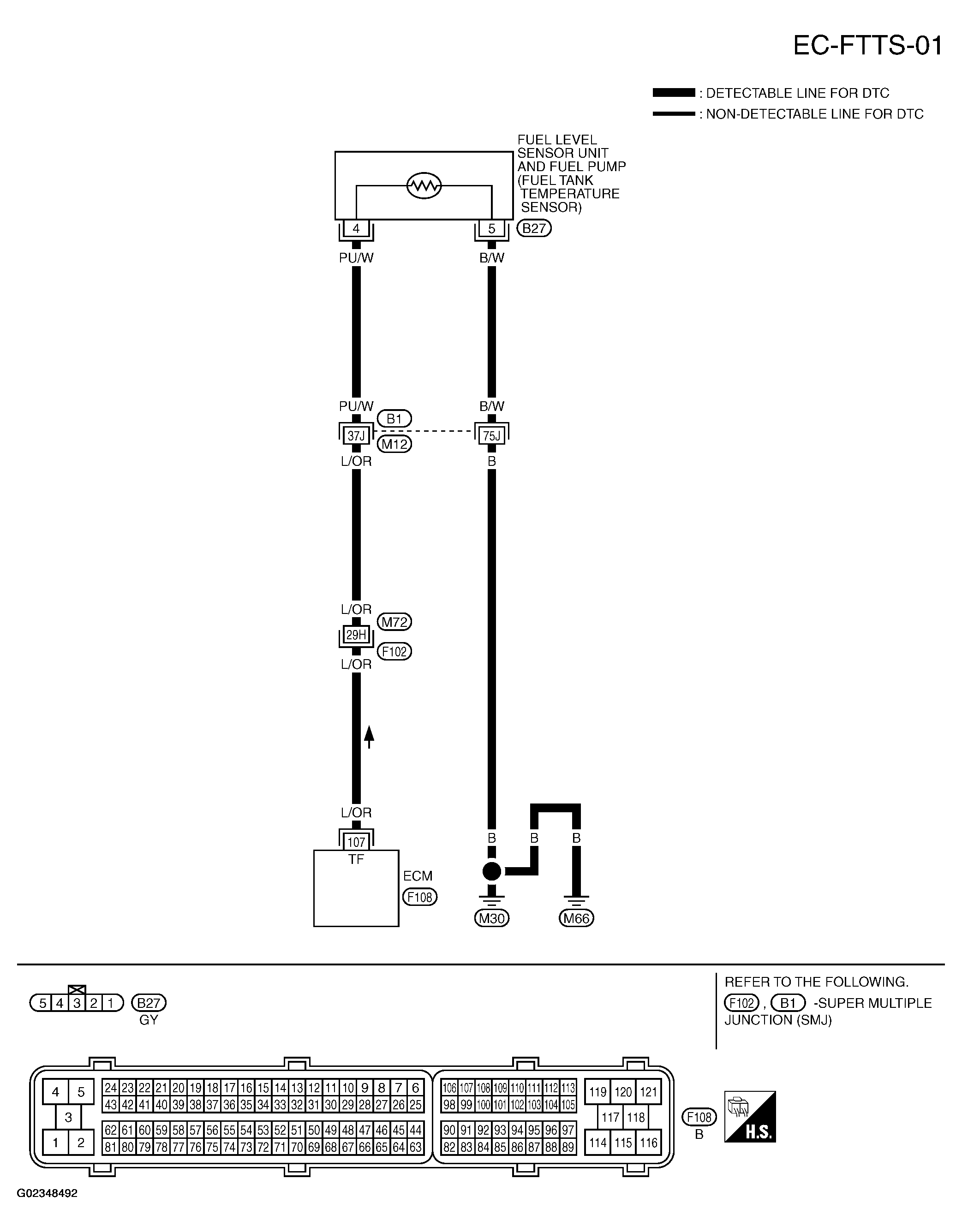

Fig 1: Wiring Diagram - EC-FTTS-01

G02348492

Courtesy of NISSAN MOTOR CO., U.S.A.
