On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

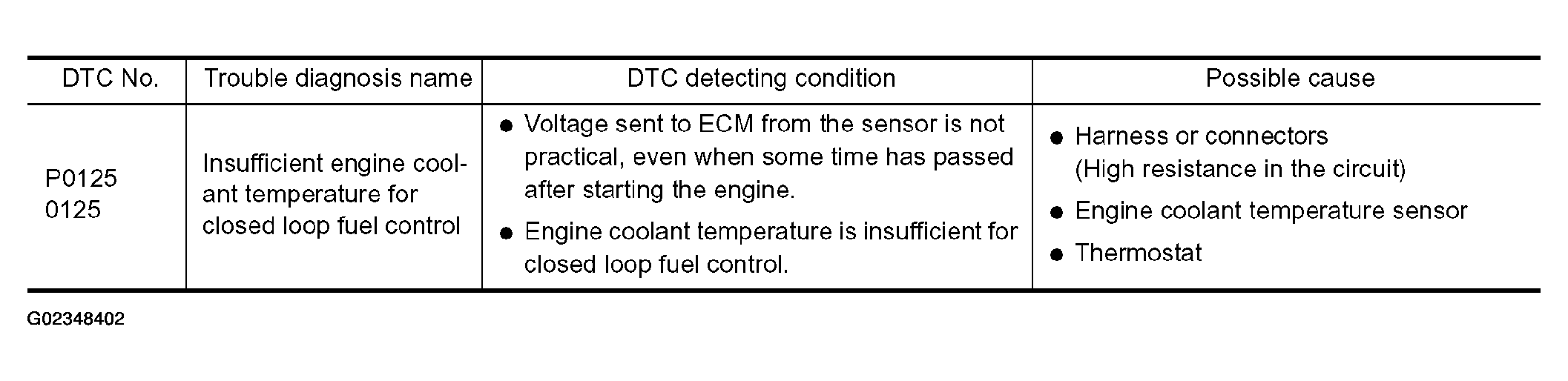

Fig 1: DTC P0125 ECT Sensor On Board Diagnosis Logic

G02348402

Courtesy of NISSAN MOTOR CO., U.S.A.
