Home >> Infiniti >> 2005 >> G35 x >> Repair and Diagnosis >> Engine Performance >> Engine Control System - Sedan >> DTC P0011, P0021: IVT Control >> On Board Diagnosis Logic >> Notes

On Board Diagnosis Logic: Notes

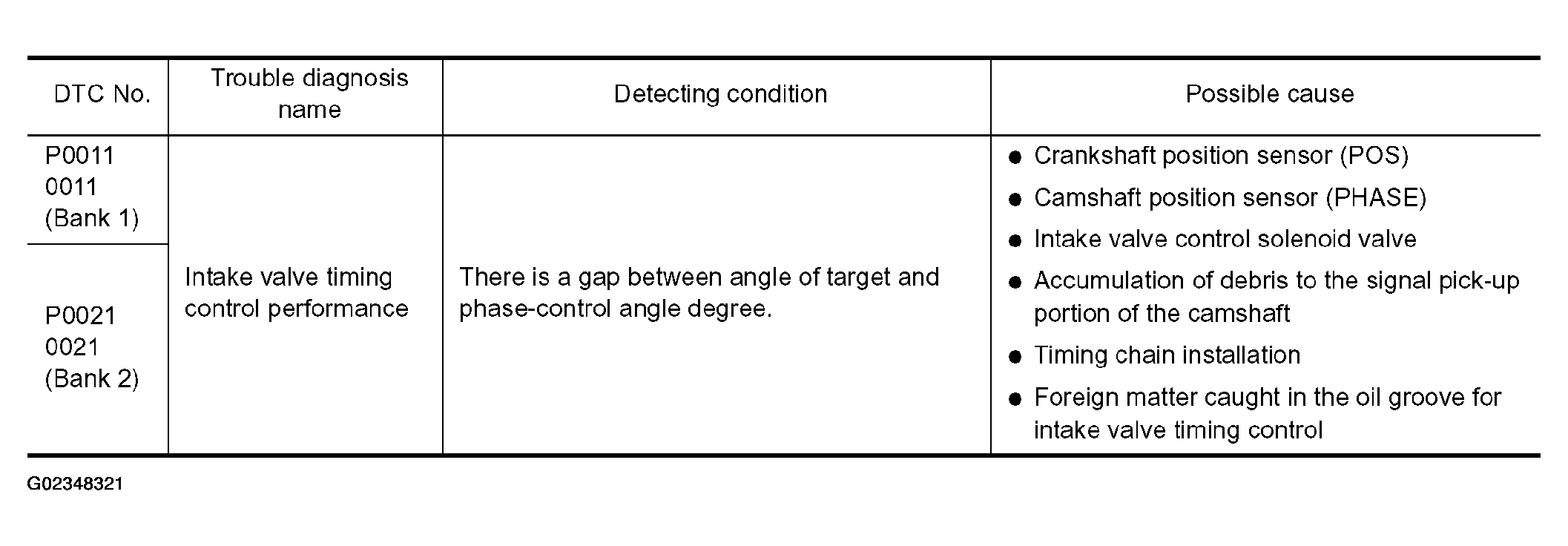

Fig 1: On Board Diagnosis Logic Table

G02348321

Courtesy of NISSAN MOTOR CO., U.S.A.
