Terminal And Reference Value For Power Window Sub-Switch (Rear LH Or RH)/ With Front And Rear Window Anti-Pinch System

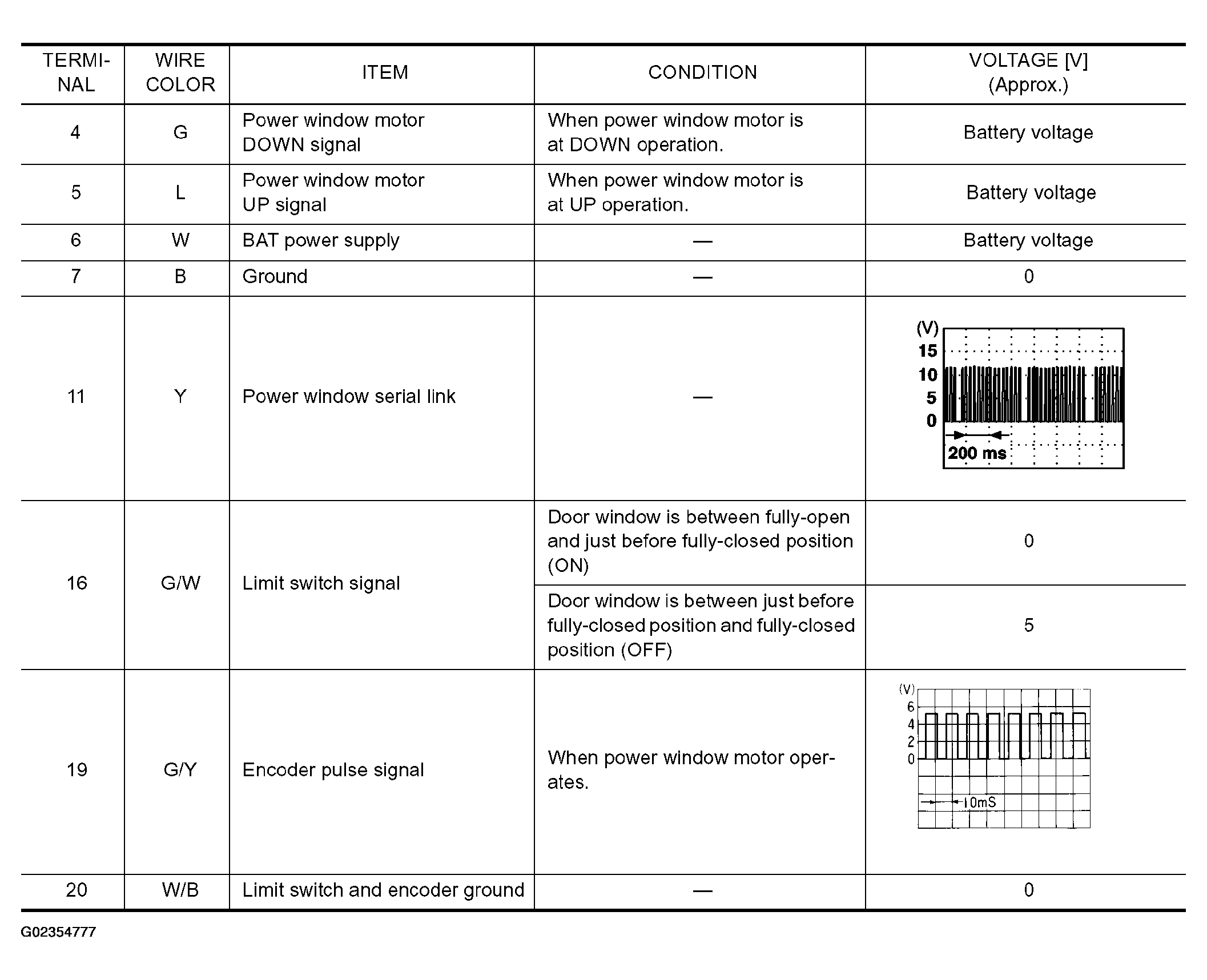

Fig 1: Terminal And Reference Value For Power Window Sub-Switch (Rear LH Or RH)
G02354777Courtesy of NISSAN MOTOR CO., U.S.A.
