Terminal And Reference Value For Power Window Sub-Switch (Front Passenger Side)/With Front And Rear Window Anti-Pinch System

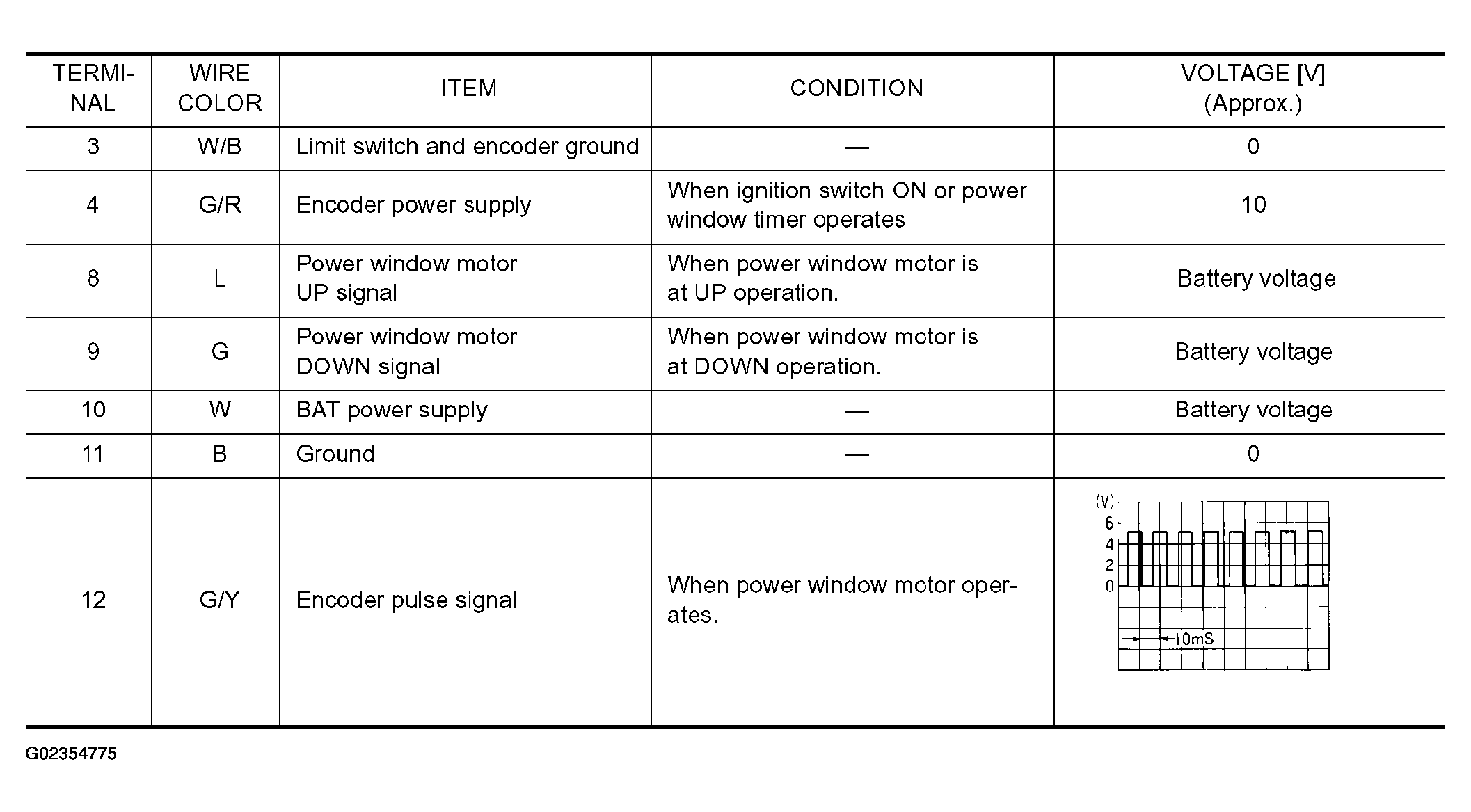

Fig 1: Terminal And Reference Value For Power Window Sub-Switch (Front Passenger Side) (1 Of 2)
G02354775Courtesy of NISSAN MOTOR CO., U.S.A.

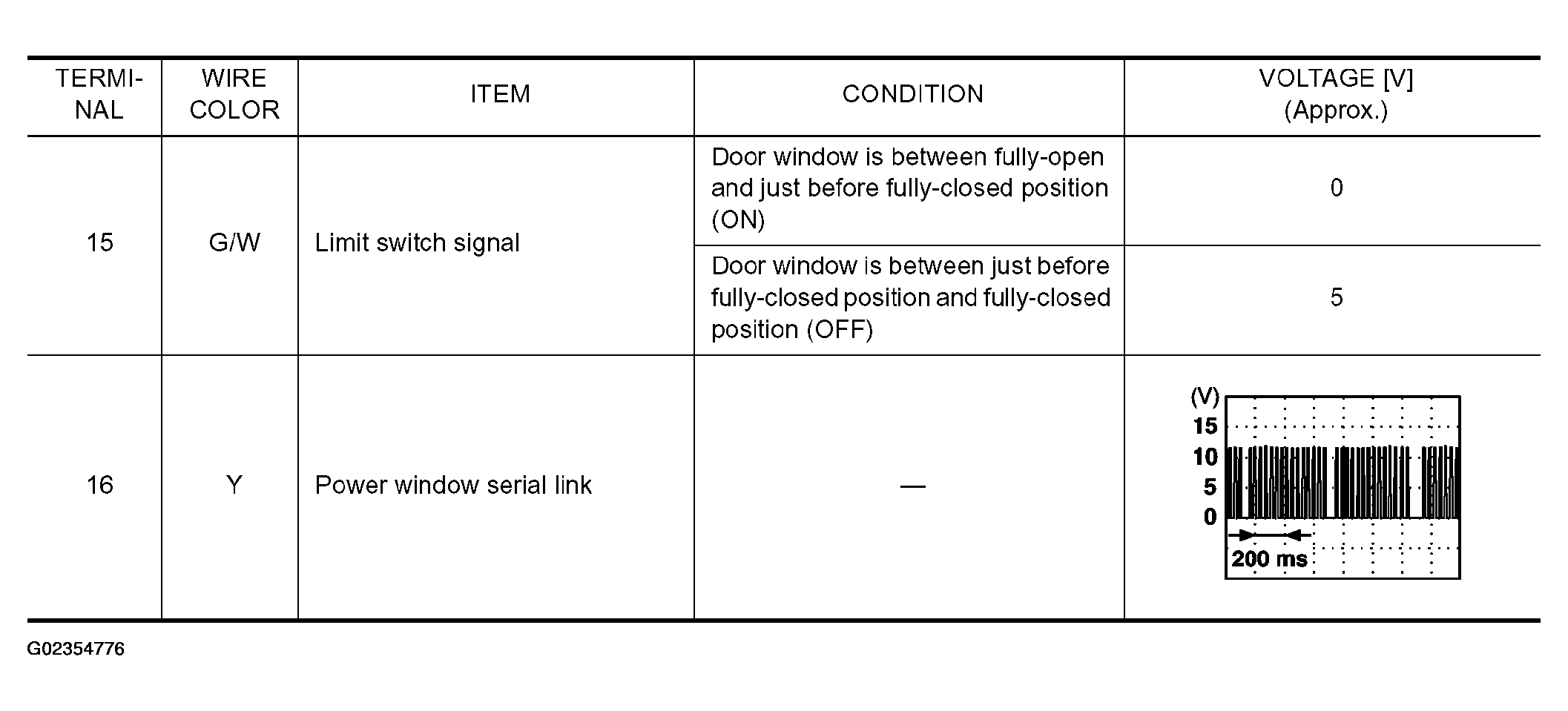

Fig 2: Terminal And Reference Value For Power Window Sub-Switch (Front Passenger Side) (2 Of 2)
G02354776Courtesy of NISSAN MOTOR CO., U.S.A.
