Terminal And Reference Value For BCM/With Front And Rear Power Window Anti-Pinch

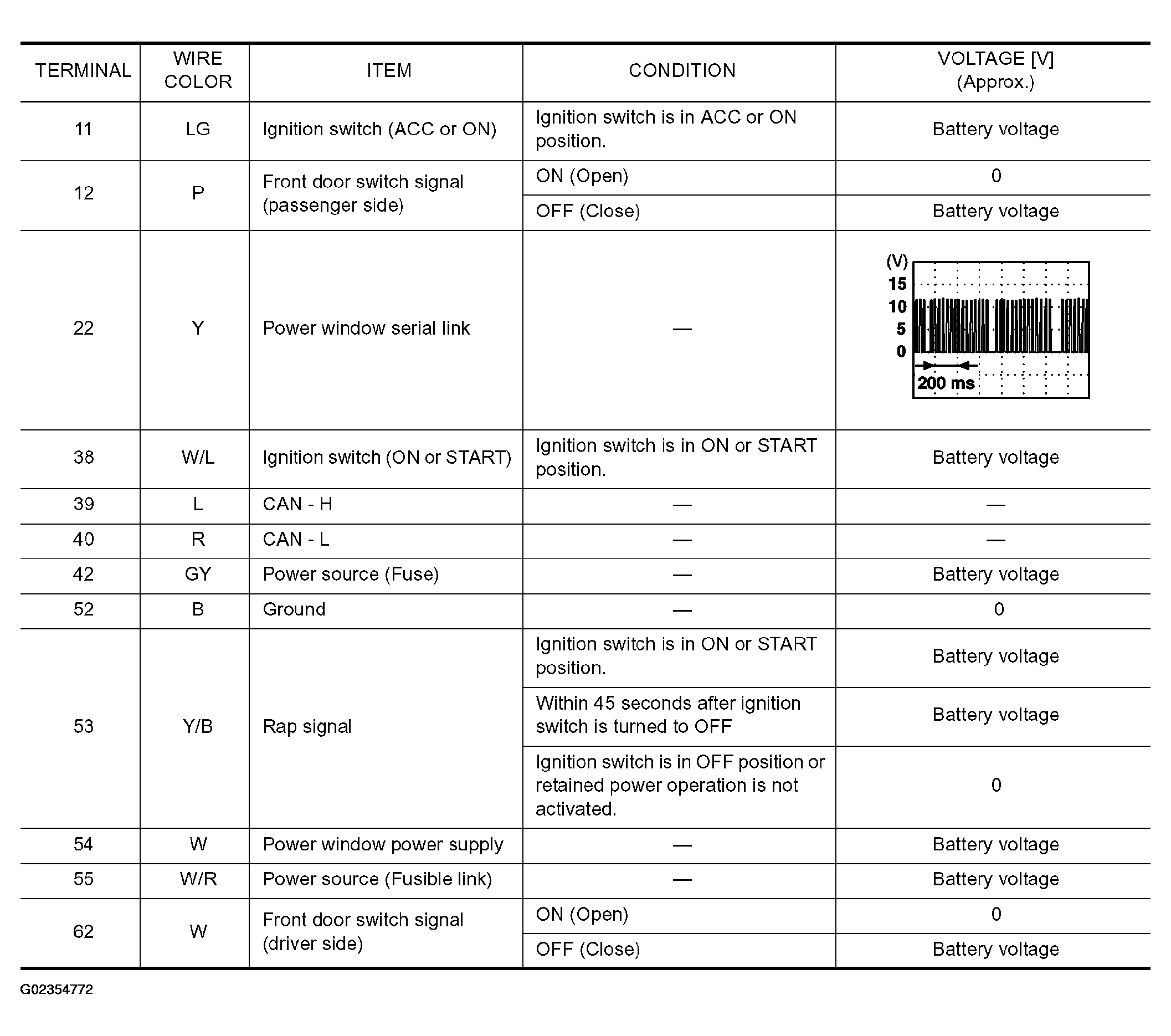

Fig 1: Terminal And Reference Value For BCM Table

G02354772

Courtesy of NISSAN MOTOR CO., U.S.A.
