CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

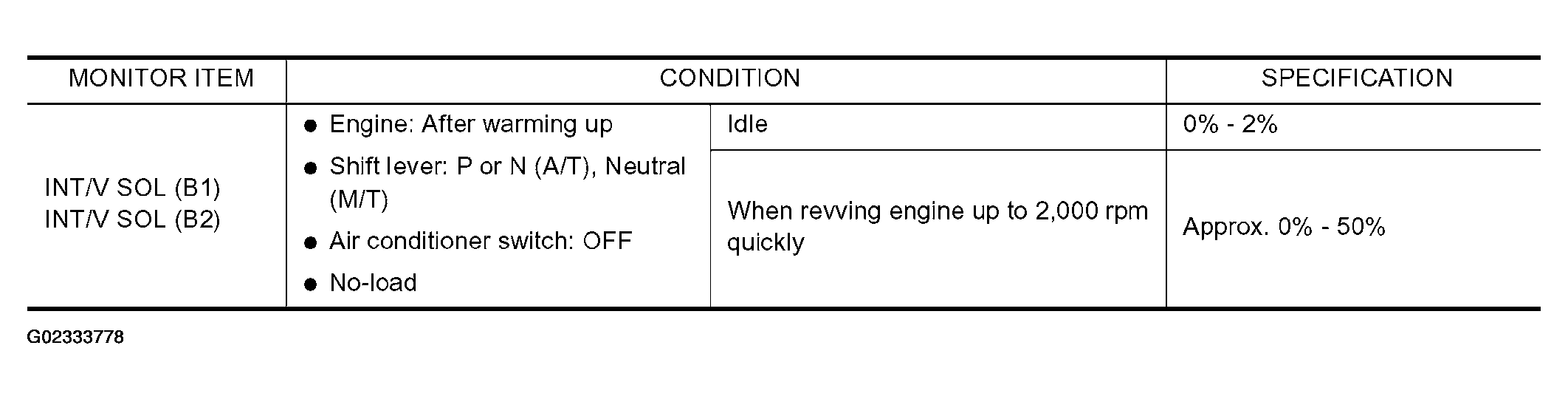

Fig 1: IVT Control Solenoid Valve Reference Value Chart (DTC P1111, P1136)

G02333778

Courtesy of NISSAN MOTOR CO., U.S.A.
