On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

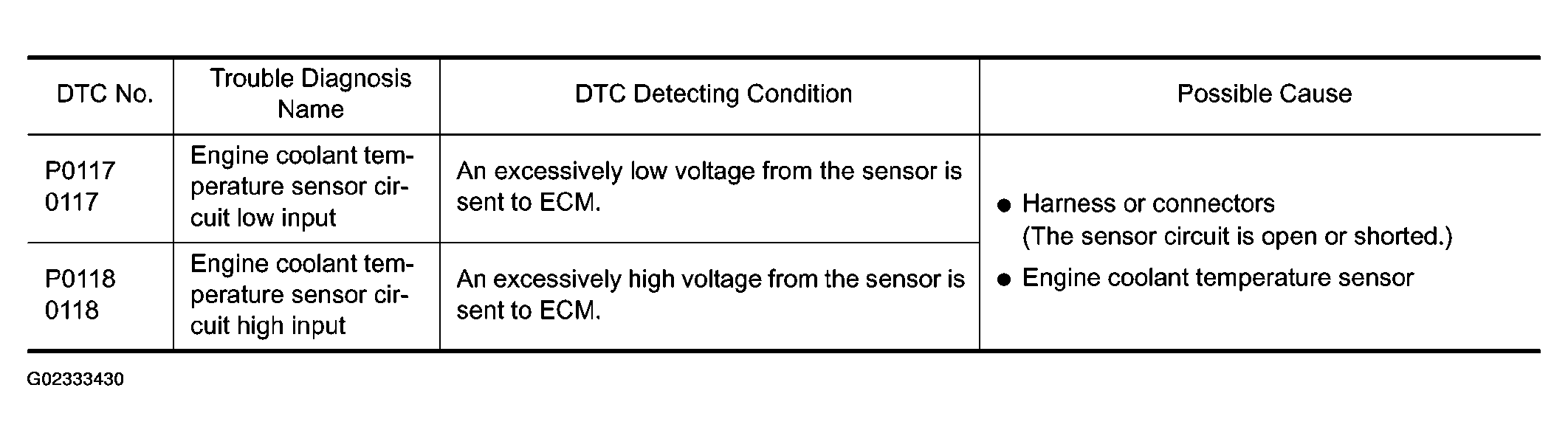

Fig 1: On Board Diagnosis Logic Chart (DTC P0117 & P0118)

G02333430

Courtesy of NISSAN MOTOR CO., U.S.A.
