Overall Sequence

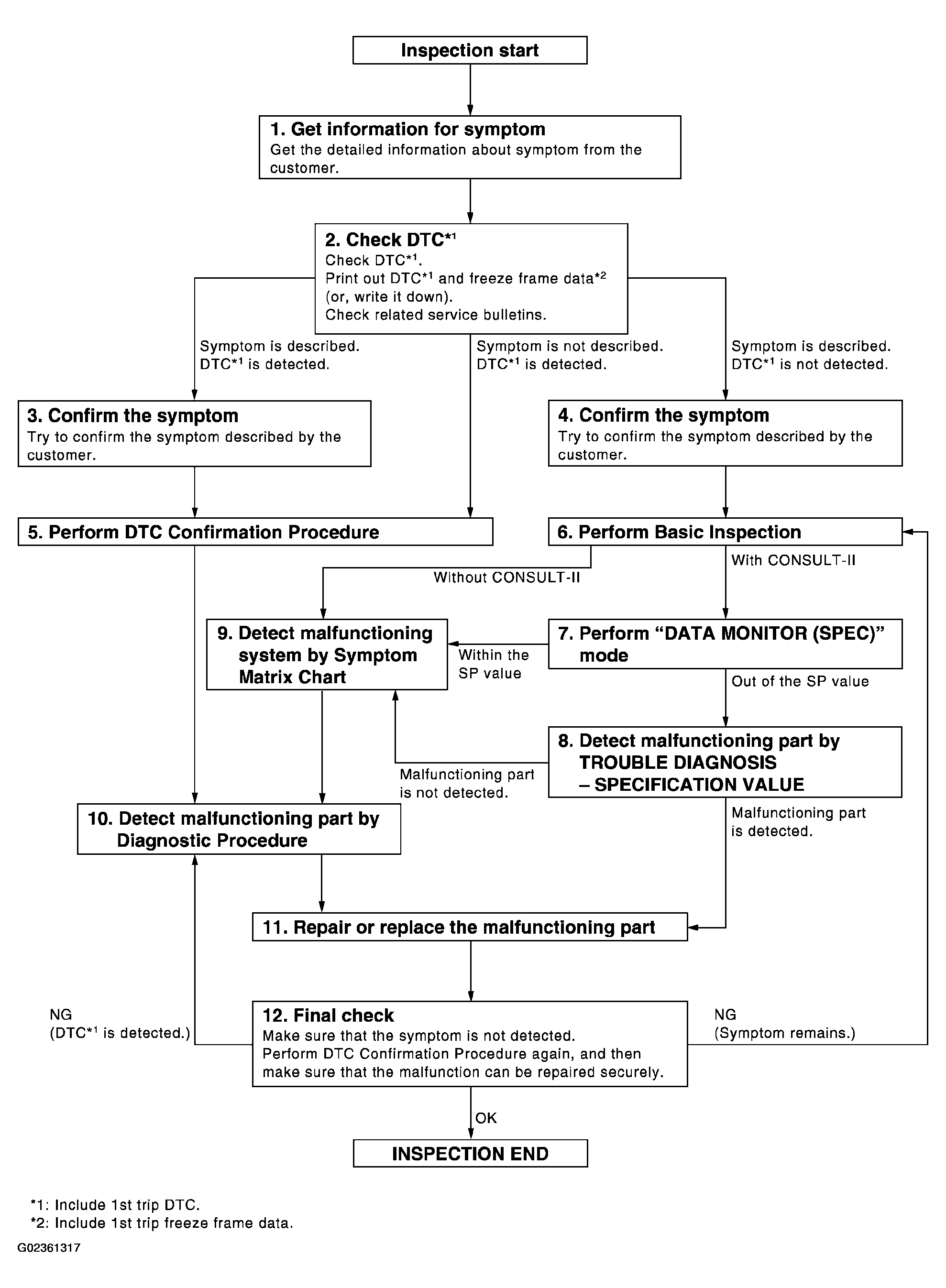

Fig 1: Work Flow - Trouble Diagnosis

G02361317

Courtesy of NISSAN MOTOR CO., U.S.A.
