Mil And Data Link Connector: Wiring Diagram

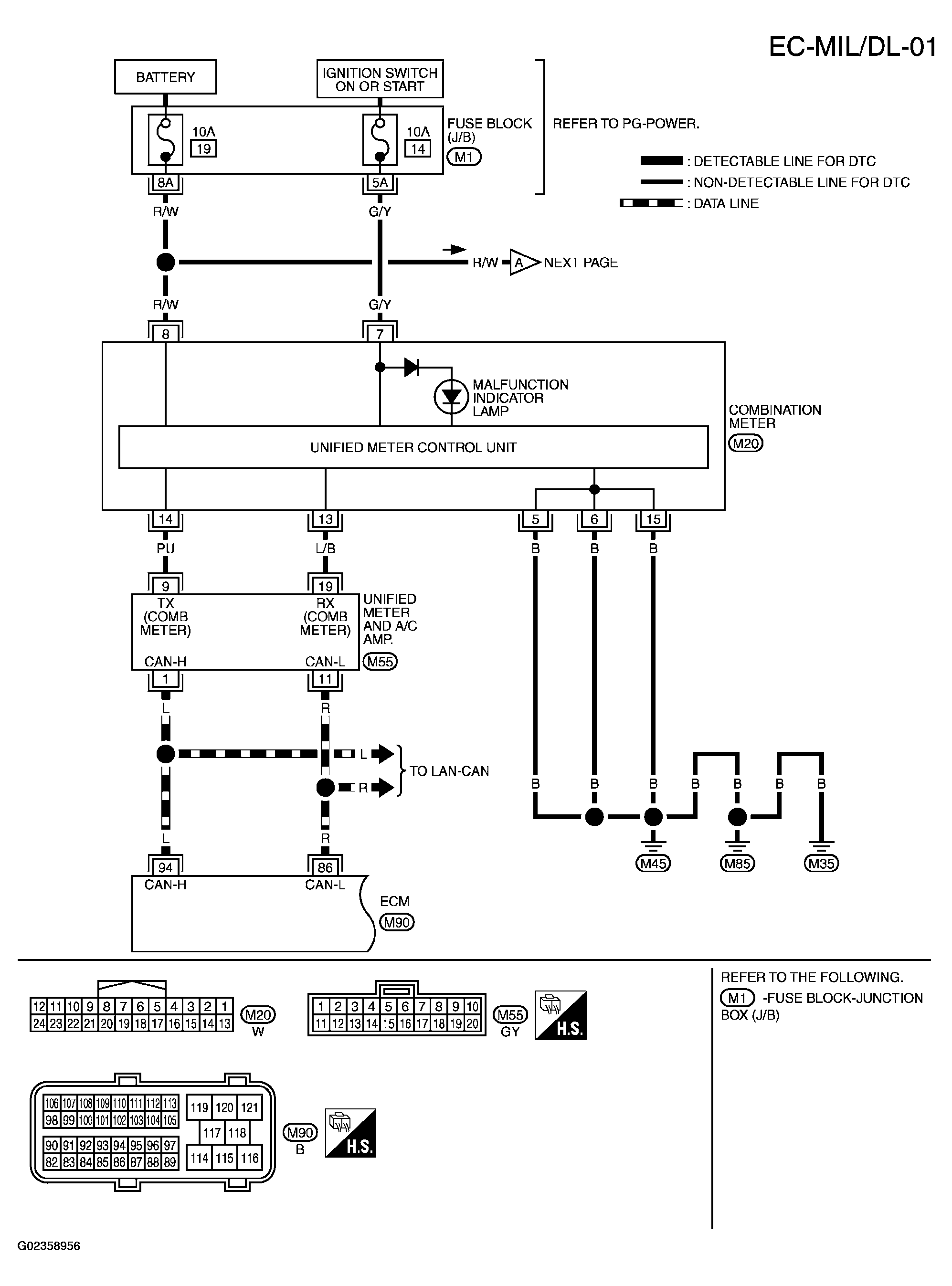

Fig 1: Wiring Diagram EC-MIL/DL-01

G02358956

Courtesy of NISSAN MOTOR CO., U.S.A.

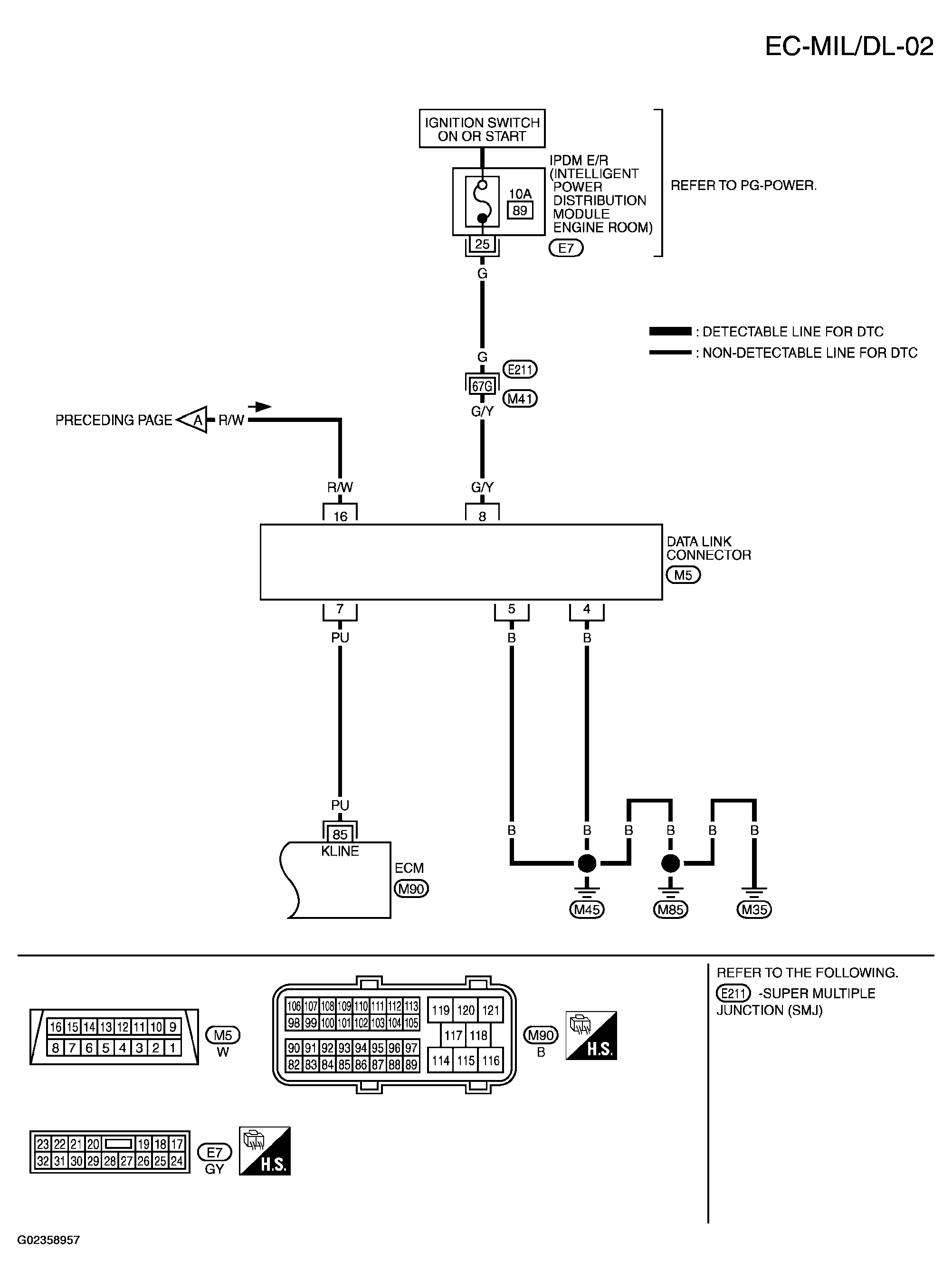

Fig 2: Wiring Diagram EC-MIL/DL-02

G02358957

Courtesy of NISSAN MOTOR CO., U.S.A.
