Component Description

ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

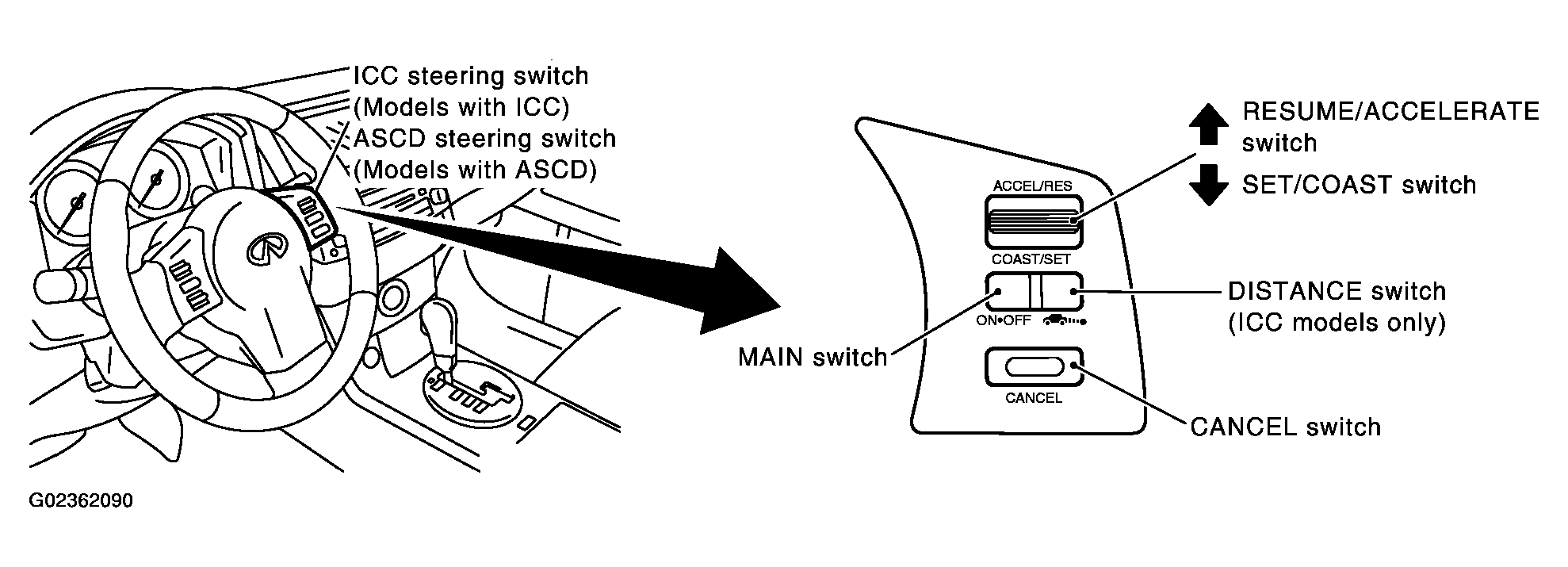

Fig 1: Identifying ICC Steering Switch Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "DESCRIPTION " for the ICC function.
