ASD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch terminals 14 and 15 with pushing each switch.

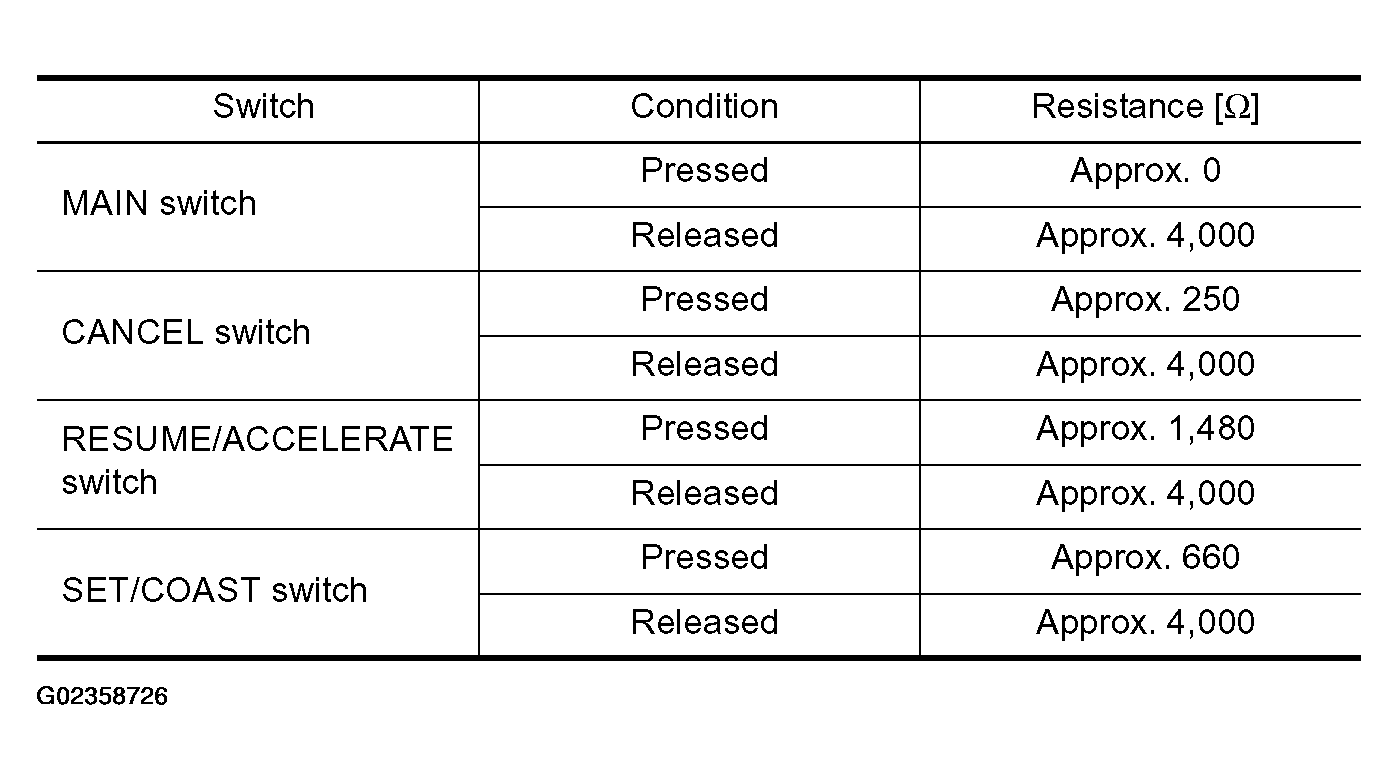

    Fig 1: Switch Condition And Resistance Chart
    G02358726Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Checking Continuity Between Combination Switch Terminals 14 And 15 With Pushing Each Switch
    G02358727Courtesy of NISSAN MOTOR CO., U.S.A.
