On Board Diagnosis Logic

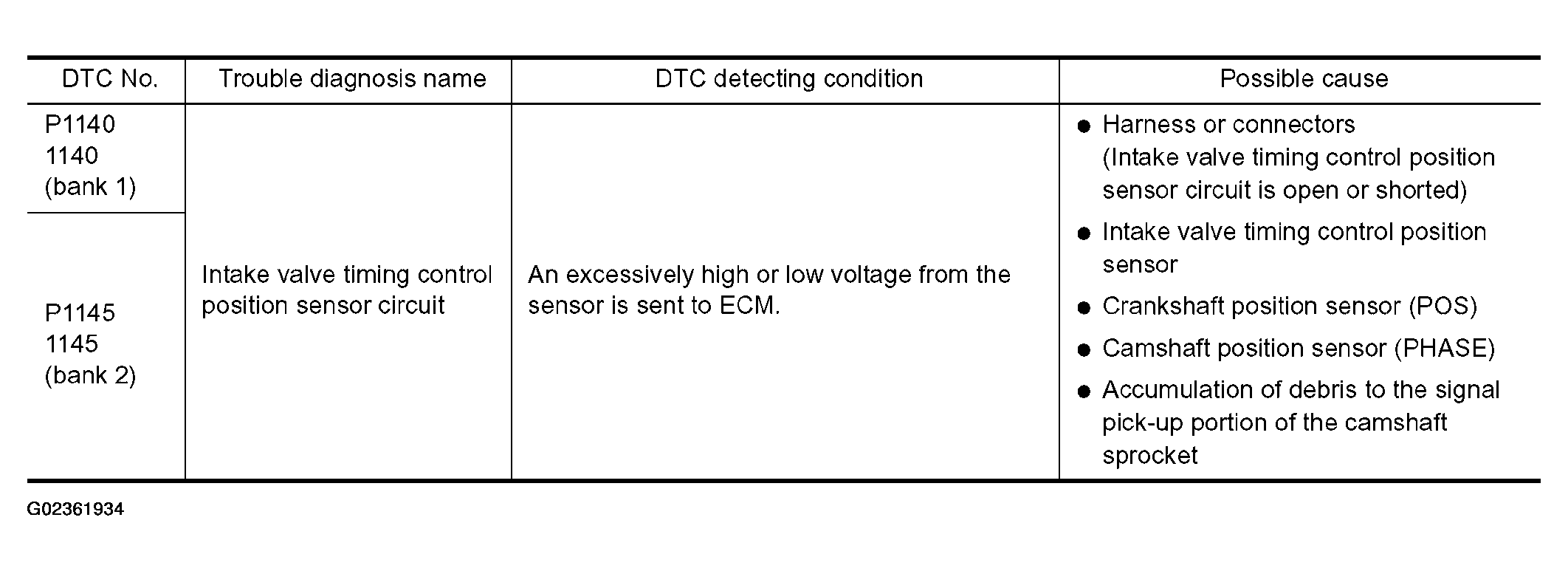

Fig 1: DTC Detecting Condition And Possible Cause Chart

G02361934

Courtesy of NISSAN MOTOR CO., U.S.A.
