Fail-Safe Mode

ECM enters fail-safe mode when the malfunction A is detected.

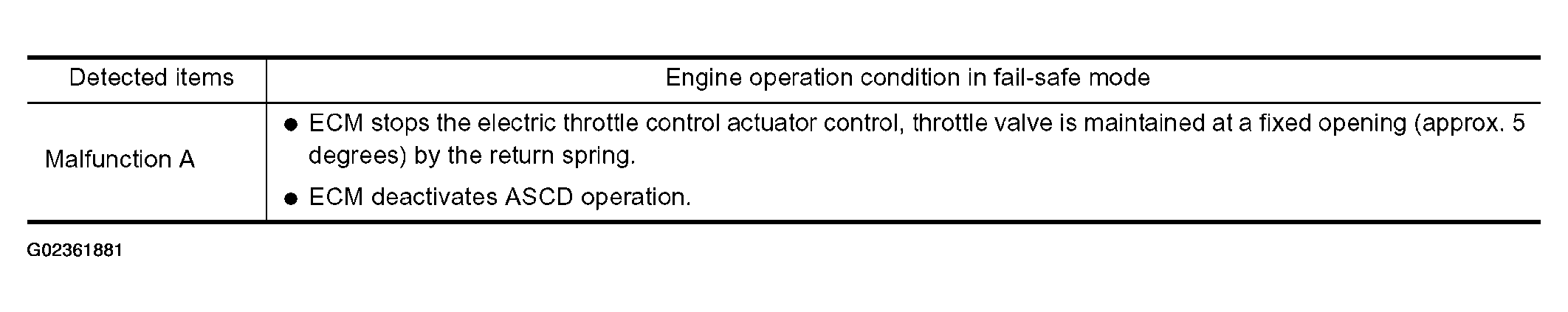

Fig 1: Fail-Safe Mode Description Chart

G02361881

Courtesy of NISSAN MOTOR CO., U.S.A.
