On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

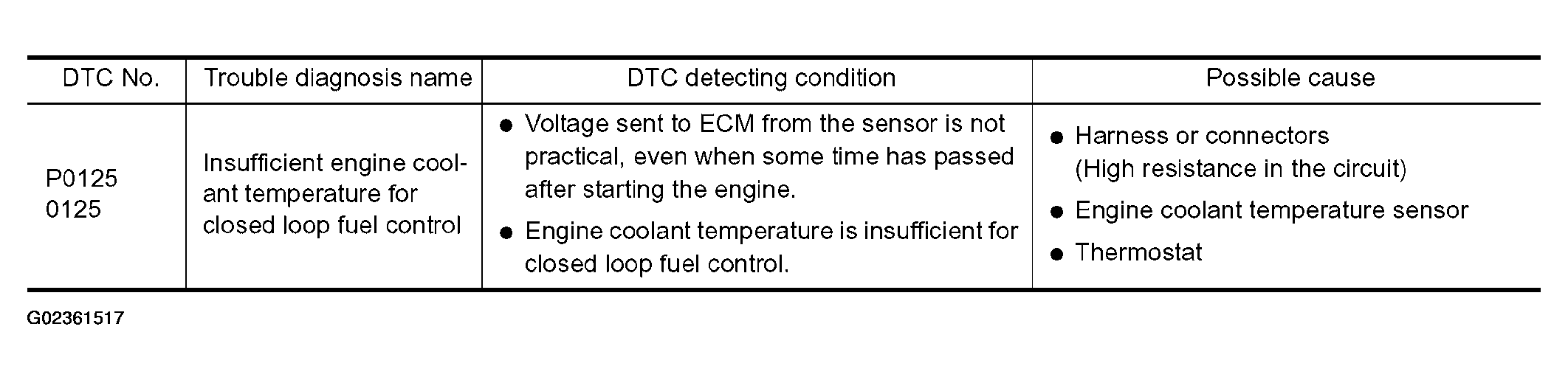

Fig 1: On Board Diagnosis Logic Reference

G02361517

Courtesy of NISSAN MOTOR CO., U.S.A.
