Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

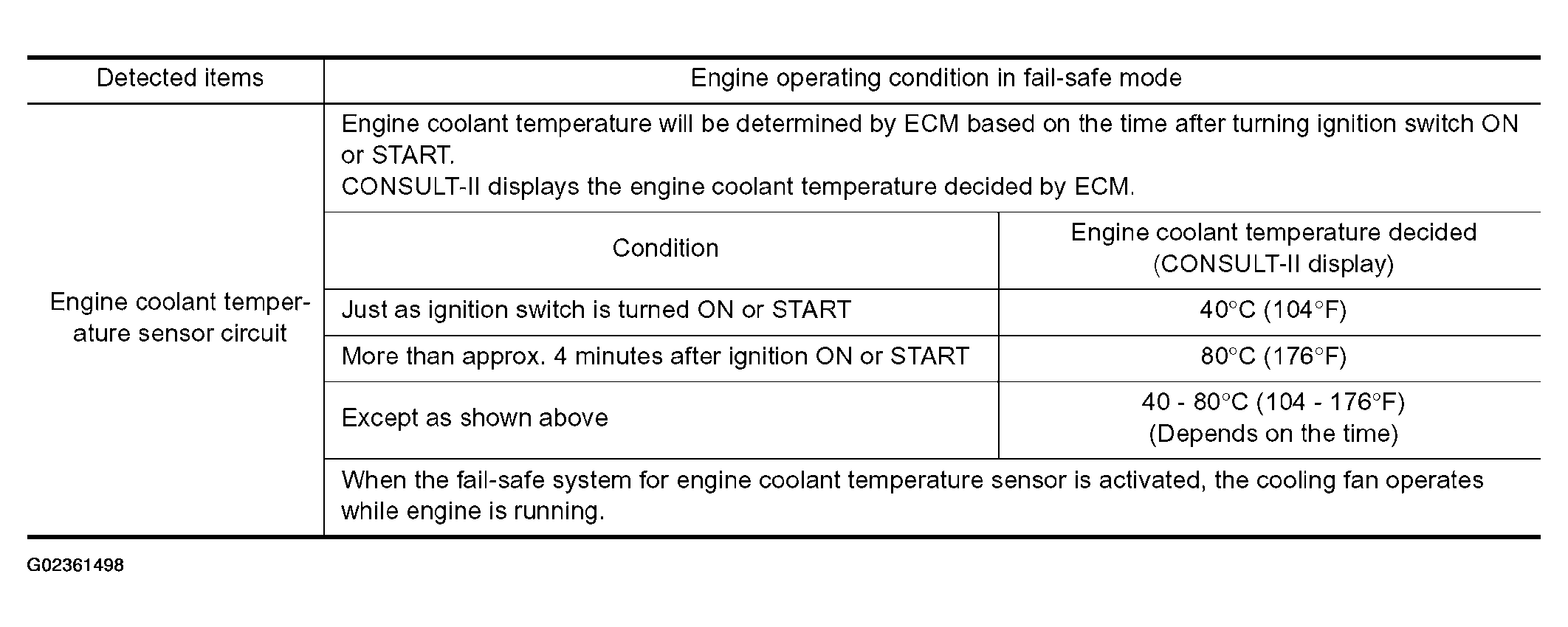

Fig 1: Fail-Safe Mode Description

G02361498

Courtesy of NISSAN MOTOR CO., U.S.A.
